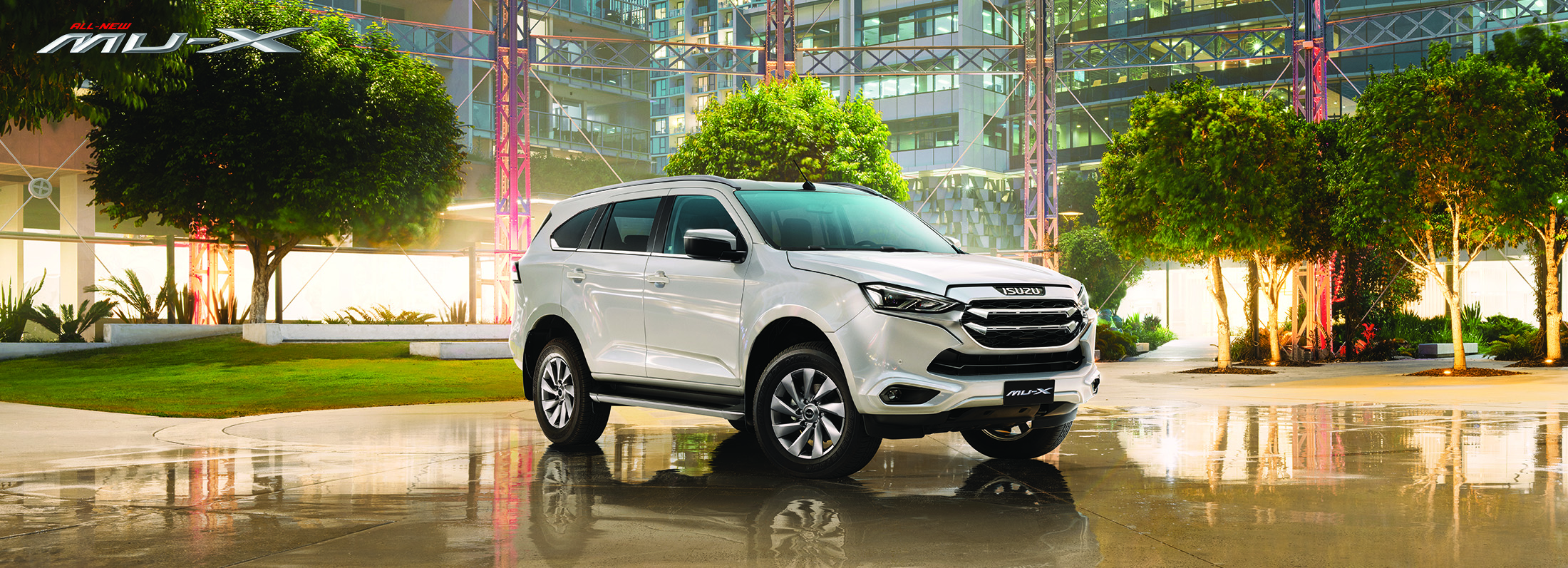

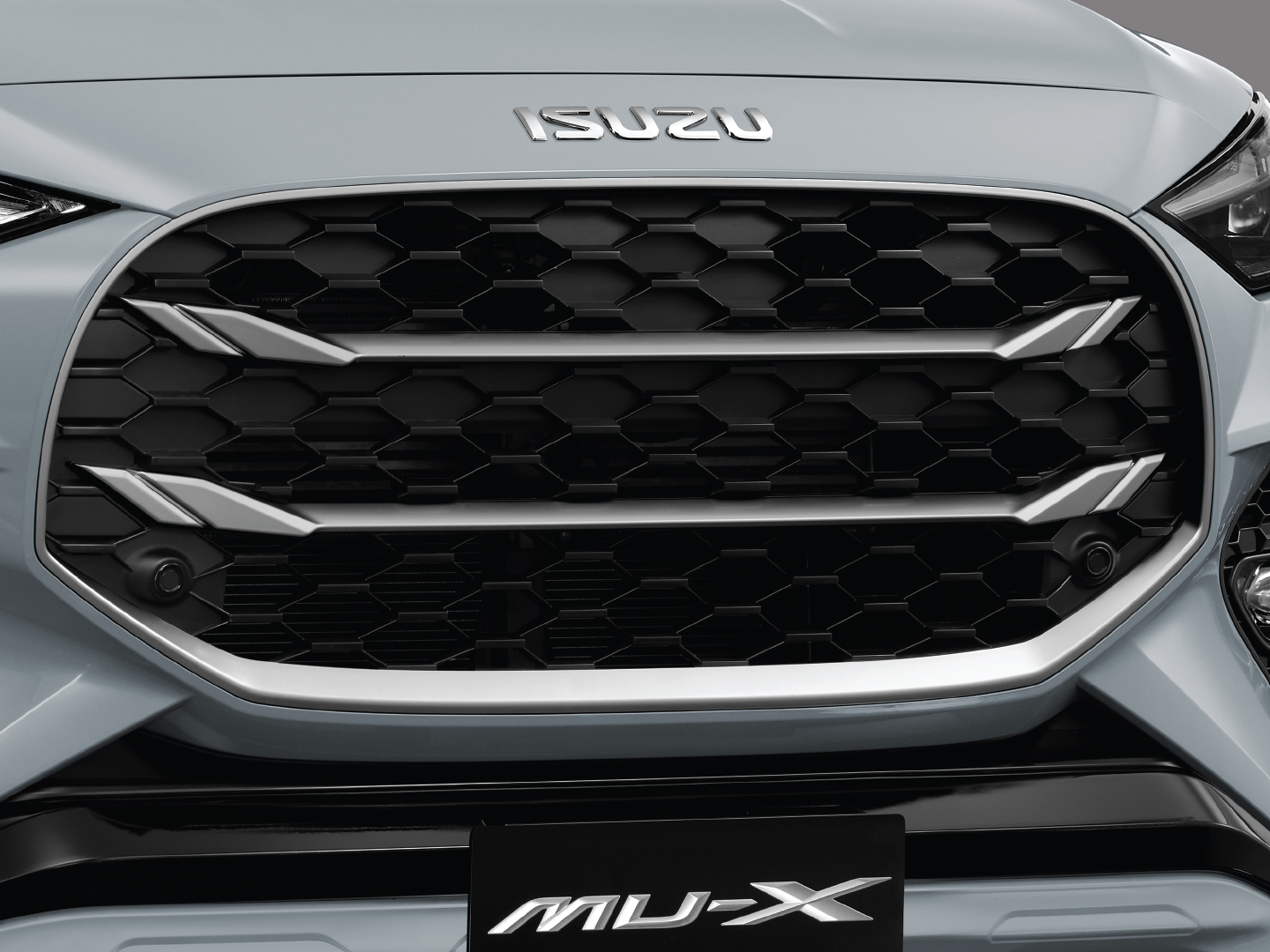

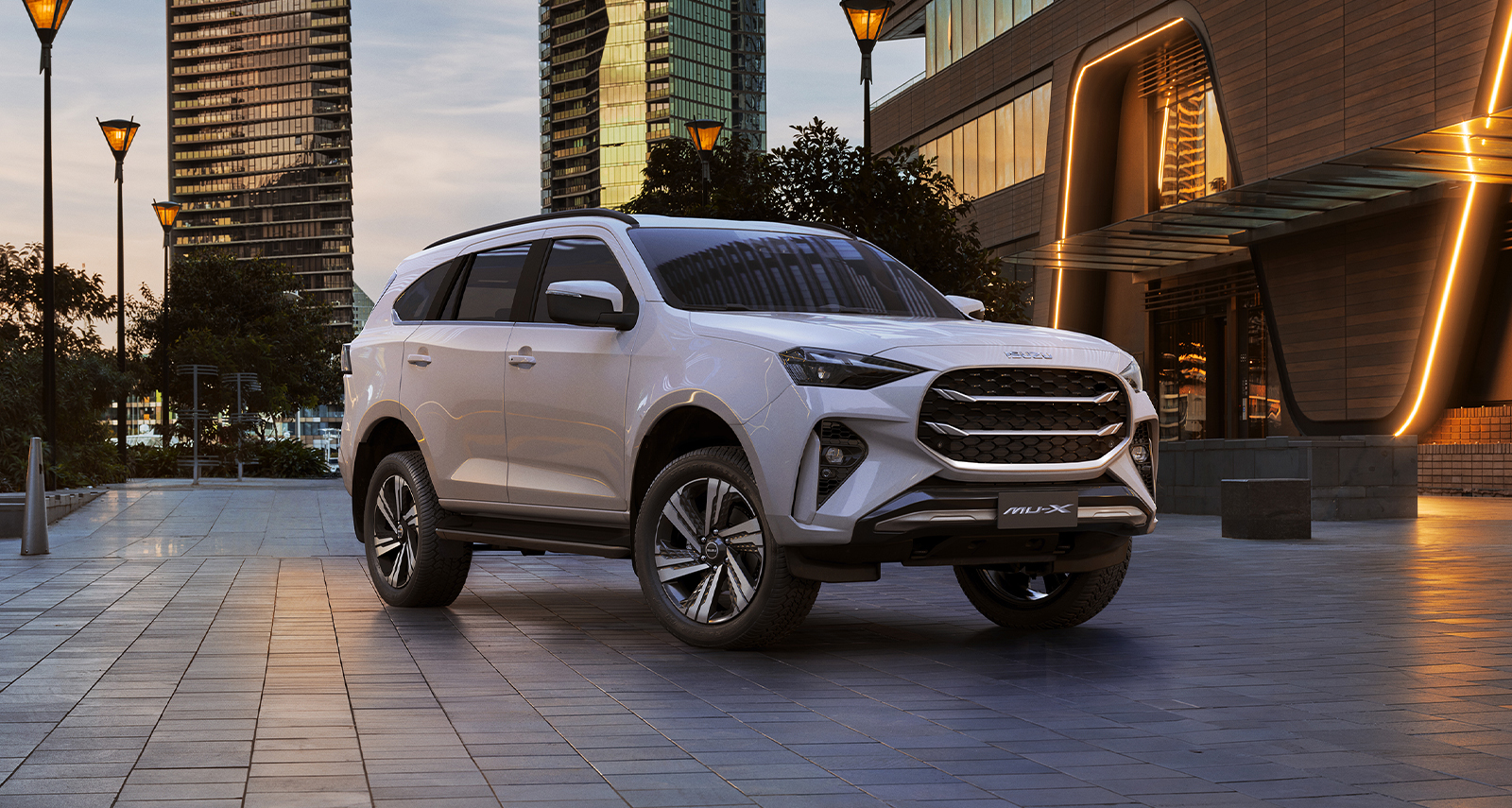

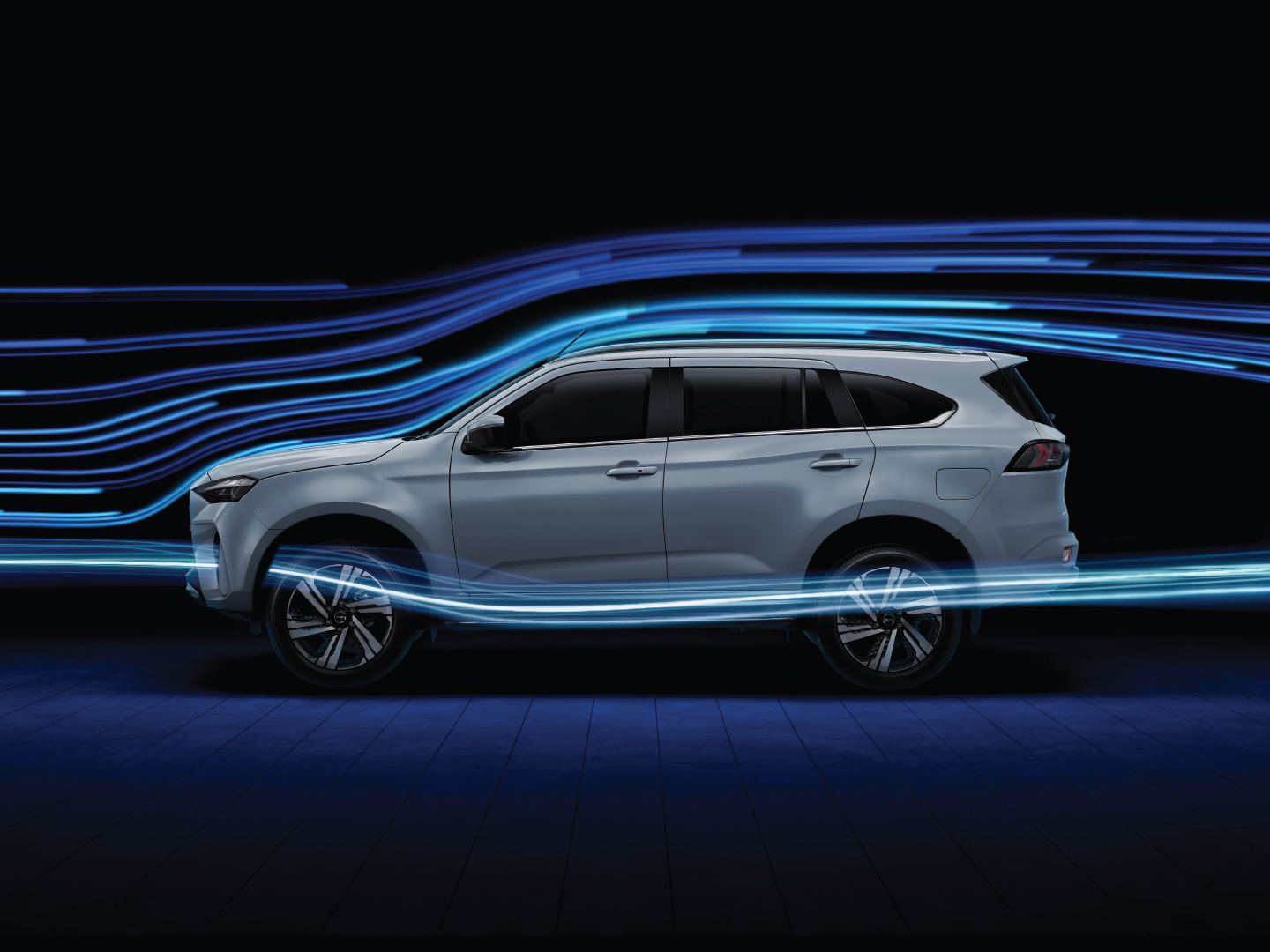

Exterior
ELEGANT – LUXURY
With an elegant and luxurious design language, the Isuzu mu-X possesses an attractive appearance, creating a sense of excitement, motivating you to constantly explore new horizons.

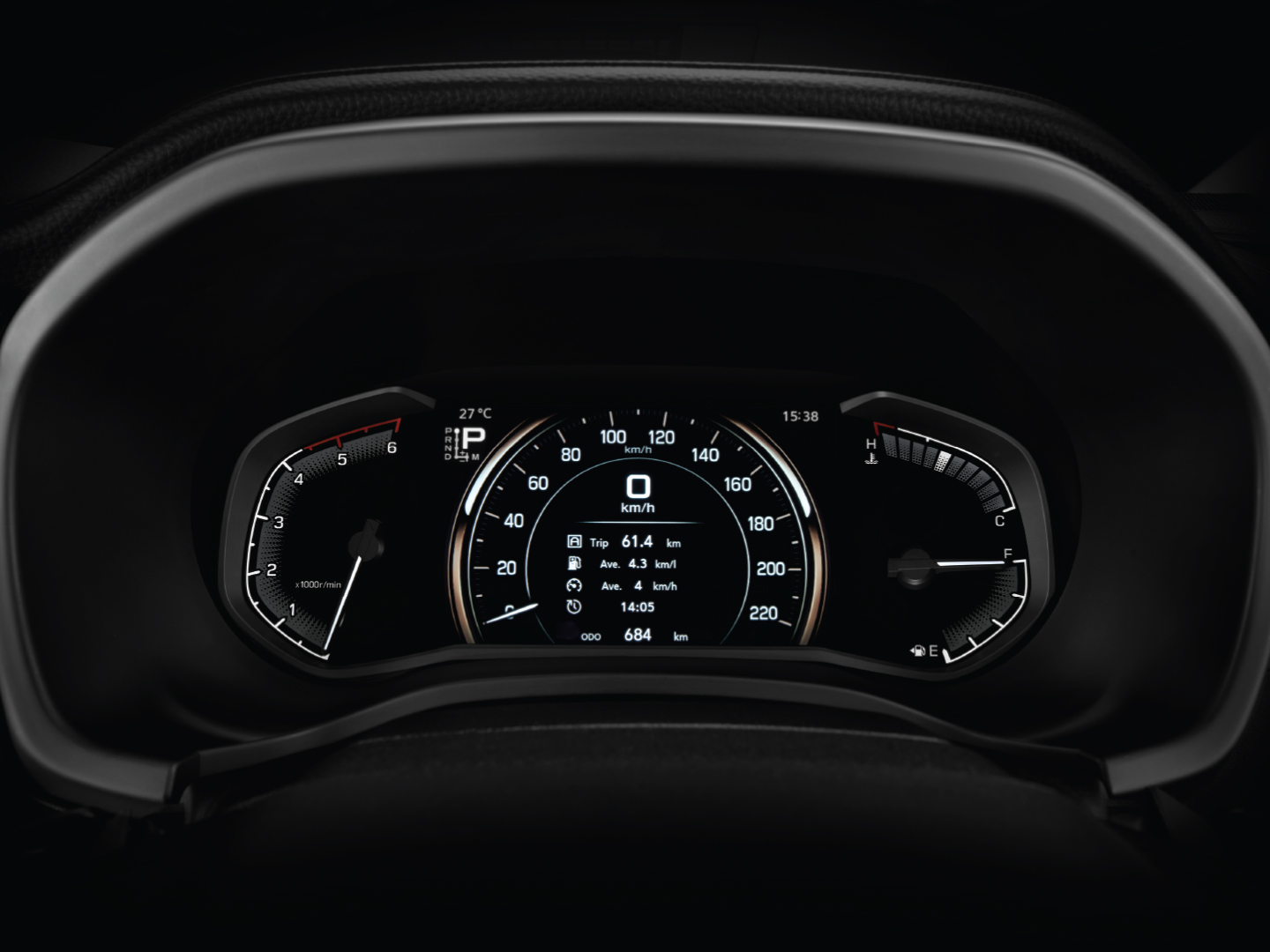

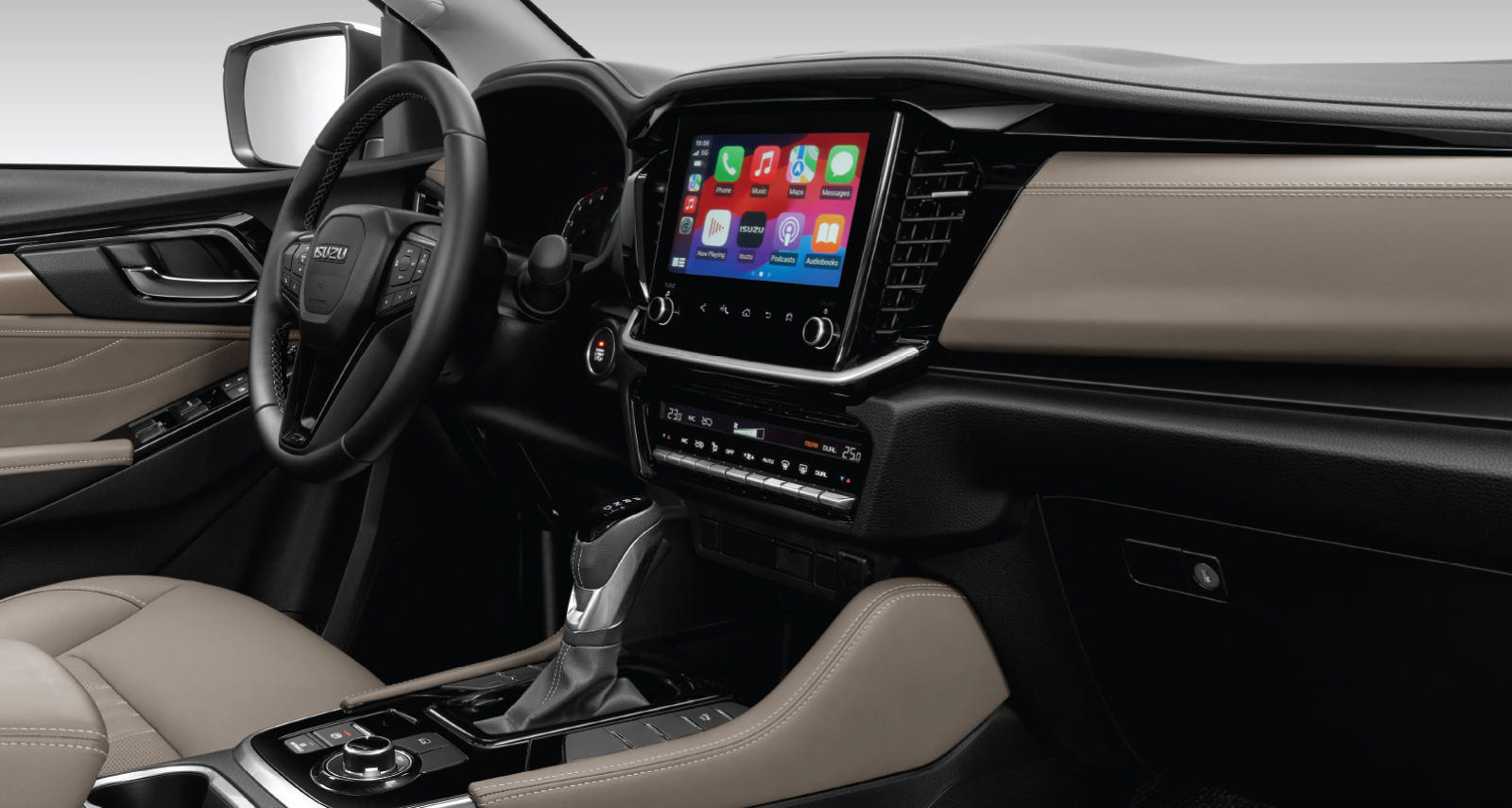

Interior
EMOTIONAL & SOLID
Uniquely designed under the concept of “Emotional and Solid”, the new ISUZU MU-X reflects its distinct identity through the strong yet luxurious looks that creates the pleasure of ownership, and the excitement to keep driving to explore new horizons.

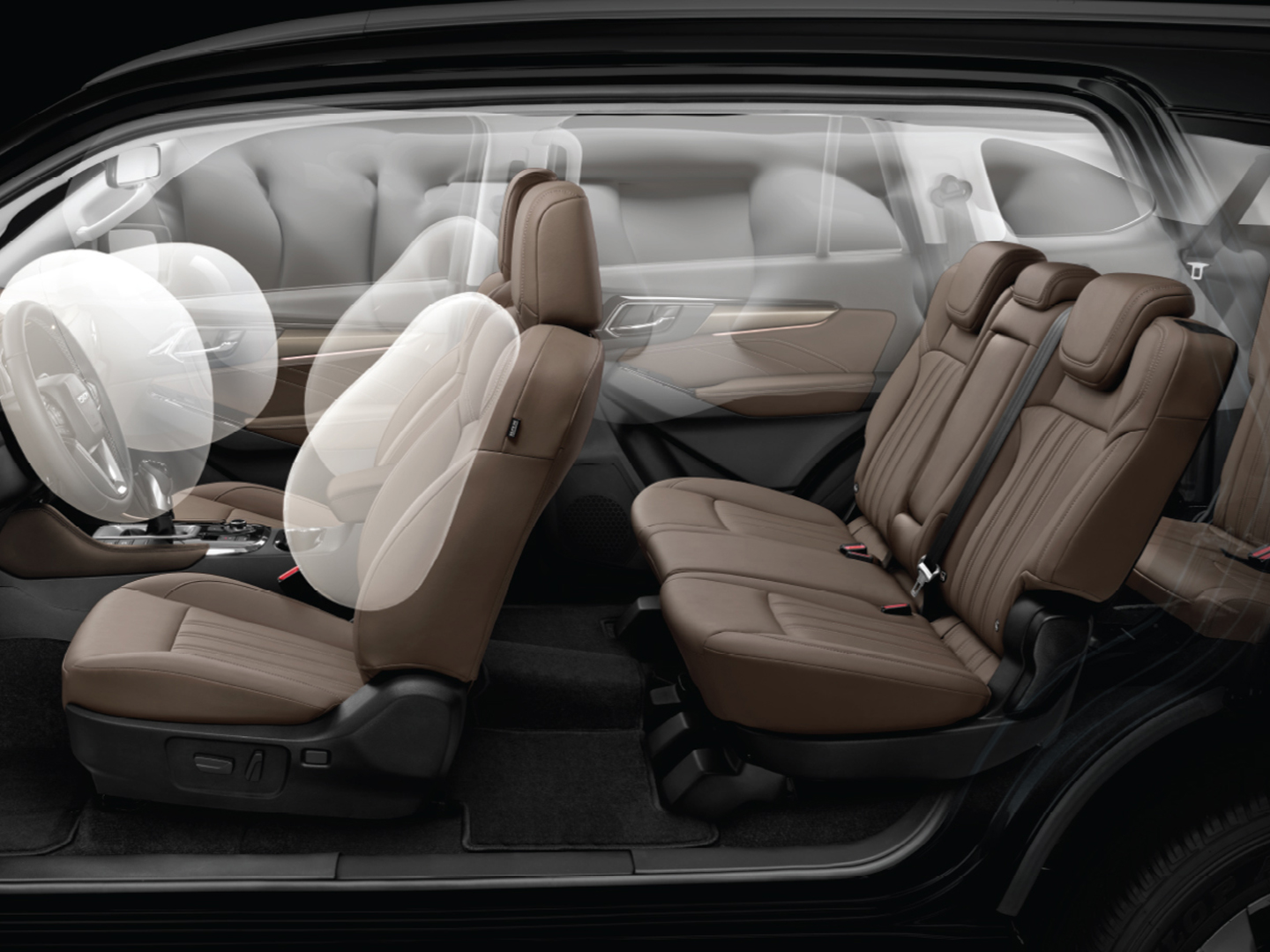

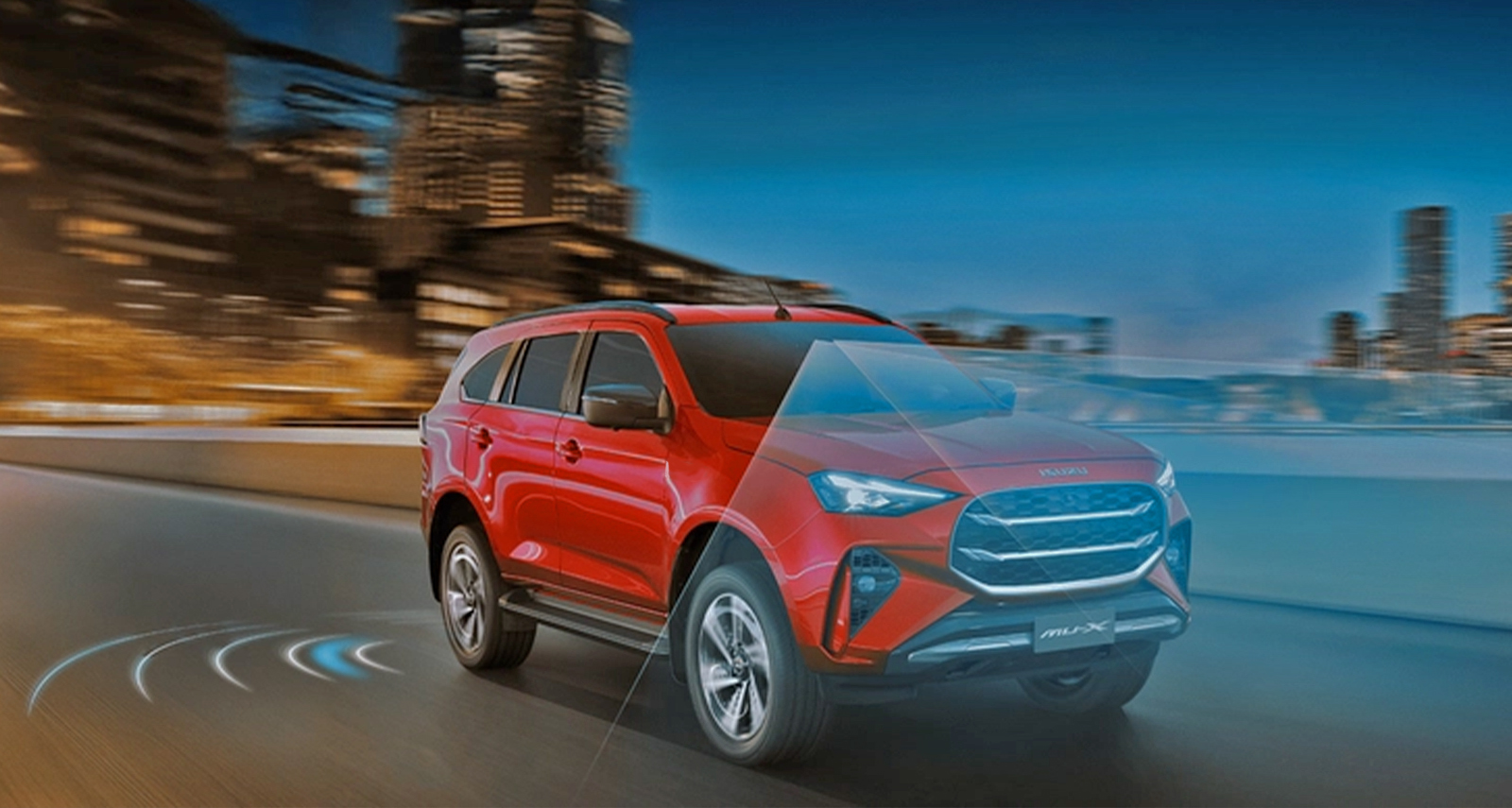

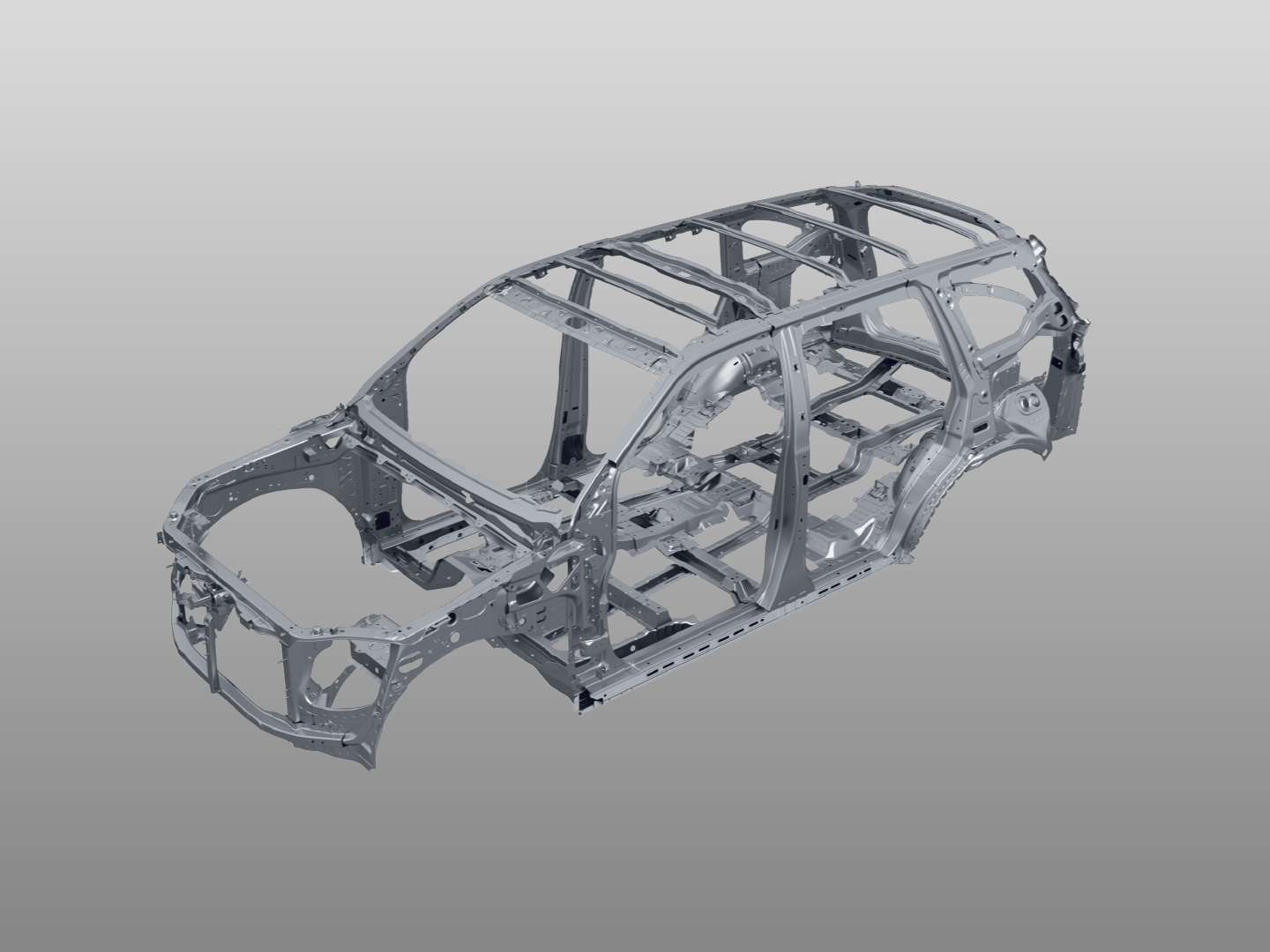

Safety
SAFETY UNCOMPROMISED
Aiming for maximum safety for you and your family, ISUZU D-MAX is equipped with a series of advanced safety features - supporting the resolution of dangerous situations. Because confidence is not only conquering the most difficult terrain; but also ensuring maximum safety - on every journey.

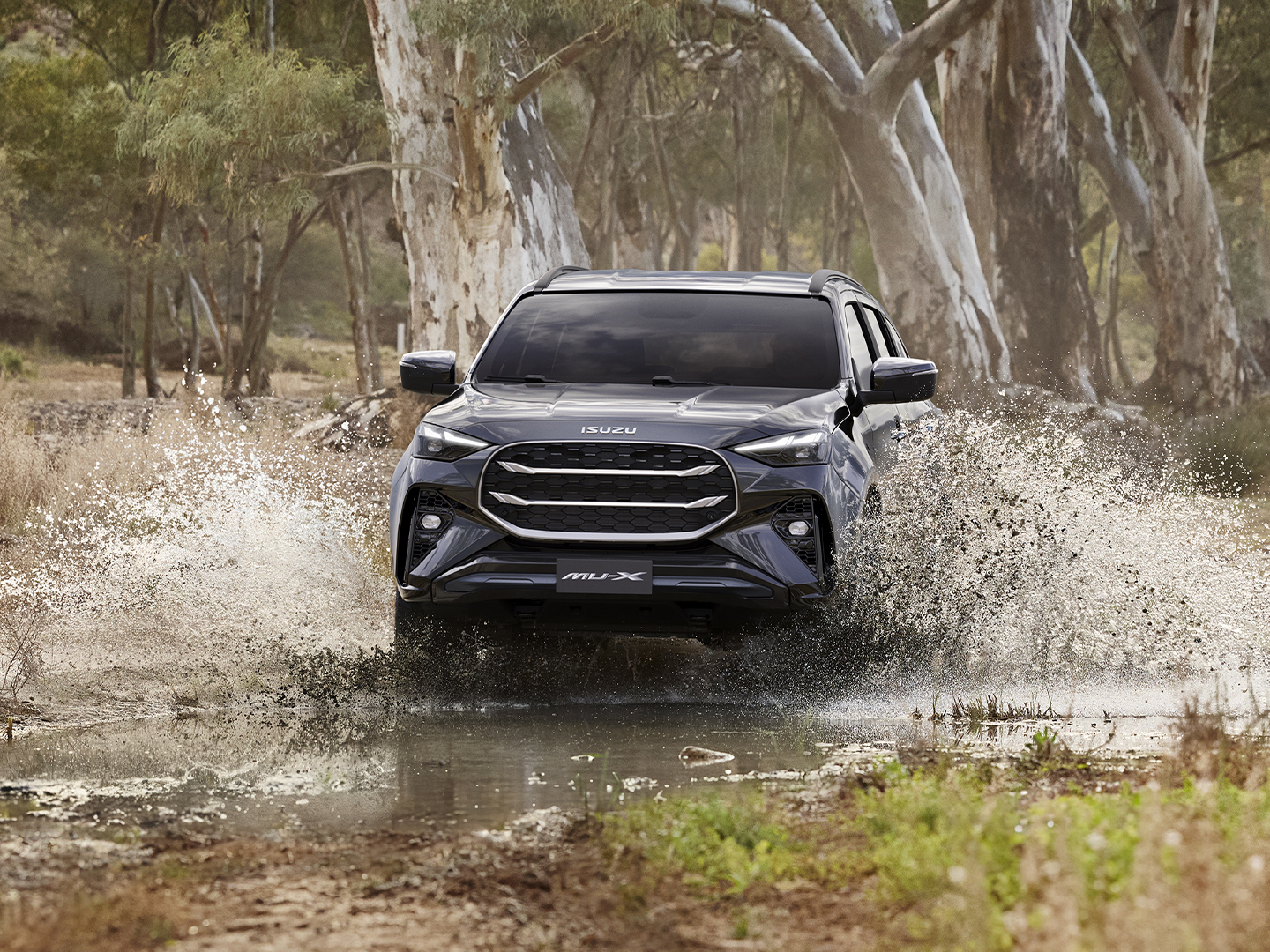

Performance
DURABILITY AND STABILITY
ISUZU mu-X engine is not only durable, but also meets the emission standards and ensures economical during operation.
explore Specification
OVERVIEW
DIMENSION & WEIGHT
Engine
TRANSMISSION
CHASSIS
EXTERIOR
INTERIOR
CONVENIENCE
SAFETY
| Manufacturers Name | Isuzu Motors Co., (Thailand) LTD | |
| Manufacturers Address | 38 Kor. Moo 9, Poochaosamingprai rd., Samrong Tai, Phrapradaeng, Samutprakarn 10130, Thailand | |
| Origin | Thailand | |
| Certification number of approval (TA) | 21KOT/274470 | |
| Model code | UCR87GGL-TLUHVN | |
| Emission | Euro 5 | |
| Overall dimension (L x W x H) | mm | 4,850 x 1,870 x 1,875 |
| Wheelbase | mm | 2,855 |
| Ground clearance | mm | 235 |
| Gross vehicle weight | kg | 2,700 |
| Kerbs weight | kg | 1,975 |
| Min. turning radius | m | 5.7 |
| Fuel tank capacity | Liter | 80 |
| Seating capacity | Persons | 07 |
| Model | RZ4E-TC | |
| Type | In-line 4 cylinders, Diesel 1.9L, Intercooler VGS Turbo, Common rail |
|
| Displacement | cc | 1,898 |
| Max. Power | PS (kW)/rpm | 150 (110)/3,600 |
| Max. Torque | Nm/rpm | 350/1,800-2,600 |
| Emission standard | EURO 5 | |
| Drive configuration | RWD | |
| Fuel Consumption | Urban | 8.43 Liter / 100 km |
| Rural | 5.3 Liter / 100 km | |
| Combine | 6.45 Liter / 100 km |
| Type | 6-speed AT |
| Free wheel hubs | – |
| Suspension | Front | Independent, double wishbone with coil spring |
| Rear | 5-link suspension, coil spring | |

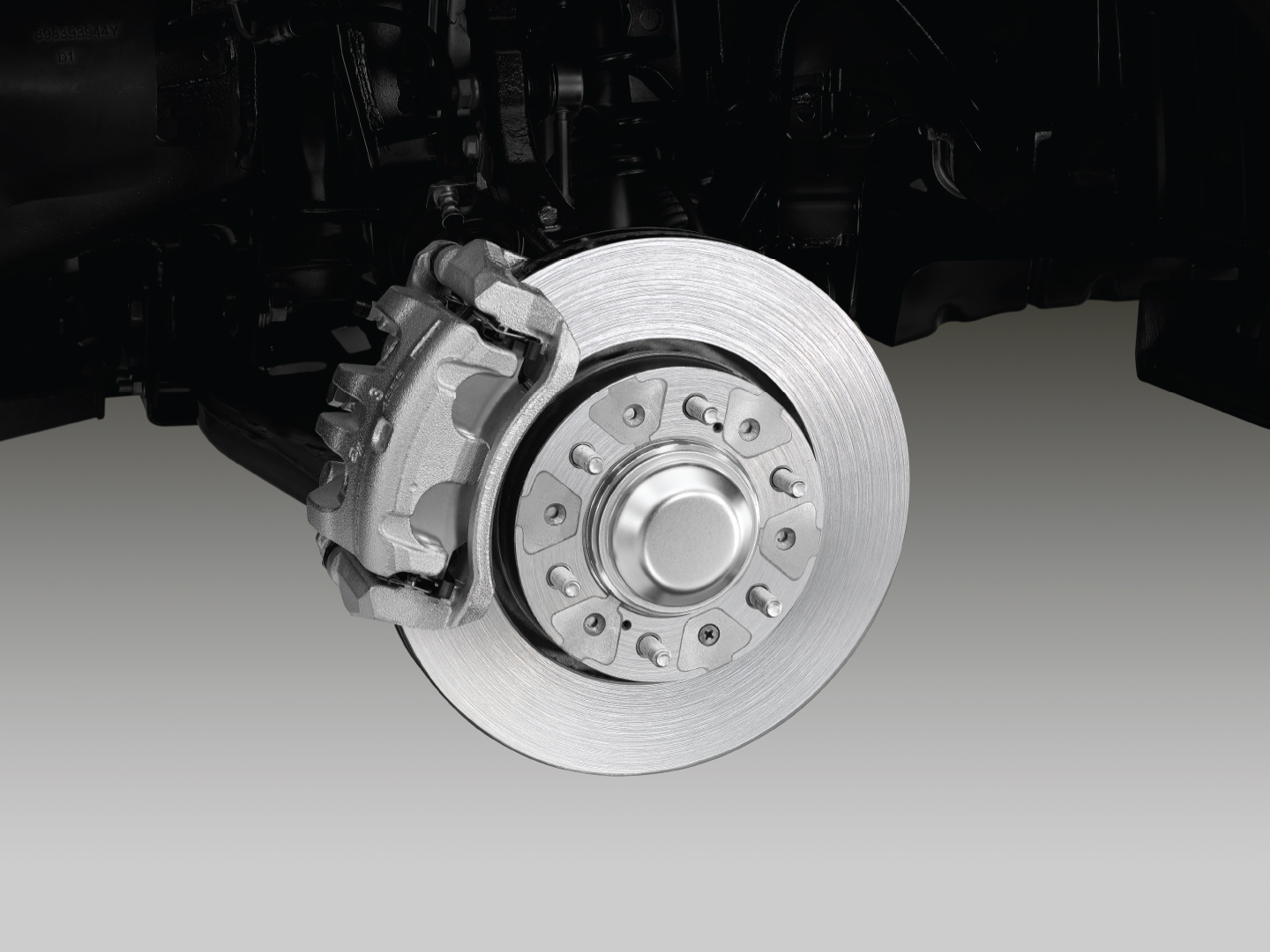

| Brake system | Front | Ventilated disc |
| Rear | Ventilated disc | |
| Assisted steering type | Hydraulic | |

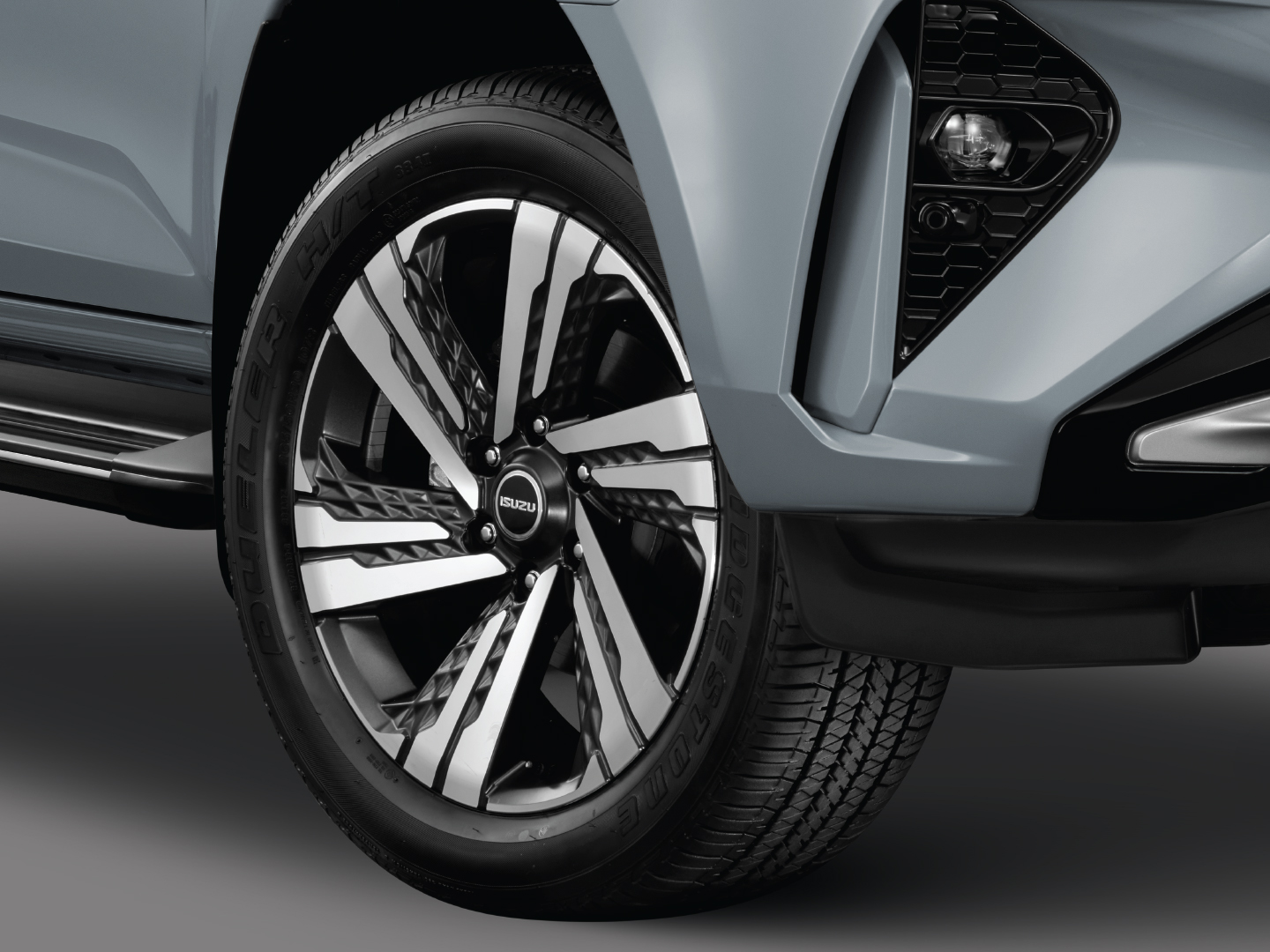

| Wheel | 18 inch Alloy wheel | |
| Tire | 265/60R18 |

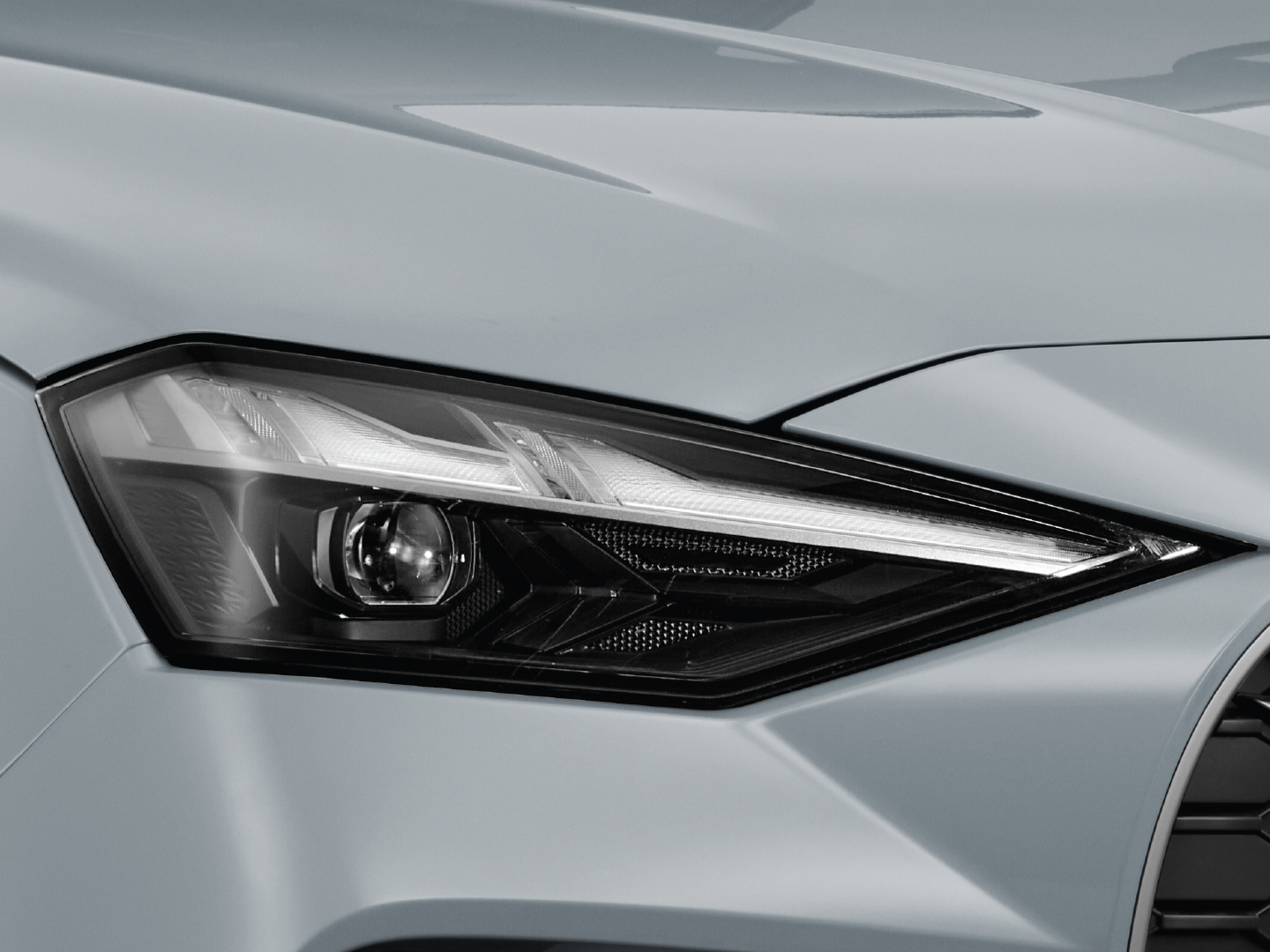

| Head lamp | Bi-LED Projector, Auto on/off, Auto Levelling with LED DRL |
| Fog lamp | LED |
| Follow Me Home | With |
| Side mirror | Power folding, power adjust, side turn lamp |
| Auto windshield wiper | With |
| Power tailgate | With |
| Steering wheel | Type | Leather + decoration, switches |
| Paddle shift | With | |
| Adjustment | Tilt & Telescopic | |

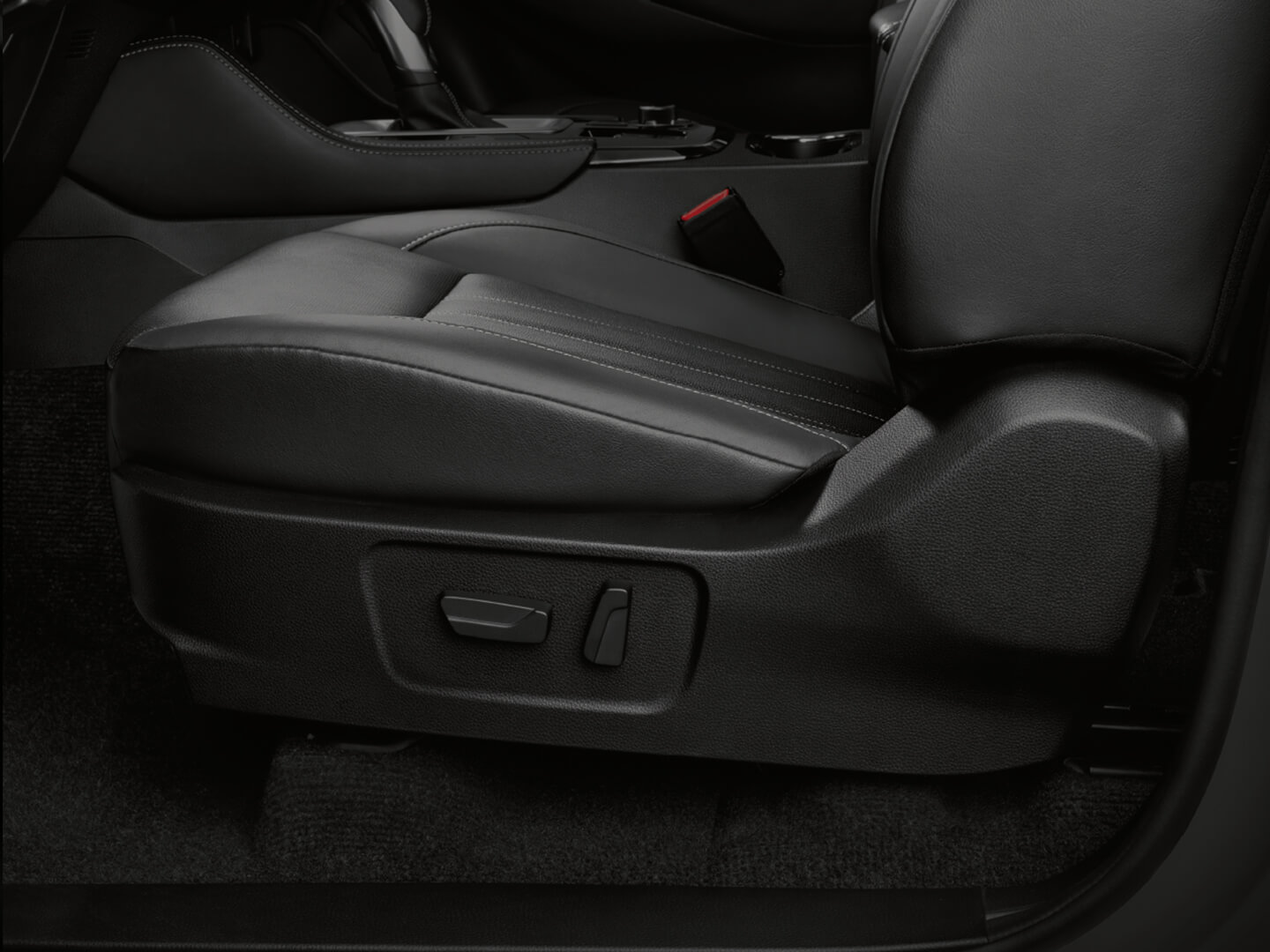

| Seat | 1st row | Power 8-ways driver seat |
| 2nd row | 60:40 ratio, folding, central arm rest | |
| 3rd row | 50:50 ratio split, folding | |
| Material | Leather (Cafe Latte) | |
| Power windows | Auto up & down with jam protection for driver side |
| Smart key & Push start | With |
| Smart entry | With |
| Remote start engine | With |
| Walk away auto door lock | With |
| Auto cruise control | Adaptive Cruise Control with Stop & Go |
| Electric Parking Brake | With (Auto hold) |

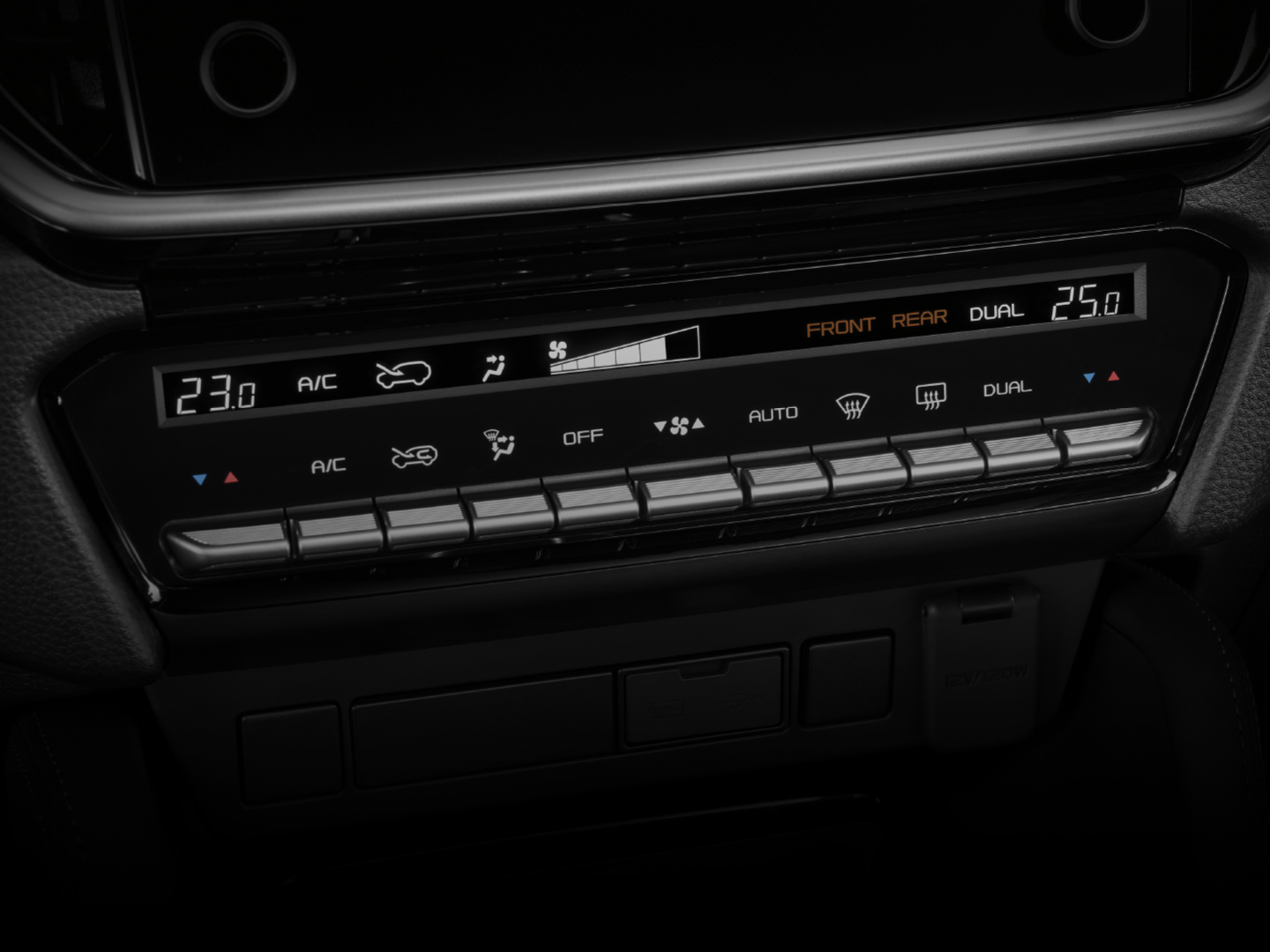

| Air conditioner | Auto Dual Zone |
| Rear ventilation | With |

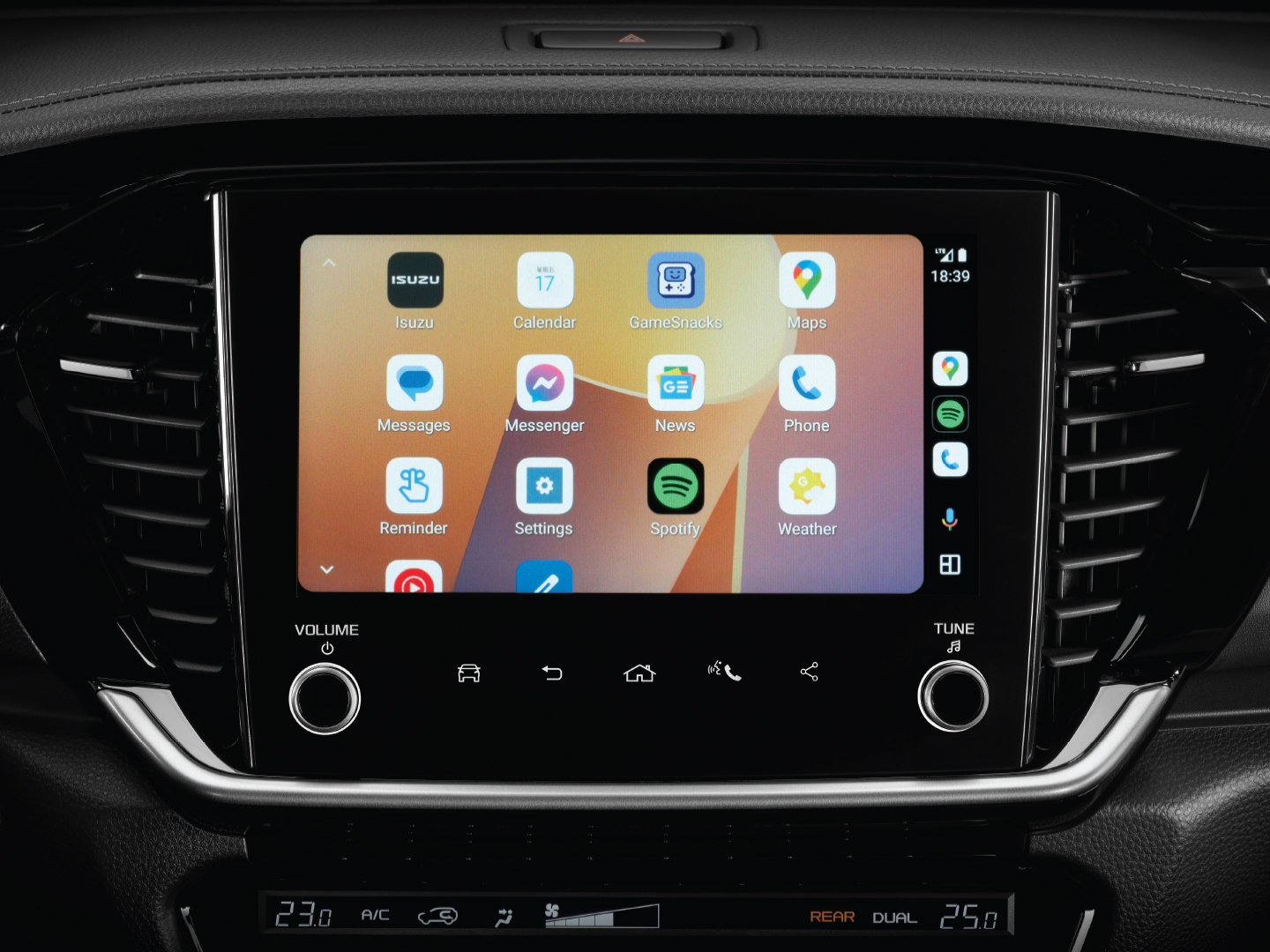

| Entertainment system | 9 inch touch screen, Apple CarPlay, Android Auto, Bluetooth, USB |
| No. of speakers | 08 |
| USB port for charge electric device (5V/2.1A) | 02 |
| Power outlet (220V, 150W) | With |

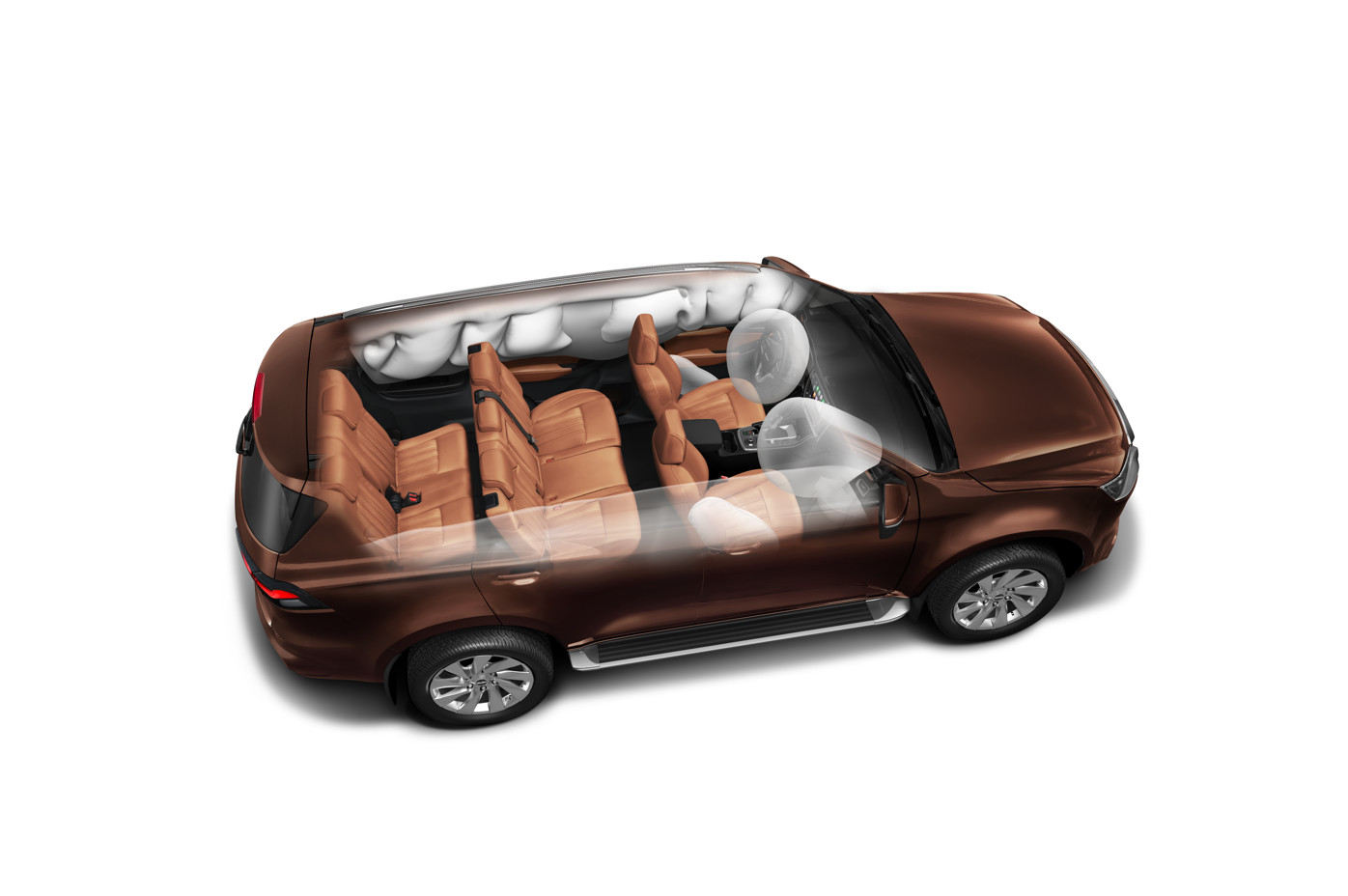

| Airbag | 06 |
| ABS (Anti-lock Brake System) | With |
| EBD (Electronic Brakeforce Distribution) | With |
| BA (Brake Assist) | With |
| ESC (Electronic Stability Control) | With |
| TCS (Traction Control System) | With |
| HSA (Hill Start Assist) | With |
| HDC (Hill Descent Control) | With |
| BOS (Brake Override System) | With |
| AHB (Automatic High Beam) | With |
| TPMS (Tire Pressure Monitor System) | With |
| MCB (Multi Collision Brake) | With |

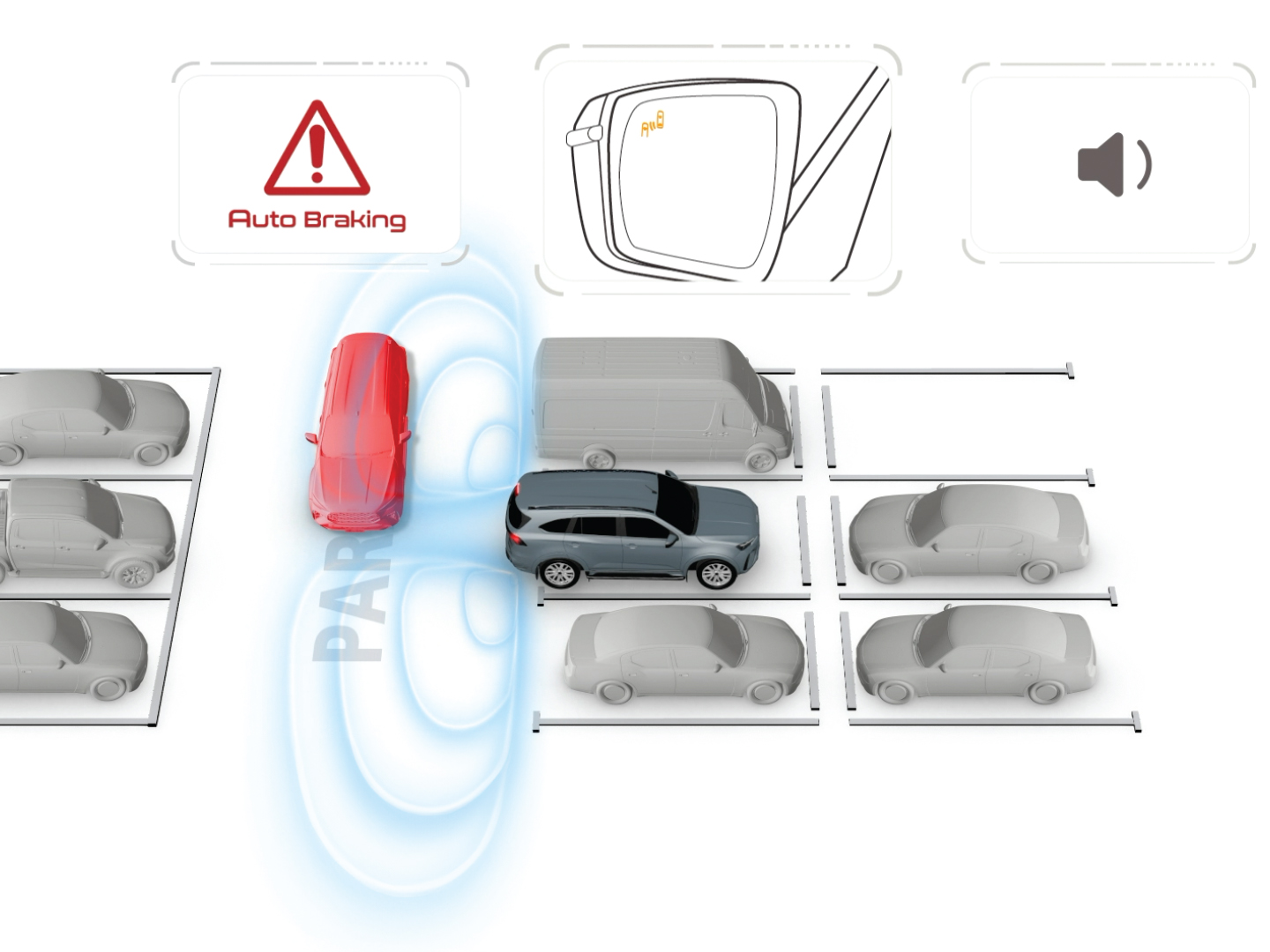

| RCTA (Rear Cross Traffic Alert) | With |
| BSM (Blind Spot Monitor) | With |
| MSL (Manual Speed Limiter) | With |
| LDW (Lane Departure Warning) | With |
| FCW (Forward Collision Warning) | With |
| AEB (Autonomous Emergency Brake) | With |
| MAM (Pedal Misapplication Mitigation) | With |
| Rear View Camera | With |
| Parking aid | Front / Rear |
| Seat belt | 03 x ELR with pretensioner & load limiter |
| 03 x ELR | |
| 03 x ELR | |
| Auto door lock | With |
| Door lock release when airbag deploy | With |
| Child-proof door lock | With |
