OVERVIEW

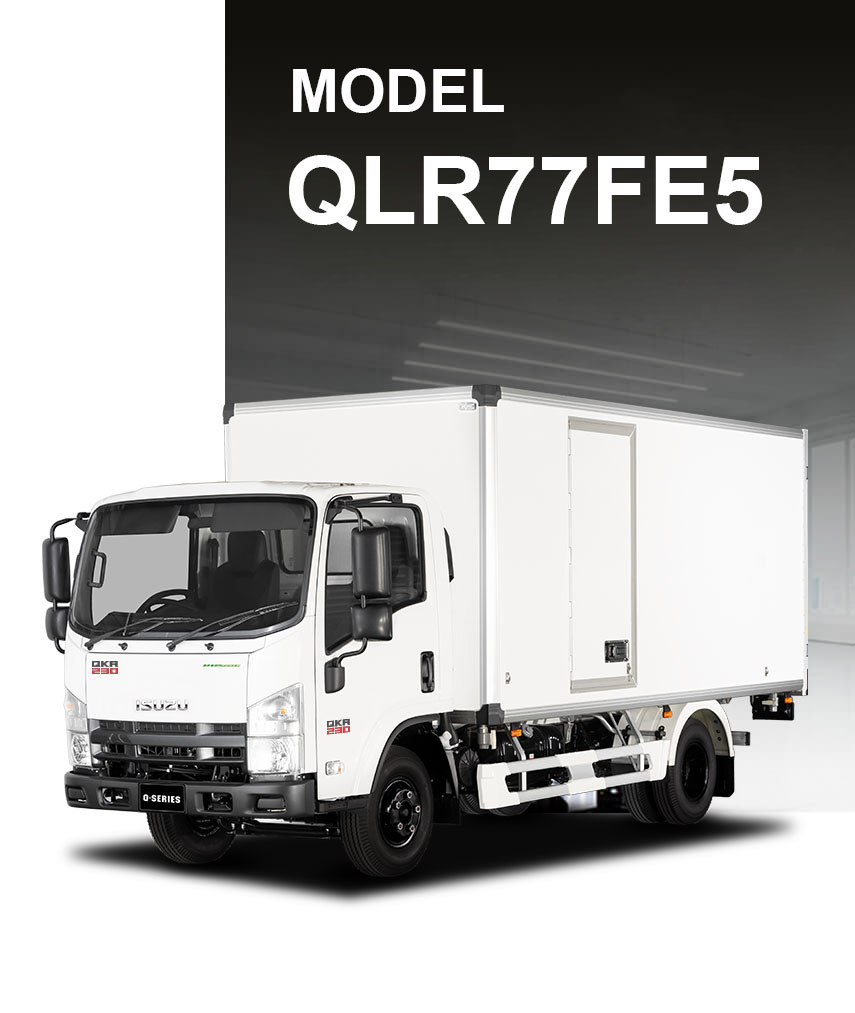

model ISUZU Truck - QLR77FE5 - Chassis

Gross Vehicle Mass 4,990 (KG)
Overall Dimension 5,165 x 1,860 x 2,240 (mm)
Max. Power 120(88) / 2,900(Ps(kW) / rpm)
Emission Standard EURO 5
Manufacturers Name Isuzu Vietnam Co., Ltd
Manufacturers Address 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City
Origin Vietnam
Suggested retail price 505,600,000 VND

* * Applied for cabin chassis only. (Price is included VAT)

ENGINE

UPGRADED ENGINE MORE POWERFUL

HI-PRESSURE COMMON RAIL EURO 5 SYSTEM

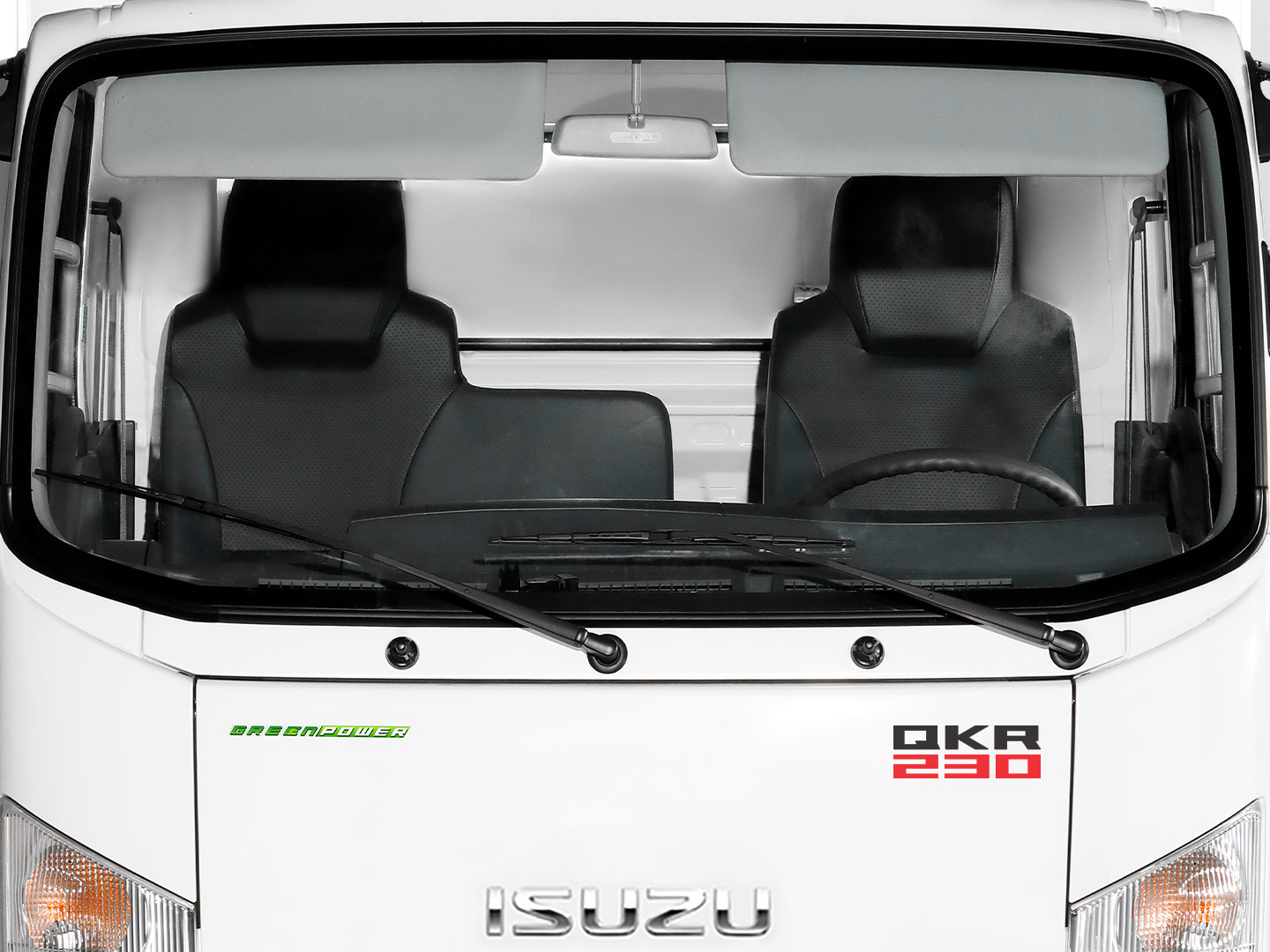

Exterior

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
PERFORMANCE
BASIC SYSTEMS
EQUIPMENTS
Gross Vehicle Mass Kg 4,990
Kerb Mass Kg 1,920
Number of Seats Person 03
Fuel Tank Liter 100
Overall Dimension (OL x OW x OH) mm 5,165 x 1,860 x 2,240
Wheelbase (WB) mm 2,765
Front – Rear Tread (AW / CW) mm 1,398 / 1,425
Ground Clearance (HH) mm 210
Front – Rear Overhang (FOH/ROH) mm 1,095 / 1,305
Model 4JH1E5NC
Type Common rail, turbo – intercooler
Emission Standard Euro 5
Displacement cc 2,999
Max. Power Ps(kW) / rpm 120 (88) / 2,900
Max. Torque N.m(Kgf.m) / rpm 290 (30) / 1,500~2,900
Transmission MSB5K

5 Forward & 1 Reverse

Max Speed Km/h 94
Gradeability % 41
Min Turning Radius m 5.7
Steering System Recirculating ball with hydraulic assisted
Suspension System Front – Rear Dependent, leaf springs, shock absorber
Brake System Front – Rear Drum, hydraulic with vacuum servo assistance, dual circuits
Tire Size Front – Rear 7.00-15 12PR
Generator 12V-60A
Battery 12V-80(AH) x 01
  • 2 Sunvisors for driver and co-driver.
  • Power windows & Central door lock
  • Inside guard bar
  • Cigar lighter
  • Air conditioner
  • 3-point seat belt
  • Reversing warning buzzer
  • Cooler and defroster
  • USB-MP3, AM – FM radio
  • Data recording module
  • Tilt cab warning buzzer
