OVERVIEW

model ISUZU Truck - NQR75HE5 - Chassis

Gross Vehicle Mass 9,500 (KG)
Overall Dimension 6,025 x 2,150 x 2,350 (mm)
Max. Power 155(114) / 2,600 (Ps(kW) / rpm)
Emission Standard EURO 5
Manufacturers Name Isuzu Vietnam Co., Ltd
Manufacturers Address 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City
Origin Vietnam
Suggested retail price 796,176,000 VND

* * Applied for cabin chassis. (Price is included VAT)

ENGINE

COMMON RAIL EURO 5 ENGINE

HI-PRESSURE COMMON RAIL EURO 5 SYSTEM

Exterior

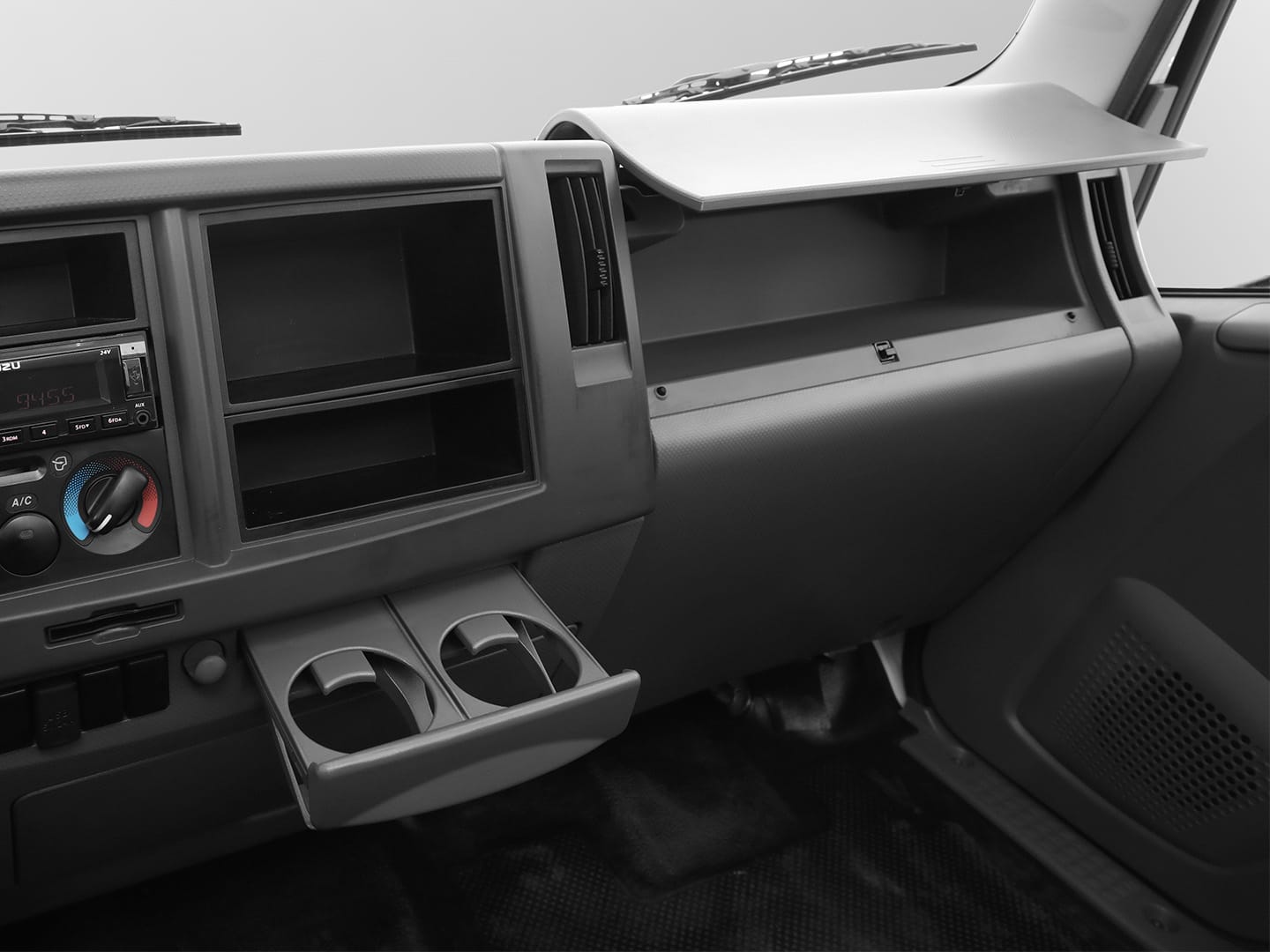

Interior

specification

MASS
DIMENSIONS
ENGINE / TRANSMISSION
PERFORMANCE
BASIC SYSTEMS
EQUIPMENTS
Gross Vehicle Mass Kg 9,500
Kerb mass Kg 2,800
Number of Seats Persons 03
Fuel Tank Liter 100



Overall Dimension (OL x OW x OH) mm 6,025 x 2,150 x 2,350
Wheelbase (WB) mm 3,365
Front – Rear Tread (AW / CW) mm 1,680 / 1,650
Ground Clearance (HH) mm 225
Front – Rear Overhang (FOH/ROH) mm 1,110 / 1,550
Model 4HK1E5N
Type Common rail, turbo – intercooler
Emission Standard Euro 5
Displacement cc 5,193
Max. Power Ps(kW) / rpm 155 (114) / 2,600
Max. Torque N.m(kgf.m) / rpm 419 (42.7) /1,600~2,600
Transmission MYY6S
6 Forward & 1 Reverse
PTO Standard

Max Speed Km/h 97
Gradeability % 28
Min Turning Radius m 6.9
Steering System Recirculating ball with hydraulic assisted
Suspension System Front – Rear Dependent, leaf springs, shock absorber
Brake System Front – Rear Drum, hydraulic with vacuum servo assistance, dual circuit
Tire Size Front – Rear Standard: 8.25R16
Option: 8.25-16 14PR
Máy phát điện 24V-50A
Battery 12V-70(AH) x 02
  • 2 Sunvisors for driver and co-driver
  • Power windows & central door lock
  • Inside guard bar
  • Cigar lighter
  • Air Conditioner
  • 3-point seat belts
  • Reversing warning buzzer
  • Cooler and Defroster
  • USB-MP3, AM – FM radio
  • Fog lamps
  • Tilt cab warning buzzer
  • Exhaust brake
