OVERVIEW

model ISUZU Truck - FTS34LE5 - Chassis

Gross vehicle mass 13,000 (kg)
Overall Dimension 7,510 x 2,400 x 2,960 (mm)
Max. power 240 (177) / 2,400 (Ps(kW) / rpm)
Emission standard EURO 5
Manufacturers Name Isuzu Vietnam Co., Ltd
Manufacturers Address 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City
Origin Vietnam
Suggested retail price 1,472,700,000 VNĐ



* Applied for cabin chassis. (Price is included VAT)

ENGINE

POWERFULL COMMON RAIL EURO 5 ENGINE

HIGH-PRESSURE COMMON RAIL EURO 5 INJECTION SYSTEM

VARIABLE GEOMETRY TURBO SYSTEM

performance

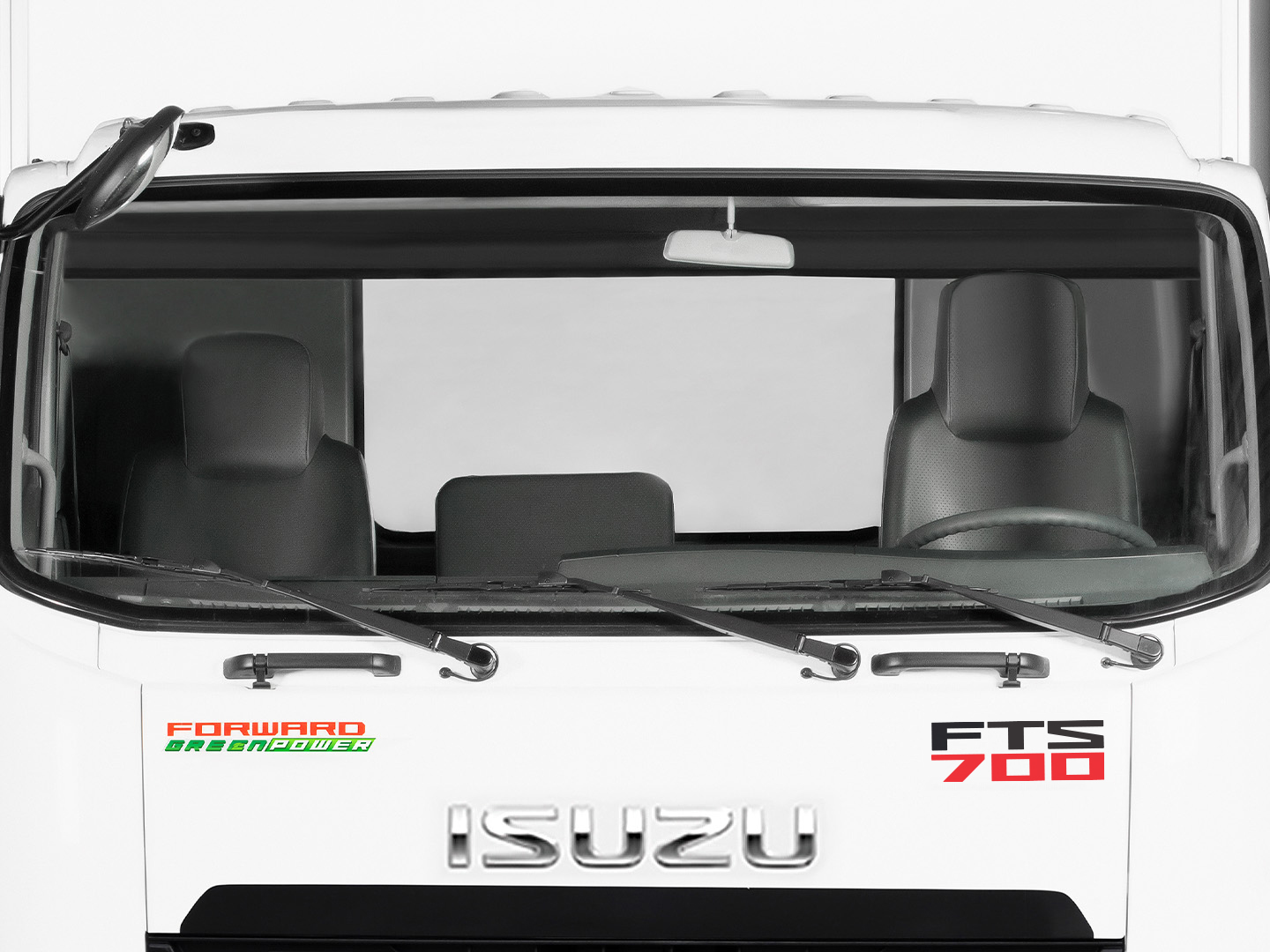

Exterior

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
PERFORMANCE
BASIC SYSTEMS
EQUIPMENTS
Gross Vehicle Mass Kg 13,000
Kerb Mass Kg 5,070
Number of Seats Persons 03
Fuel Tank Liter 200
Overall Dimension (OL x OW x OH) mm 7,510 x 2,400 x 2,960
Wheelbase (WB) mm 4,250
Front – Rear Tread (AW / CW) mm 1,965 / 1,790
Ground Clearance (HH) mm 270
Front – Rear Overhang (FOH/ROH) mm 1,255 / 2,005
Model 6HK1E5NR
Type Common rail, turbo – intercooler
Emission Control Euro 5
Displacement cc 7,790
Max. Power Ps(kW) / rpm 240 (177) / 2,400
Max. Torque N.m(kgf.m) / rpm 706 (72) / 1,450
Transmission MZW6P
6 Forward & 1 Reverse
Transfer gearbox Low / High : 1.913 / 1.000
Drivetrain system 4×4 Full-time
Rear differential LSD type
Center differential lock With
Max Speed Km/h 100
Gradeability % 70
Steering System Recirculating ball with hydraulic assisted
Suspension System Front – Rear Dependent, leaf springs, shock absorber
Brake System Front – Rear Drum, Air-over hydraulic dual circuit
Tire Size Front – Rear 9.00R20 Rib-lug
Generator 24V – 60A
Battery 12V-70(AH) x 02
  • 2 Sunvisors for driver and co-driver
  • Power windows & central door lock
  • Inside guard bar
  • Cigar lighter
  • Air Conditioner
  • 3-point seat belts
  • Reversing warning buzzer
  • Cooler and Defroster
  • USB-MP3, AM – FM radio
  • Tilt cab warning buzzer
  • Exhaust brake
  • Relax place
