OVERVIEW

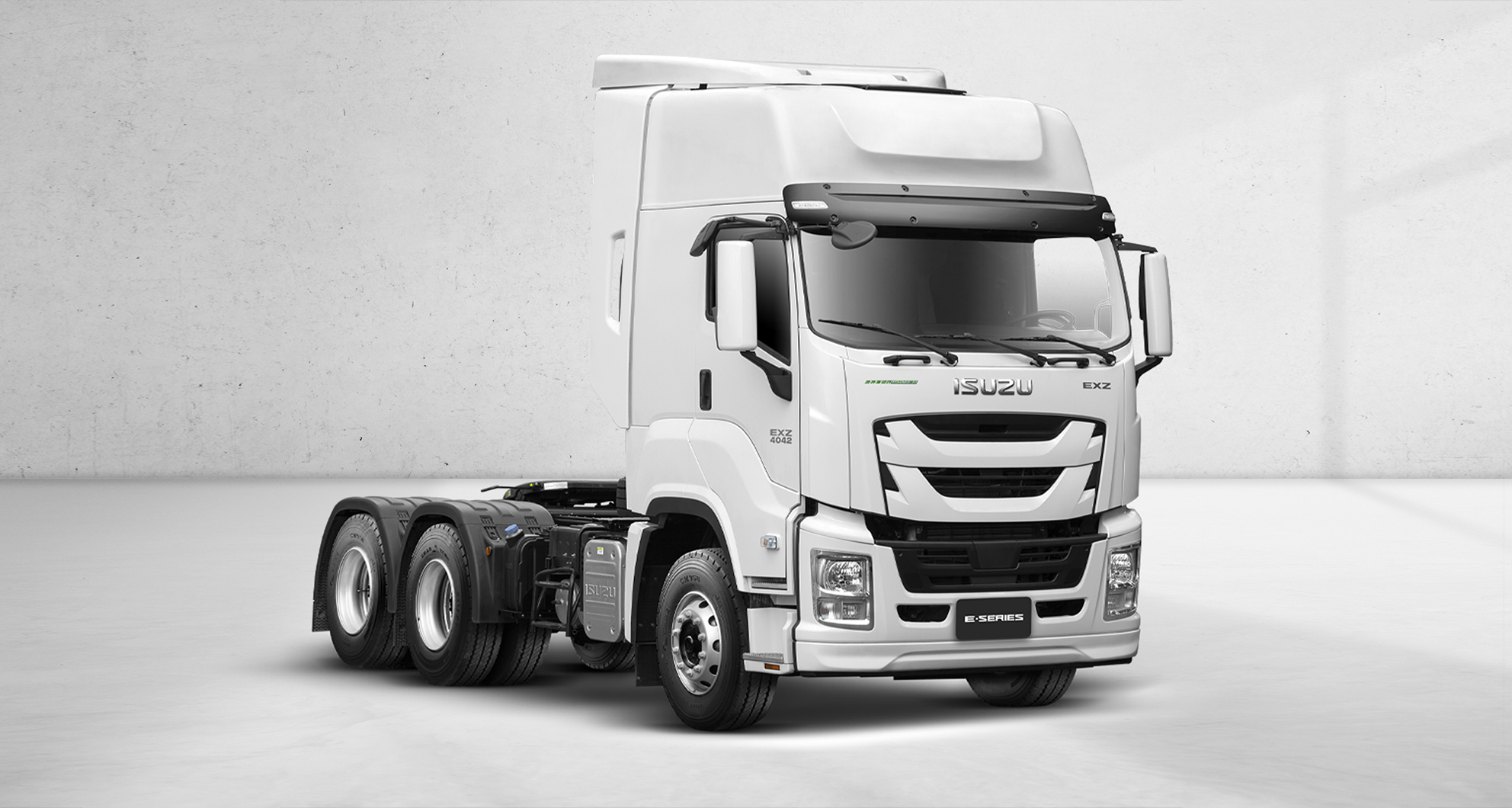

model TRACTOR HEAD ISUZU - EXZ - 6X4- 380PS

Gross vehicle mass 23,830 (Kg)
Gross combination mass 48,000 (Kg)
Max towed weight designed / authorized 40,000 / 38,850 (Kg)
Max. Power 380 (279) / 1,800 Ps(Kw)/rpm
Max. Torque 1,765/1,200~1,500 Nm/rpm
Emission standard Euro 5
Manufacturer name QINGLING MOTORS CO., LTD
Manufacturer address No.1 Xiexing Road, Zhong Liang Shan, Jiu Long Po District 400052, ChongQing (China)
Origin China
Suggested retail price 1,698,840,000 VND

ENGINE

POWERFUL COMMON RAIL ENGINE

EUROPEAN STANDARD ZF TRANSMISSION

performance

Exterior

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
BASIC SYSTEMS
CONVENIENCE
SAFETY FEATURES
Gross vehicle mass Kg 23,830
Gross combination mass Kg 48,000
Kerb mass Kg 8,850
Max towed weight designed / authorized Kg 40,000/38,850
No. of seats 2
Fuel tank capacity Litter 600
Ure tank capacity Litter 40
Overall dimension mm 6,895 x 2,500 x 3,970
Wheelbase mm 3,385 + 1,370
Front – rear tread mm 2,065 / 1,875
Model 6UZ1-TCG50
Type 4 stroke, 6 cylinders, in line, turbo charged – intercooler
Emission standard EURO 5
Bore x stroke mm 147 x 154
Displacement cc 9,839
Max. Power PS(kW)/rpm 380(279)/1,800
Max. torque Nm/rpm 1,765/1,200~1,500
Transmission
ZF16 (16S2030TO)
16 forwards, 2 reverse
Final gear ratio 3.909
Electric axle  shift With
Driving system 6×4
Steering system Recirculating ball with hydraulic assisted
Suspension system front – rear Leaf springs, shock absorber
Brake system front – rear Full air brake, drum type
Tire size front – rear 12R22.5 – 18PR
Generator 24V-60A
Battery 12V-120Ah x 02
Driver air seat With
Center door lock With
Power windows With

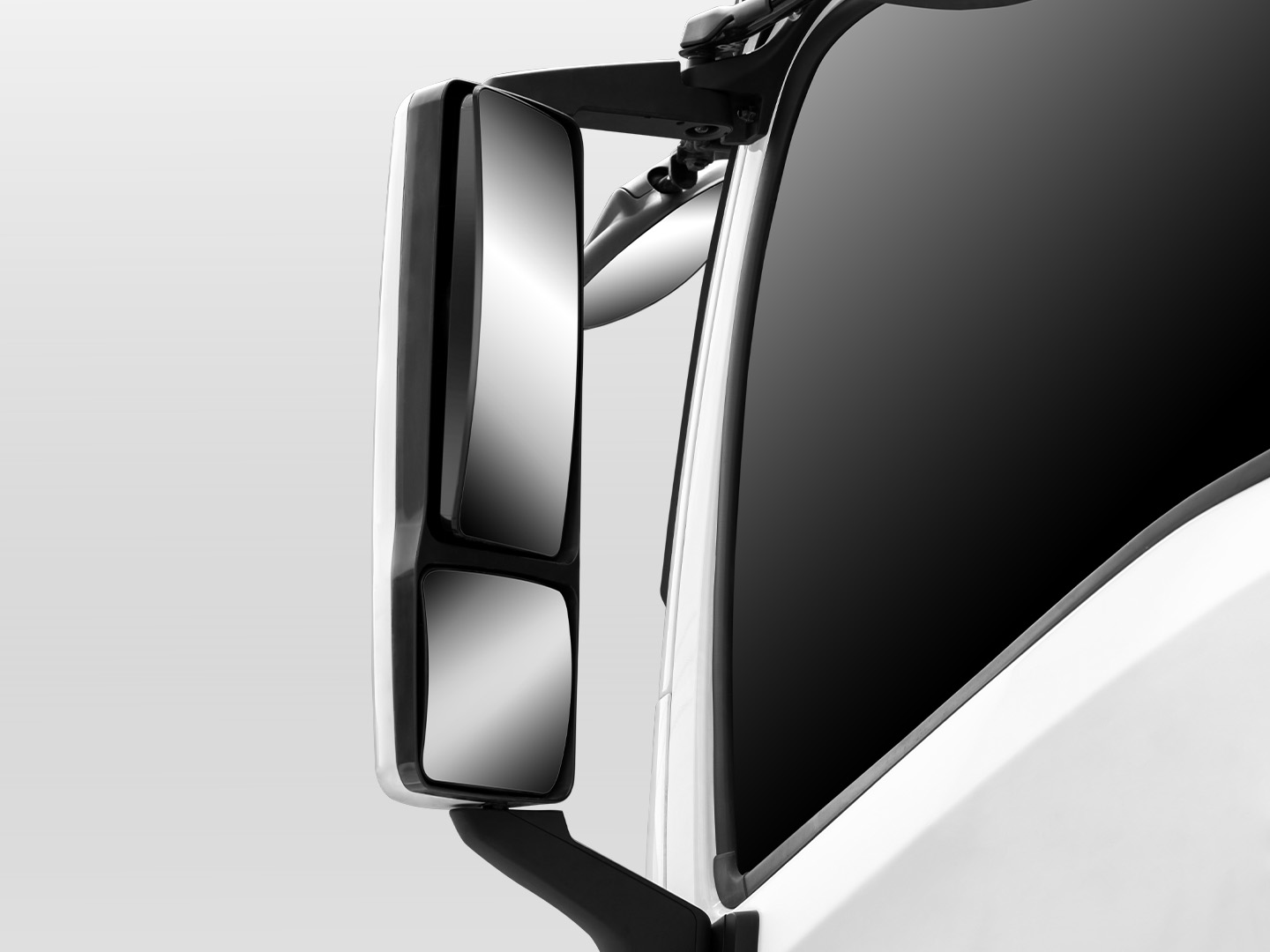

Electric rear mirror with drying function With
Headlamp leveling With
Air conditioner With
USB-MP3, AM/FM Radio With
USB charger With
Double-deck berth With
Overhead storage With
Bedside table With
Cabin room lamp With
Reading lamp With
ABS With
Cruise control With
Speed limit With
3-points seatbelts With
Exhaust brake With
Trailer parking brake With
