Reefer Truck

Freezer

FVM34WE4
FVM34TE4
FVR34SE4
FVR34QE4
FRR90NE4
FRR90LE4
NQR75ME4
NQR75LE4
NPR85KE4
NMR85HE4
QKR77HE4
QKR77FE4

Basic specification
AC cabin standard
Engine 6HK1E4SC
Max Output Ps(kW)/rpm 280(206) / 2,400
Tire size (Front / Rear) 11.00-R20
MASS
Gross vehicle mass kg 24,000
Payload kg 13,200
DIMENSION
Overall OAL x OW x OH mm 11,250 x 2,500 x 3,830
Out side body dimension (LxWxH) mm 8500 x 2500 x 2550
Inside body dimension (LxWxH) mm 8,250 x 2,320 x 2,310
Freezer system
Freezer body THERMO KING SB-230 (14950W)
Max cold temperatur C. Degree -18
BASIC SPECICATION
AC cabin Standard
Engine 6HK1E4SC
Max Output Ps(kW)/rpm 280(206) / 2400
Tire size (Front / Rear) 11.00-R20
WEIGHT
Gross vehicle mass kg 24000
Payload kg 13700
DIMENSION
Overall Dimension (L x W x H) mm 9900 x 2500 x 3830
Out side body dimension (L x W x H) mm 7700 x 2500 x 2550
Inside body dimension (L x W x H) mm 7450 x 2320 x 2310
FREEZER SYSTEM
Freezer body THERMO MASTER G42SE (8139W)/T-5100SE (7500W)
Max. cold temperature C. Degree -18
Basic specification
AC cabin standard
Engine 6HK1E4NC
Max Output Ps(kW)/rpm 241(177) / 2,400
Tire size (Front / Rear) 10.00-R20
MASS
Gross vehicle mass kg 15,700
Payload kg 7,700
DIMENSION
Overall OAL x OW x OH mm 9,900 x 2,500 x 3,830
Out side body dimension (LxWxH) mm 7700 x 2500 x 2550
Inside body dimension (LxWxH) mm 7,450 x 2,320 x 2,310
Freezer system
Freezer body THERMO MASTER T-3500 (6800W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 6HK1E4NC
Max Output Ps(kW)/rpm 241(177) / 2,400
Tire size (Front / Rear) 10.00-R20
MASS
Gross vehicle mass kg 15,350
Payload kg 7,650
DIMENSION
Overall OAL x OW x OH mm 9,270 x 2,500 x 3,830
Out side body dimension (LxWxH) mm 7100 x 2500 x 2550
Inside body dimension (LxWxH) mm 6,850 x 2,320 x 2,310
Freezer system
Freezer body THERMO MASTER T-3500 (6800W)THERMO MASTER G42SE (8139W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4HK1E4NC
Max Output Ps(kW)/rpm 190(140) / 2,600
Tire size (Front / Rear) 8.25-16 18PR
MASS
Gross vehicle mass kg 11,000
Payload kg 5,850
DIMENSION
Overall OAL x OW x OH mm 8,670 x 2,300 x 3,380
Out side body dimension (LxWxH) mm 6700 x 2300 x 2280
Inside body dimension (LxWxH) mm 6,470 x 2,120 x 2,065
Freezer system
Freezer body THERMO MASTER T-3500 (6800W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4HK1E4NC
Max Output Ps(kW)/rpm 190(140) / 2,600
Tire size (Front / Rear) 8.25-16 18PR
MASS
Gross vehicle mass kg 11,000
Payload kg 6,000
DIMENSION
Overall OAL x OW x OH mm 7,760 x 2,300 x 3,380
Out side body dimension (LxWxH) mm 5900 x 2300 x 2280
Inside body dimension (LxWxH) mm 5,670 x 2,120 x 2,065
Freezer system
Freezer body THERMO MASTER T-3000 (5459W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4HK1E4NC
Max Output Ps(kW)/rpm 155(114) / 2,600
Tire size (Front / Rear) 8.25-16 14PR
MASS
Gross vehicle mass kg 9,500
Payload kg 5,250
DIMENSION
Overall OAL x OW x OH mm 8,120 x 2,200 x 3,200
Out side body dimension (LxWxH) mm 6300 x 2200 x 2200
Inside body dimension (LxWxH) mm 6,120 x 2,050 x 2,020
Freezer system
Freezer body THERMO MASTER T-3500 (6800W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4HK1E4NC
Max Output Ps(kW)/rpm 155(114) / 2,600
Tire size (Front / Rear) 8.25-16 14PR
MASS
Gross vehicle mass kg 9,500
Payload kg 5,450
DIMENSION
Overall OAL x OW x OH mm 7,570 x 2,200 x 3,200
Out side body dimension (LxWxH) mm 5750 x 2200 x 2200
Inside body dimension (LxWxH) mm 5,570 x 2,050 x 2,020
Freezer system
Freezer body THERMO MASTER T-3000 (5459W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 124(91) / 2,600
Tire size (Front / Rear) 7.50-16 14PR
MASS
Gross vehicle mass kg 7200 (7500)
Payload kg 3490 (3800)
DIMENSION
Overall OAL x OW x OH mm 7,030 x 2,150 x 3,000
Out side body dimension (LxWxH) mm 5250 x 2150 x 2080
Inside body dimension (LxWxH) mm 5,070 x 2,000 x 1,900
Freezer system
Freezer body THERMO MASTER T-3000 (5459W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 124(91) / 2,600
Tire size (Front / Rear) 7.00-16 14PR
MASS
Gross vehicle mass kg 4990 (5700)
Payload kg 1800 (2490)
DIMENSION
Overall OAL x OW x OH mm 6,320 x 1,850 x 2,800
Out side body dimension (LxWxH) mm 4450 x 1950 x 1950
Inside body dimension (LxWxH) mm 4,370 x 1,800 x 1,780
Freezer system
Freezer body THERMO MASTER T-2500 (4950W)/T-2600 (3860W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 105(77) / 3,200
Tire size (Front / Rear) 7.00-15 12PR
MASS
Gross vehicle mass kg 4,950
Payload kg 1,950
DIMENSION
Overall OAL x OW x OH mm 6,110 x 1,870 x 2,850
Out side body dimension (LxWxH) mm 4400 x 1870 x 1950
Inside body dimension (LxWxH) mm 4,220 x 1,720 x 1,780
Freezer system
Freezer body THERMO MASTER T-2500 (4950W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 105(77) / 3,200
Tire size (Front / Rear) 7.00-15 12PR
MASS
Gross vehicle mass kg 4,990
Payload kg 2,150
DIMENSION
Overall OAL x OW x OH mm 5,400 x 1,870 x 2,850
Out side body dimension (LxWxH) mm 3700 x 1870 x 1950
Inside body dimension (LxWxH) mm 3,520 x 1,720 x 1,780
Freezer system
Freezer body THERMO MASTER T-1400 (3250W)
Max cold temperatur C. Degree -18

Chill

FVM34WE4
FVM34TE4
FVR34SE4
FVR34QE4
FRR90NE4
FRR90LE4
NQR75ME4
NQR75ME4
NQR75LE4
NPR85KE4
NMR85HE4

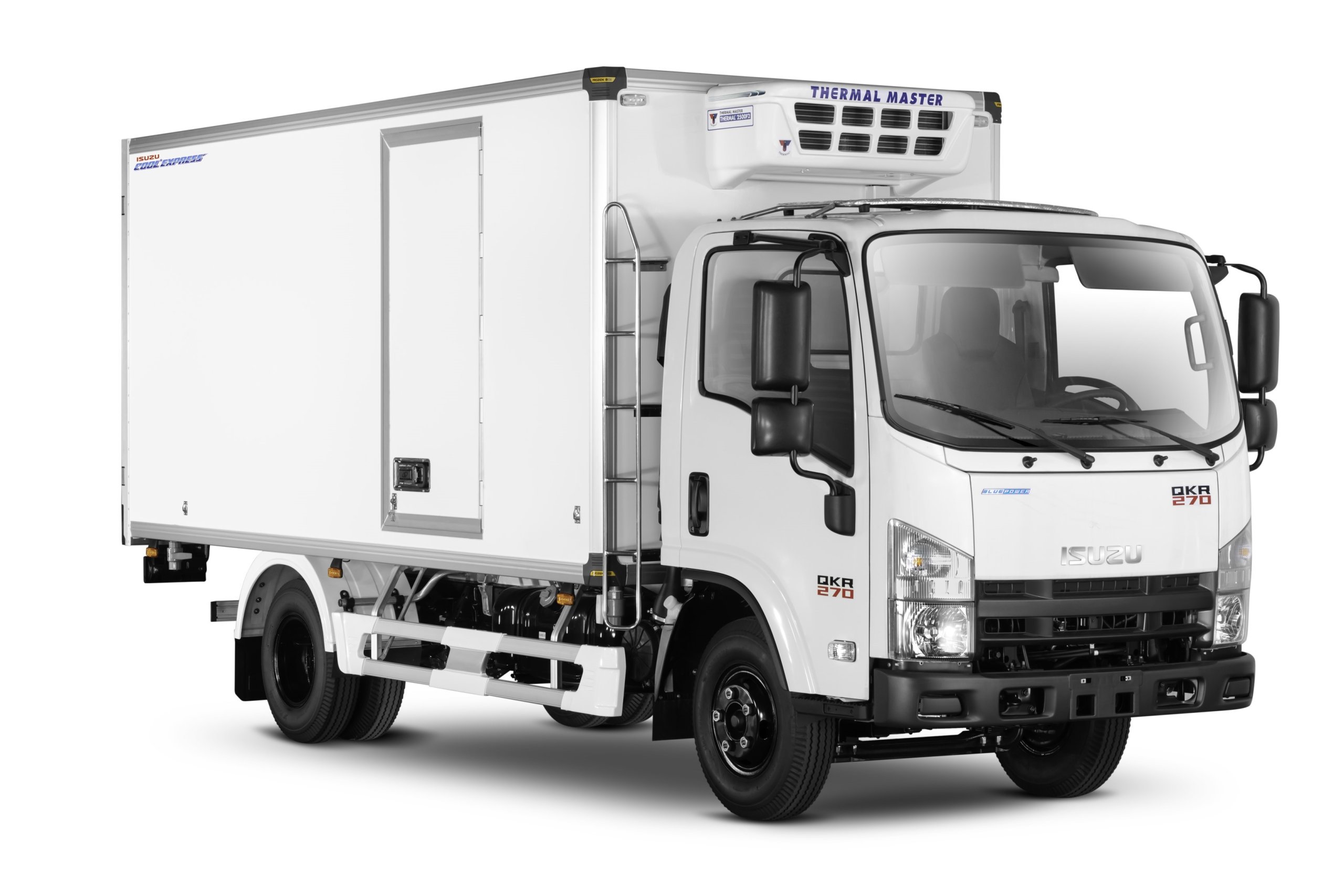

QKR77HE4
QKR77FE4

BASIC SPECIFICATION
AC cabin Standard
Engine 6HK1E4SC
Max Output Ps(kW)/rpm 280(206) / 2400
Tire size (Front / Rear) 11.00-R20
WEIGHT
Gross vehicle mass KG 24000
Payload KG 13650
DIMENSION
Overall Dimension (L x W x H) mm 11500 x 2500 x 3810
Out side body dimension (L x W x H) mm 8500 x 2500 x 2550
Inside body dimension (L x W x H) mm 9100 x 2320 x 2310
BASIC SPECIFICATION
AC cabin Standard
Engine 6HK1E4SC
Max Output Ps(kW)/rpm 280(206) / 2,400
Tire size (Front / Rear) 11.00-R20
WEIGHT
GVW KG 24000
Payload KG 14250
DIMENSION
Overall Dimension (L x W x H) mm 9910 x 2500 x 3810
Outside body dimension (L x W x H) mm 7700 x 2500 x 2550
Inside body dimension (L x W x H) mm 7450 x 2320 x 2310
Basic specification
AC cabin standard
Engine 6HK1E4NC
Max Output Ps(kW)/rpm 241(177) / 2,400
Tire size (Front / Rear) 10.00-R20
MASS
Gross vehicle mass kg 15,700
Payload kg 7,700
DIMENSION
Overall OAL x OW x OH mm 9,860 x 2,500 x 3,810
Out side body dimension (LxWxH) mm 7700 x 2500 x 2550
Inside body dimension (LxWxH) mm 7,450 x 2,320 x 2,310
Basic specification
AC cabin standard
Engine 6HK1E4NC
Max Output Ps(kW)/rpm 241(177) / 2,400
Tire size (Front / Rear) 10.00-R20
MASS
Gross vehicle mass kg 15,370
Payload kg 7,430
DIMENSION
Overall OAL x OW x OH mm 9,270 x 2,500 x 3,830
Out side body dimension (LxWxH) mm 7100 x 2500 x 2550
Inside body dimension (LxWxH) mm 6,850 x 2,320 x 2,310
Basic specification
AC cabin standard
Engine 4HK1E4CC
Max Output Ps(kW)/rpm 190(140) / 2,600
Tire size (Front / Rear) 8.25-16 18PR
MASS
Gross vehicle mass kg 11,000
Payload kg 5,750
DIMENSION
Overall OAL x OW x OH mm 8,670 x 2,300 x 3,380
Out side body dimension (LxWxH) mm 6700 x 2300 x 2280
Inside body dimension (LxWxH) mm 6,470 x 2,120 x 2,065
Basic specification
AC cabin standard
Engine 4HK1E4CC
Max Output Ps(kW)/rpm 190(140) / 2,600
Tire size (Front / Rear) 8.25-16 18PR
MASS
Gross vehicle mass kg 11,000
Payload kg 6,000
DIMENSION
Overall OAL x OW x OH mm 7,760 x 2,300 x 3,380
Out side body dimension (LxWxH) mm 5900 x 2300 x 2280
Inside body dimension (LxWxH) mm 5,670 x 2,120 x 2,065
Basic specification
AC cabin standard
Engine 4HK1E4NC
Max Output Ps(kW)/rpm 155(114) / 2,600
Tire size (Front / Rear) 8.25-16 14PR
MASS
Gross vehicle mass kg 9,500
Payload kg 5,250
DIMENSION
Overall OAL x OW x OH mm 8,120 x 2,200 x 3,200
Out side body dimension (LxWxH) mm 6300 x 2200 x 2200
Inside body dimension (LxWxH) mm 6,120 x 2,050 x 2,020
Basic specification
AC cabin standard
Engine 4HK1E4NC
Max Output Ps(kW)/rpm 155(114) / 2,600
Tire size (Front / Rear) 8.25-16 14PR
MASS
Gross vehicle mass kg 9,500
Payload kg 5,250
DIMENSION
Overall OAL x OW x OH mm 8,120 x 2,200 x 3,200
Out side body dimension (LxWxH) mm 6300 x 2200 x 2200
Inside body dimension (LxWxH) mm 6,120 x 2,050 x 2,020
Basic specification
AC cabin standard
Engine 4HK1E4NC
Max Output Ps(kW)/rpm 155(114) / 2,600
Tire size (Front / Rear) 8.25-16 14PR
MASS
Gross vehicle mass kg 9,500
Payload kg 5,450
DIMENSION
Overall OAL x OW x OH mm 7,570 x 2,200 x 3,200
Out side body dimension (LxWxH) mm 5750 x 2200 x 2200
Inside body dimension (LxWxH) mm 5,570 x 2,050 x 2,020
Freezer system
Freezer body THERMO MASTER T-3000 (5459W)
Max cold temperatur C. Degree -18
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 124(91) / 2,600
Tire size (Front / Rear) 7.50-16 14PR
MASS
Gross vehicle mass kg 7200 (7500)
Payload kg 3490 (3800)
DIMENSION
Overall OAL x OW x OH mm 7,030 x 2,150 x 3,000
Out side body dimension (LxWxH) mm 5250 x 2150 x 2080
Inside body dimension (LxWxH) mm 5,070 x 2,000 x 1,900
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 124(91) / 2,600
Tire size (Front / Rear) 7.00-16 14PR
MASS
Gross vehicle mass kg 4990 (5700)
Payload kg 1800 (2490)
DIMENSION
Overall OAL x OW x OH mm 6,320 x 1,850 x 2,800
Out side body dimension (LxWxH) mm 4450 x 1950 x 1950
Inside body dimension (LxWxH) mm 4,370 x 1,800 x 1,780
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 105(77) / 3,200
Tire size (Front / Rear) 7.00-15 12PR
MASS
Gross vehicle mass kg 4,950
Payload kg 1,990
DIMENSION
Overall OAL x OW x OH mm 6,110 x 1,870 x 2,850
Out side body dimension (LxWxH) mm 4400 x 1870 x 1950
Inside body dimension (LxWxH) mm 4,220 x 1,720 x 1,780
Basic specification
AC cabin standard
Engine 4JH1E4NC
Max Output Ps(kW)/rpm 105(77) / 3,200
Tire size (Front / Rear) 7.00-15 12PR
MASS
Gross vehicle mass kg 4,990
Payload kg 2,250
DIMENSION
Overall OAL x OW x OH mm 5,400 x 1,870 x 2,850
Out side body dimension (LxWxH) mm 3700 x 1870 x 1950
Inside body dimension (LxWxH) mm 3,520 x 1,720 x 1,780
