Environment

Road Sweeper

FVR34LE4 (4 x 2)

MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 6,980 x 2,500 x 3,250
wheelbase mm 4,300
Gross vehicle weight kg 15,130
Payload kg 5,000
Engine 6HK1E4NC
Engine type 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler
Displacement cc 7,790
Max Output Ps(kW)/rpm 214(177)/2,400
Max Torque N.m(kgf.m)/rpm
Tire size (Front / Rear) 11.00R20 / 11.00R20
Seating Capacity person 3
SPECIALIZED SYSTEM
Manufacturer HIEP HOA
Rear body displacement m3 6 m3
Rear body shape Curve shape
Material Stainless steel
Water pump Piston, 40liter/min
Vacuum fan Driven by belt pulley system, fan speed can be adjusted in cabin.
Dust sweep hydraulic pump Driven by P.T.O
Motor thủy lực dẫn động hệ thống chổi Operate main sweepers and side sweepers

Garbage

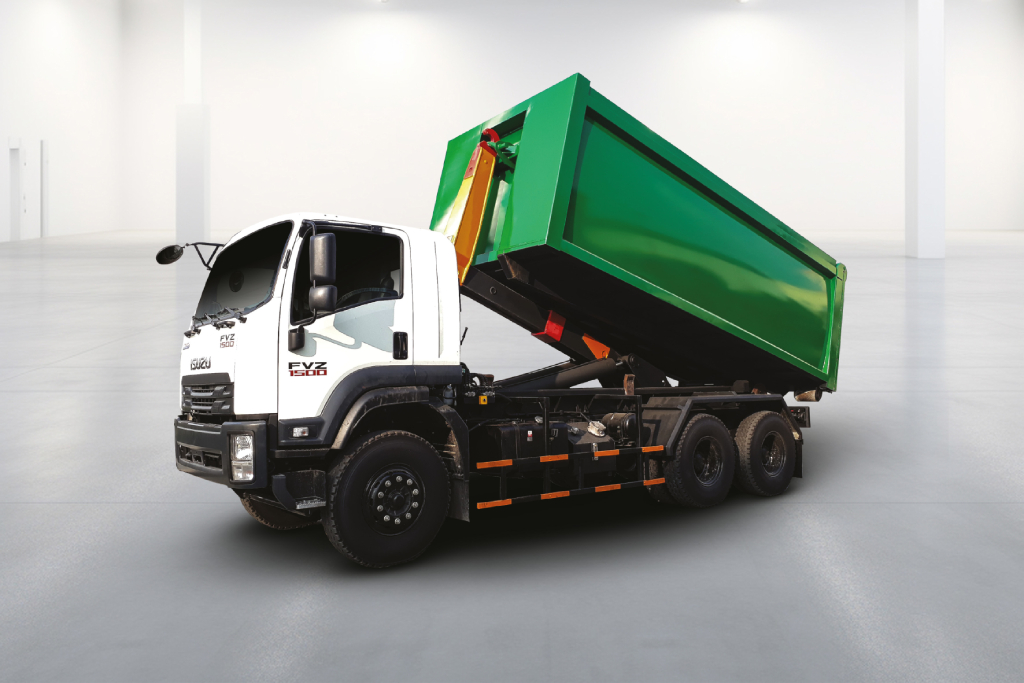

FVZ34QE4 (6 x 4)
FVR34LE4 (4 x 2)
FRR34HE4 (4 x 2)
NQR75LE4 (4 x 2)
QKR77FE4-ERNIS 040 (4 x 2)

MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 8920 x 2500 x 3440
wheelbase mm 4115 + 1370
Gross vehicle weight kg 24000
Payload kg 10100
Engine kg 6HK1E4SC
Engine type 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler
Displacement cc 7790
Max Output Ps(kW)/rpm 280(206) / 2400
Max Torque N.m(kgf.m)/rpm 882(90) / 1450
Tire size (Front / Rear) 11.00R20 / 11.00R20 (Gai hỗn hợp)
Seating Capacity person 3
SPECIALIZED SYSTEM
Rear body displacement m3 20
Rear body shape Curve shape on the top of rear body, avoid rear body deformation
Material SPA-H steel, Japan
Hydraulic system Imported parts from Europe
Intake garbage structure Standard 249-660 liter bin clip
Discharge gabage structure Under floor main sliprail & sub rail installed on the top corner of rear body
Wastewater hose & storage Seal structure, store and discharge wastewwater from rear body
MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 8070 x 2500 x 3280
wheelbase mm 4300
Gross vehicle weight kg 16000
Payload kg 6500
Engine kg 6HK1E4NC
Engine type 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler
Displacement cc 7790
Max Output Ps(kW)/rpm 241(177)/2400
Max Torque N.m(kgf.m)/rpm 706(72) / 1450
Tire size (Front / Rear) 11.00R20 / 11.00R20
Seating Capacity person 3
SPECIALIZED SYSTEM
Rear body displacement m3 14
Rear body shape Curve shape on the top of rear body, avoid rear body deformation
Material SPA-H steel, Japan
Hydraulic system Imported parts from Europe
Intake garbage structure Standard 249-660 liter bin clip
Discharge gabage structure Under floor main sliprail & sub rail installed on the top corner of rear body
Wastewater hose & storage Seal structure, store and discharge wastewwater from rear body
MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 6605 x 2330 x 2790
wheelbase mm 3410
Gross vehicle weight kg 11000
Payload kg 4200
Engine kg 4HK1E4CC
Engine type 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler
Displacement cc 5193
Max Output Ps(kW)/rpm 190(140)/2600
Max Torque N.m(kgf.m)/rpm 513(52) / 1600~2600
Tire size (Front / Rear) 8.25-16 18PR (Gai ngang)
Seating Capacity person 3
SPECIALIZED SYSTEM
Rear body displacement m3 11
Rear body shape Curve shape on the top of rear body, avoid rear body deformation
Material SPA-H steel, Japan
Hydraulic system Imported parts from Europe
Intake garbage structure Standard 249-660 liter bin clip
Discharge gabage structure Under floor main sliprail & sub rail installed on the top corner of rear body
Wastewater hose & storage Seal structure, store and discharge wastewwater from rear body
MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 7460 x 2170 x 2540
wheelbase mm 4175
Gross vehicle weight kg 9500
Payload kg 3420
Engine kg 4HK1E4NC
Engine type 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler
Displacement cc 5193
Max Output Ps(kW)/rpm 155(114) / 2600
Max Torque N.m(kgf.m)/rpm 419(43) / 1600~2600
Tire size (Front / Rear) 8.25-16 14PR
Seating Capacity người/person 3
SPECIALIZED SYSTEM
Rear body displacement m3 7
Rear body shape Curve shape on the top of rear body, avoid rear body deformation
Material SPA-H steel, Japan
Hydraulic system Imported parts from Europe
Intake garbage structure Standard 249-660 liter bin clip
Discharge gabage structure Under floor main sliprail & sub rail installed on the top corner of rear body
Wastewater hose & storage Seal structure, store and discharge wastewwater from rear body
MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 5410 x 1900 x 2350
wheelbase mm 2750
Gross vehicle weight kg 4990
Payload kg 1550
Engine kg 4JH1E4NC
Engine type 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler
Displacement cc 2999
Max Output Ps(kW)/rpm 105(77) / 3200
Max Torque N.m(kgf.m)/rpm 230(23) / 2000~3200
Tire size (Front / Rear) 7.00-15 12PR
Seating Capacity person 3
SPECIALIZED SYSTEM
Rear body displacement m3 4
Rear body shape Curve shape on the top of rear body, avoid rear body deformation
Material SPA-H steel, Japan
Hydraulic system Imported parts from Europe
Intake garbage structure Standard 249-660 liter bin clip
Discharge gabage structure Under floor main sliprail & sub rail installed on the top corner of rear body
Wastewater hose & storage Seal structure, store and discharge wastewwater from rear body

Tank

FVZ34QE4 (6 x 4) TANK TRUCK

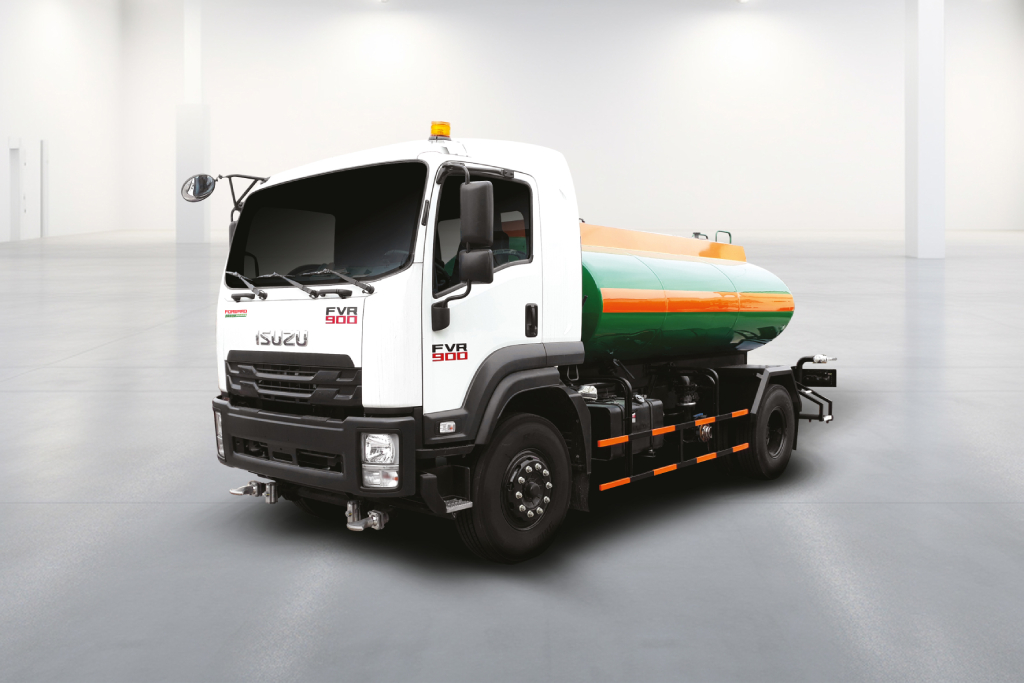

FVR34LE4 (4 x 2)

MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 8810 x 2500 x 3080
wheelbase mm 4115 + 1370
Gross vehicle weight kg 23800
Engine kg 6HK1E4SC
Engine type 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler
Displacement cc 7790
Max Output Ps(kW)/rpm 280(206) / 2400
Max Torque N.m(kgf.m)/rpm 882(90) / 1450
Tire size (Front / Rear) 11.00R20 / 11.00R20
Seating Capacity person 3
SPECIALIZED SYSTEM
Manufacturer HIEP HOA
Structure Elipse column
Tank dimension 5700/5540 x 2410 x 1410
Tank displacement 15 m3
Material Anti corrosion & anti acid specialized steel
Water pump Flow 60m3/h
pressure column 90m
Safety structure wave wall
MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 7660 x 2500 x 3080
wheelbase mm 4300
Gross vehicle weight kg 16000
Engine kg 6HK1E4NC
Engine type 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler
Displacement cc 7790
Max Output Ps(kW)/rpm 241(177)/2400
Max Torque N.m(kgf.m)/rpm 706(72) / 1450
Tire size (Front / Rear) 11.00 R20/11.00 R20
Seating Capacity person 3
SPECIALIZED SYSTEM
Manufacturer HIEP HOA
Structure Elipse column
Tank dimension 4220/4100 x 2100 x 1240
Tank displacement 8,5 m3
Material Anti corrosion & anti acid specialized steel
Water pump Flow 60m3/h
pressure column 90m
safety structure wave wall

Vacuum

FVR34LE4 (4 x 2)
FRR34HE4 (4 x 2)

MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 7660 x 2500 x 3080
wheelbase mm 4300
Gross vehicle weight kg 16000
Payload kg
Engine kg 6HK1E4NC
Engine type 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler
Displacement cc 7790
Max Output Ps(kW)/rpm 241(177)/2400
Max Torque N.m(kgf.m)/rpm 706(72) / 1450
Tire size (Front / Rear) 11.00 R20/11.00 R20
Seating Capacity person 3
SPECIALIZED SYSTEM
Manufacturer HIEP HOA
MAIN SPECIFICATIONS
Overall OAL x OW x OH mm 6180 x 2470 x 3300
wheelbase mm 3410
Gross vehicle weight kg 10000
Payload kg 3700
Engine kg 4HK1E4CC
Engine type 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler
Displacement cc 5193
Max Output Ps(kW)/rpm 190(140)/2600
Max Torque N.m(kgf.m)/rpm 513(52) / 1600~2600
Tire size (Front / Rear) 8.25-16 14PR (Gai ngang)
Seating Capacity person 3
SPECIALIZED SYSTEM
Manufacturer HIEP HOA
