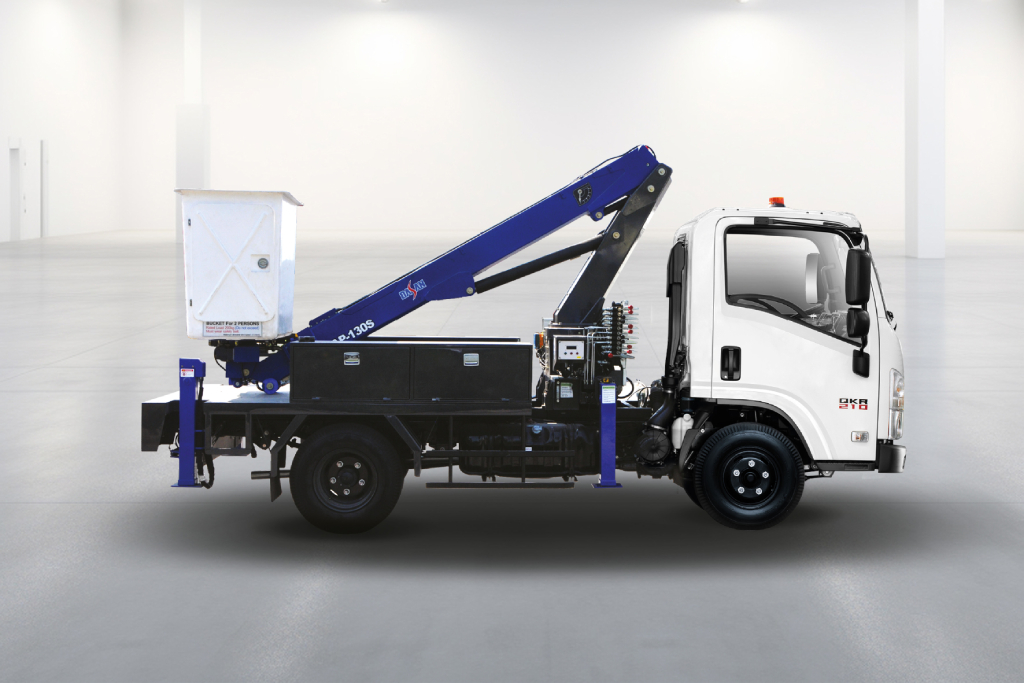

QKR77FE5-TNNIS 130 (4 x 2)
| MAIN SPECIFICATIONS |
| Overall OAL x OW x OH |
mm |
5150 x 1875 x 2700 |
| wheelbase |
mm |
2750 |
| Gross vehicle weight |
kg |
3645 |
| Payload |
kg |
1200 |
| Engine |
|
4JH1E4NC |
| Engine type |
|
4 stroke, In-line 4 cylinders Common rail, turbo-intercooler |
| Displacement |
cc |
2999 |
| Max Output |
Ps(kW)/rpm |
105(77) / 3200 |
| Max Torque |
N.m(kgf.m)/rpm |
230(23) / 2000~3200 |
| Tire size (Front / Rear) |
|
7.00-15 12PR |
| Seating Capacity |
person |
3 |
| SPECIALIZED SYSTEM |
| Manufacturer |
|
SAMCO |
| Max |
m |
13 |
| Chiều cao làm việc tính đến đáy rổ |
m |
11 |
| Bán kính làm việc an toàn lớn nhất |
m |
7.8 |
| Permitted payload |
kg |
200 (2 persons & 3 devices) |
| Telescopic type |
section |
3 |
| Lift angle |
degree |
-30~79 |
| Rotation angle |
degree |
190 |
| Front holder |
|
H shape/3.50m (max) |
| Rear holder |
|
H shape/3.54m (max) |
| Under cabin holder |
option |
A shape/1.08m (max) |
| Booth dimension |
|
1060 x 820 x 1100 |
| Booth Material |
|
F.R.P. Composite |
| Operation mode |
|
Normal; fast; emergency mode |
| Control |
|
Controlled by lever, wireless remote control |
| Safety features |
|
Emergency stop; monitor and automatic warning device, auto balance system |
