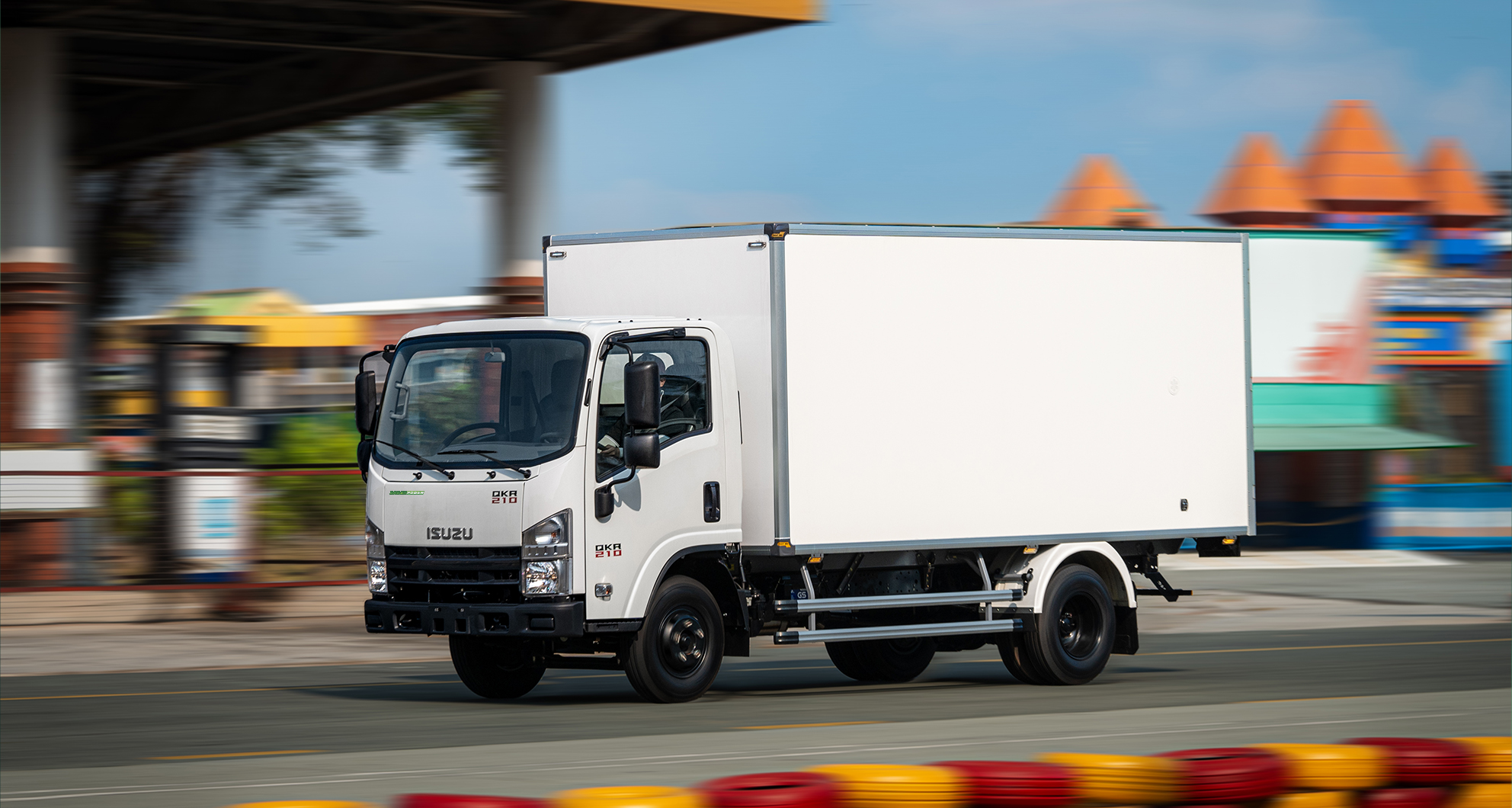

ISUZU Truck - QMR77HE4A - QUYEN AUTO.DLAS

OVERVIEW

model ISUZU Truck - QMR77HE4A - QUYEN AUTO.DLAS

Gross vehicle mass	4,990 (kg)
Payload	1,990 (kg)
Dimension	6,240 x 1,950 x 2,850 (mm)
Max. power	105 (77) / 3,200 (Ps(kW) / rpm)
Emission	Euro 4
Suggested retail price	800,181,818 VND

* Applied for cabin chassis ans freezer body. (Price is included VAT)

download brochure

ENGINE

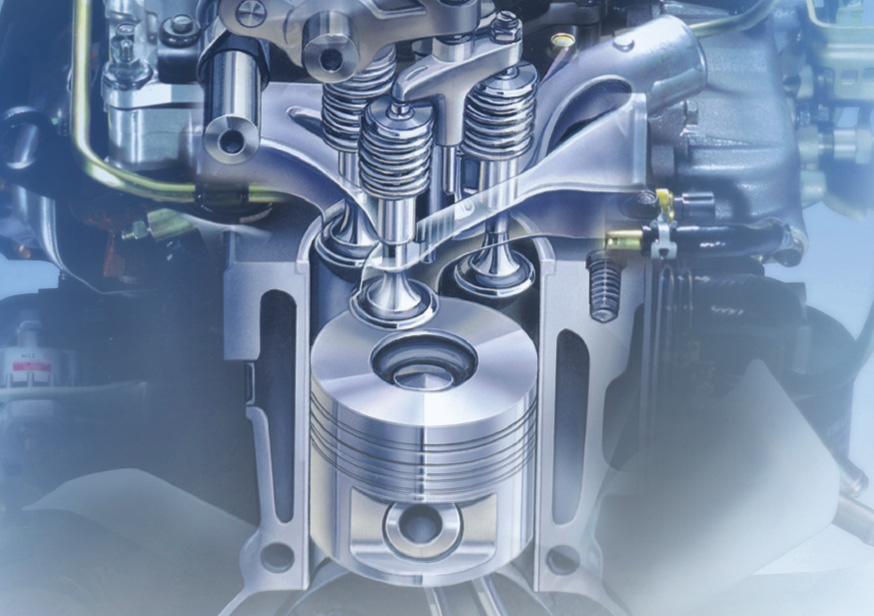

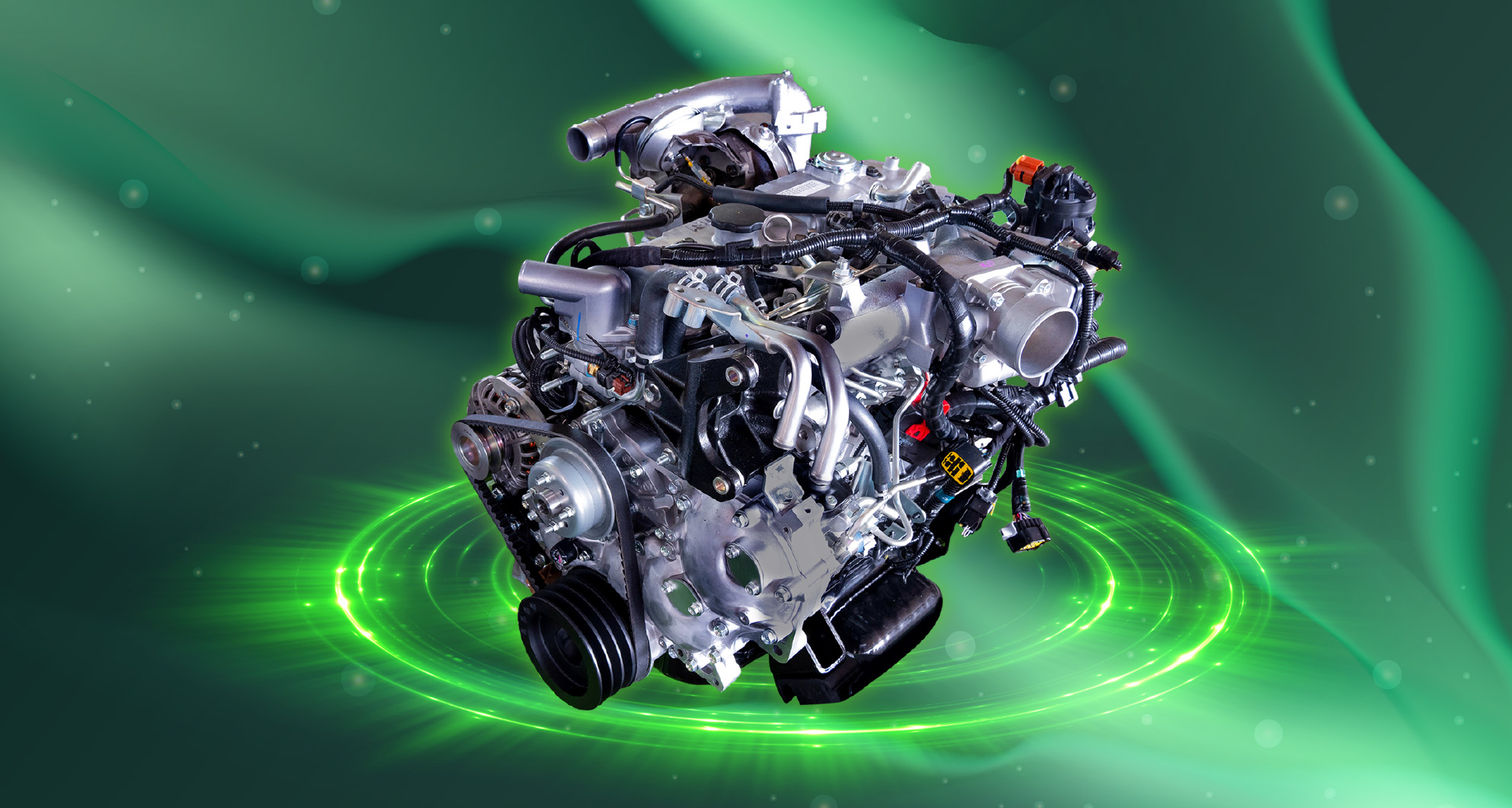

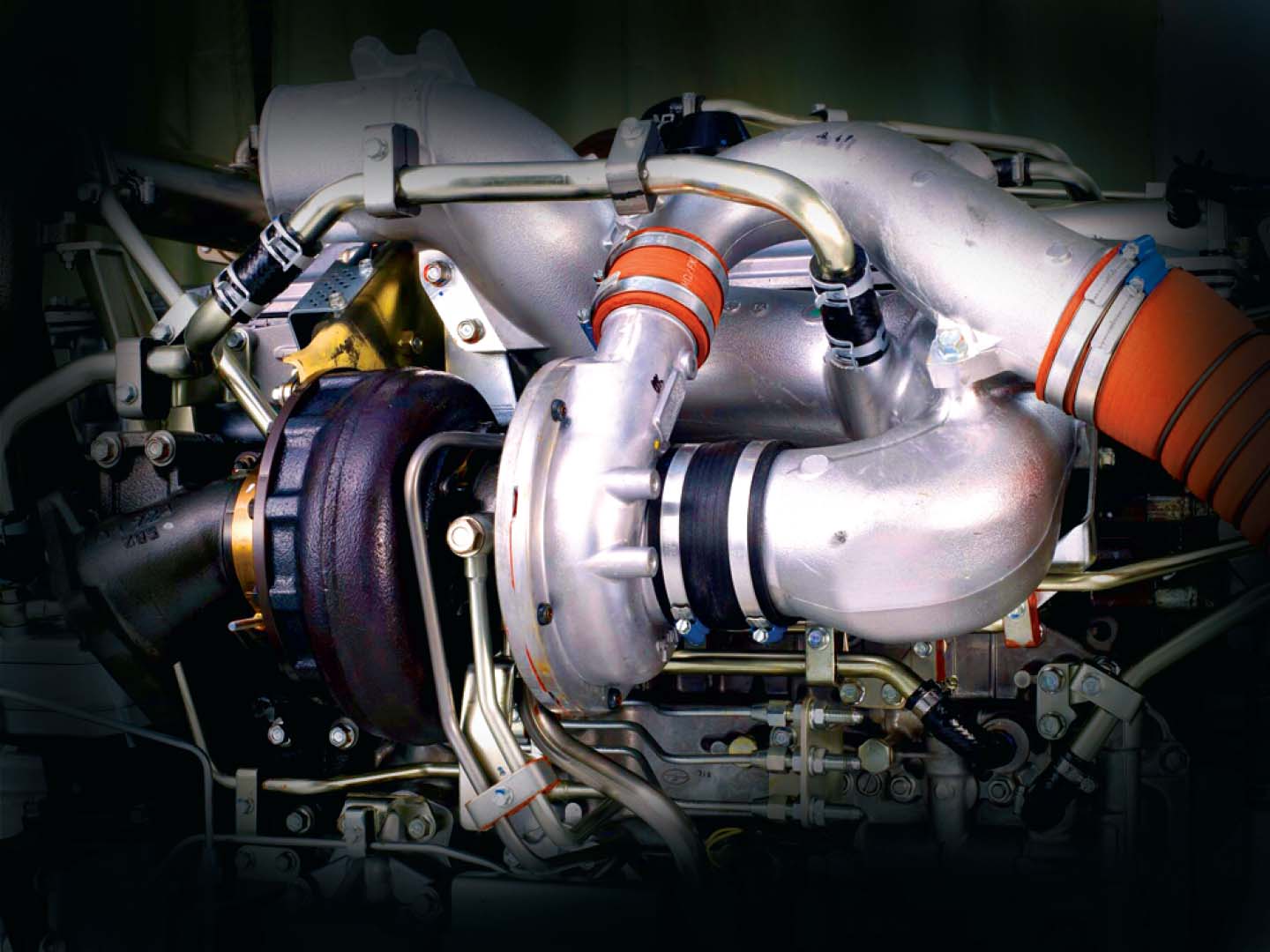

Common rail engine, turbo intercooler, Blue Power Technology

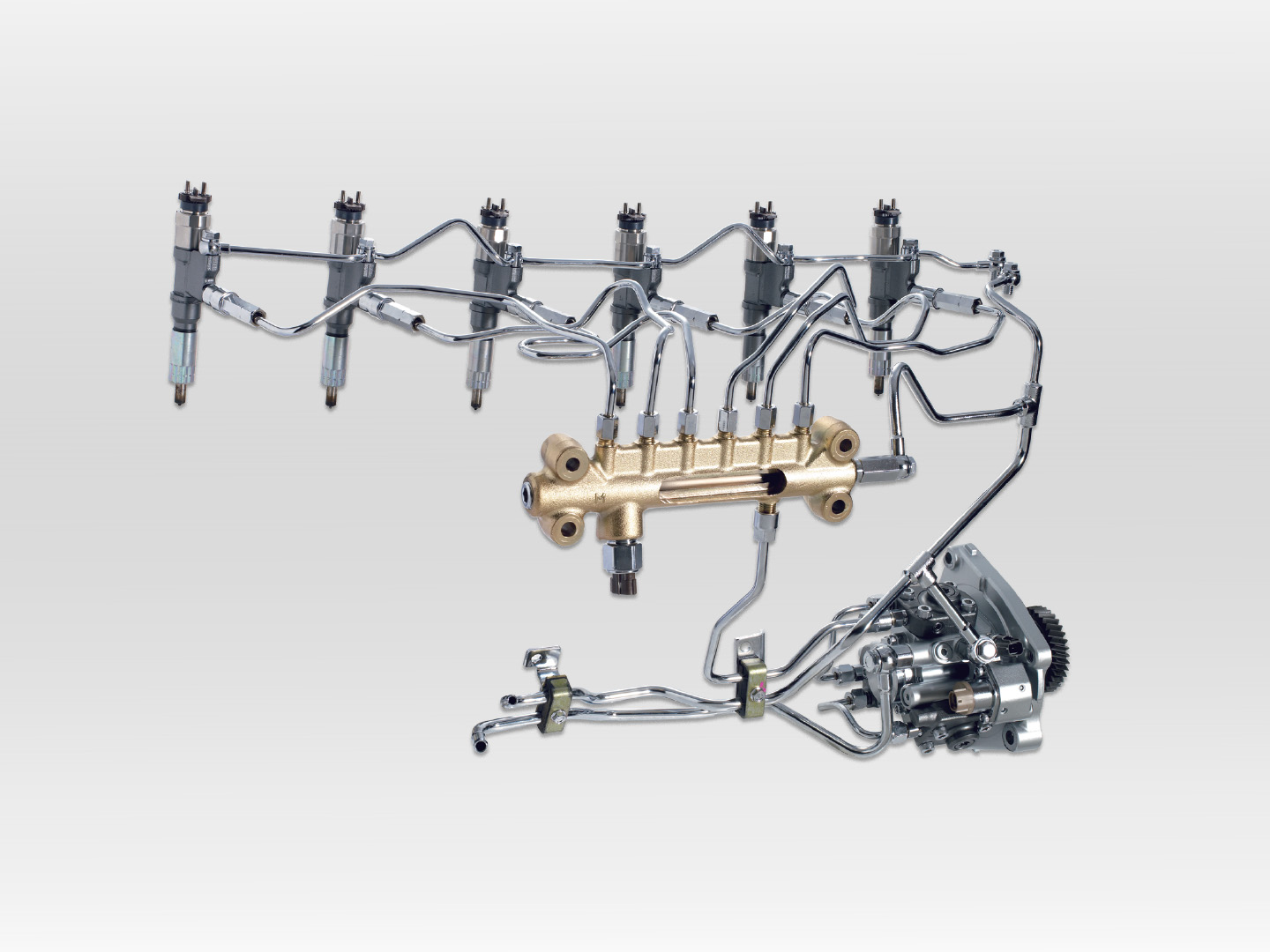

Hi-pressure common rail injection system

FREEZER BODY

Freezer Body

Cabin roof rail

Aluminum alloy door hinge

Stainless steel 304 door lock

Rear defence

Impact resistent rubbers on doors

Impact resistent rubbers

Warning buzzer

aluminum alloy side members

Rear height warning lamps

Front height warning lamps

Side lamps

Composite corner cover

Side defence

Stainless steel floor

Mud guard

Evaporator unit

4 heat retaining layers

Exterior

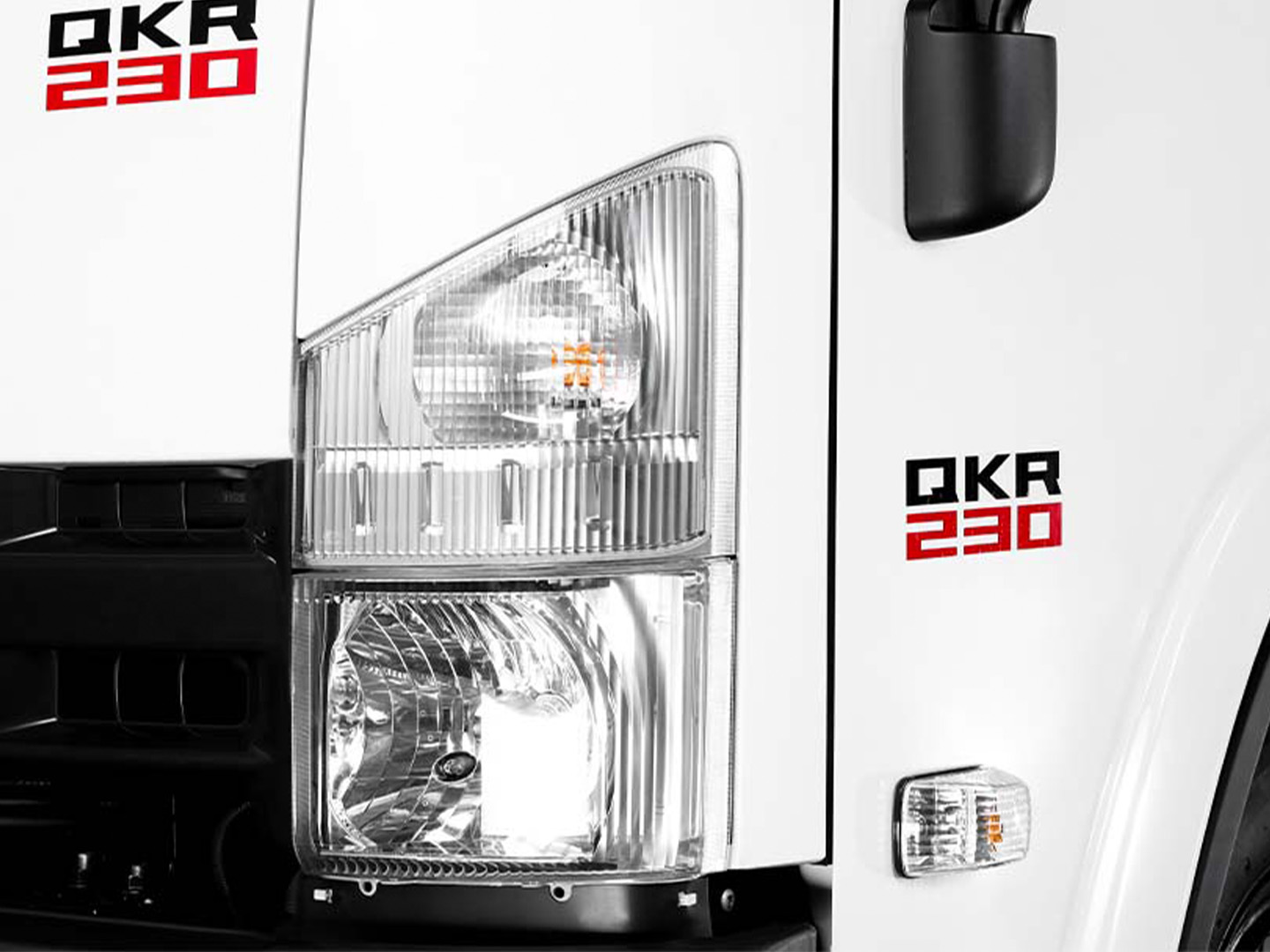

Large-sized front lamp cluster, increased lighting ability.

The cabin is 115mm wider, increasing the width of the box.

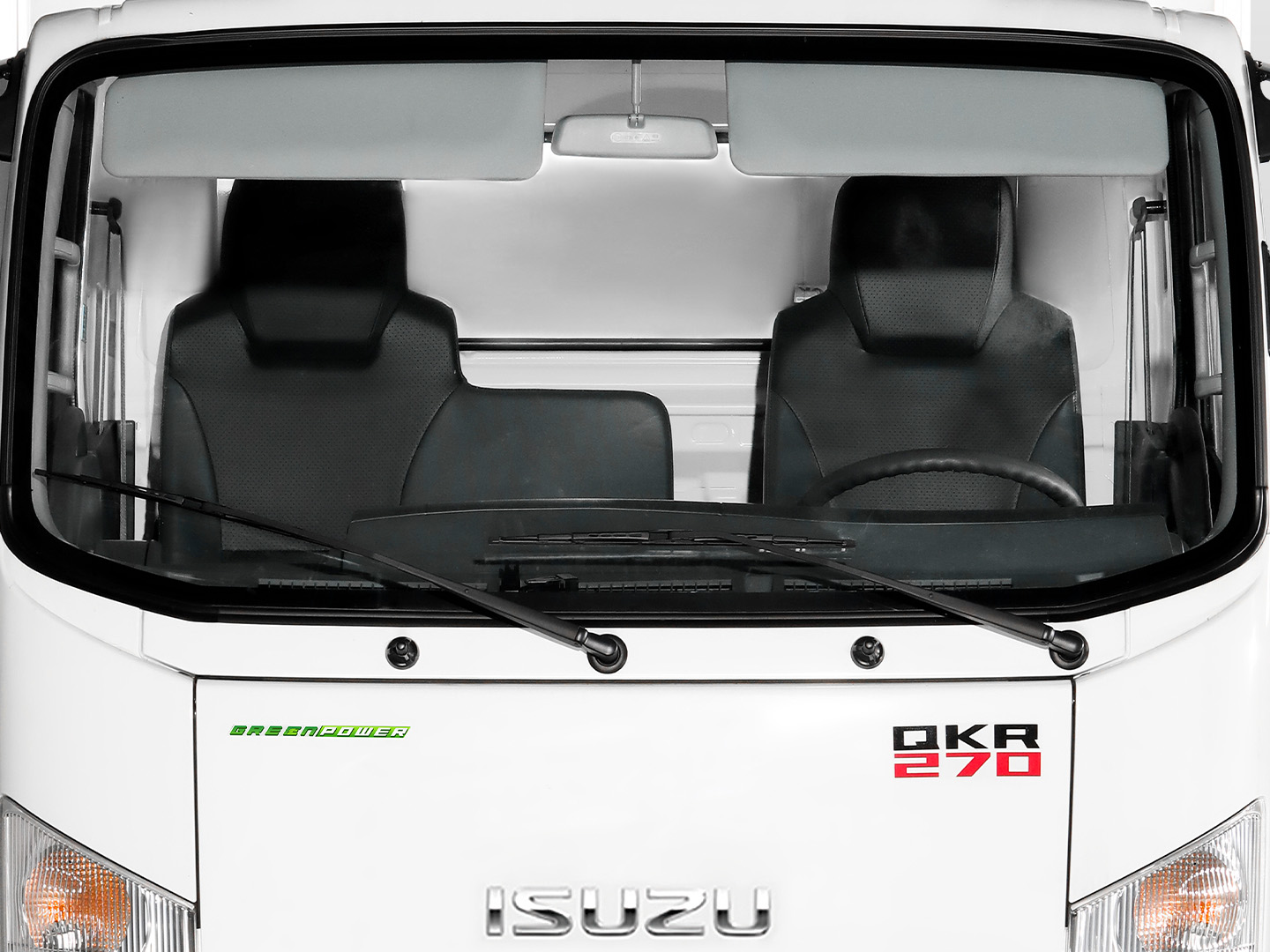

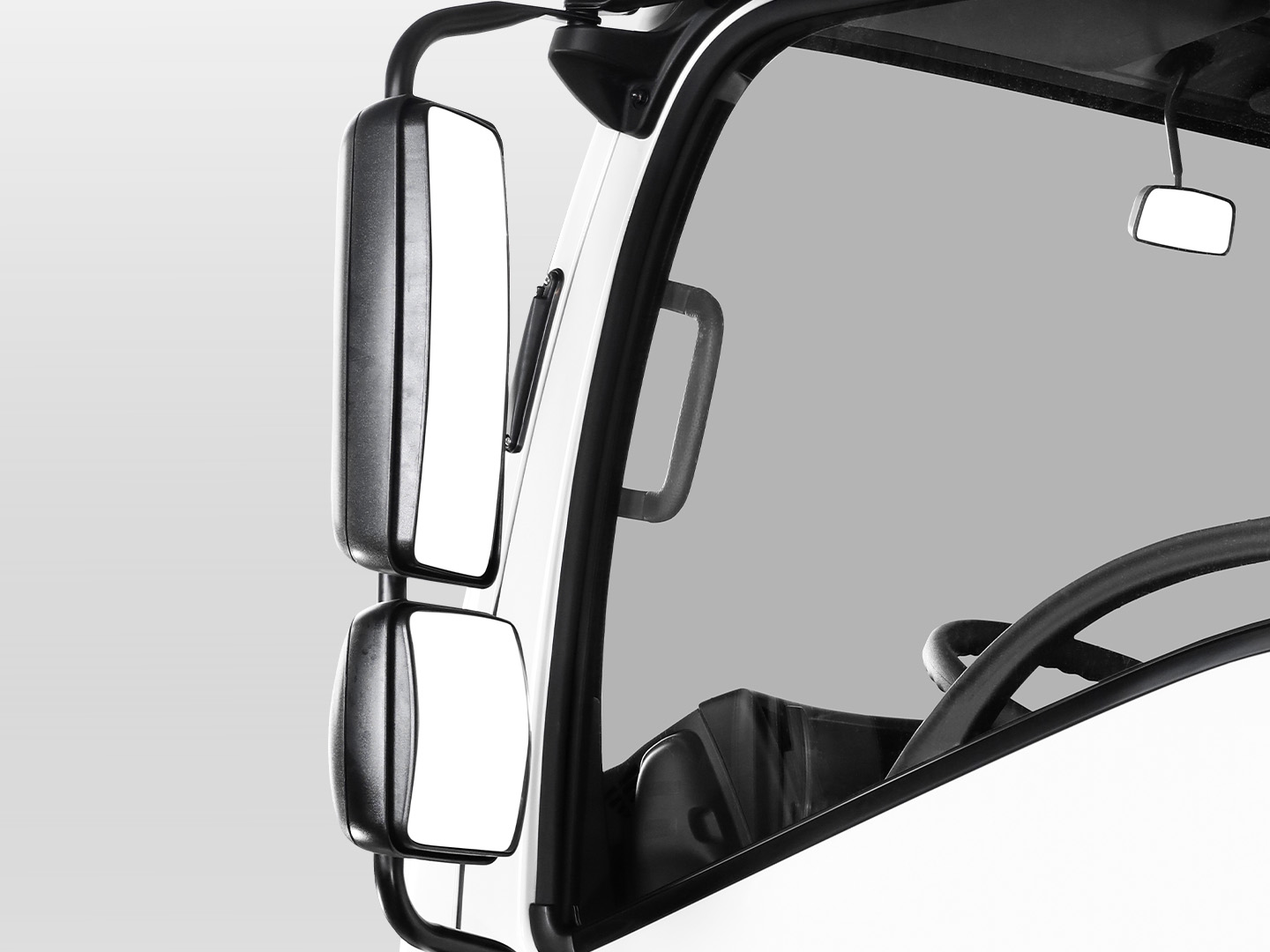

Dual rearview mirror cluster, maximize visibility.

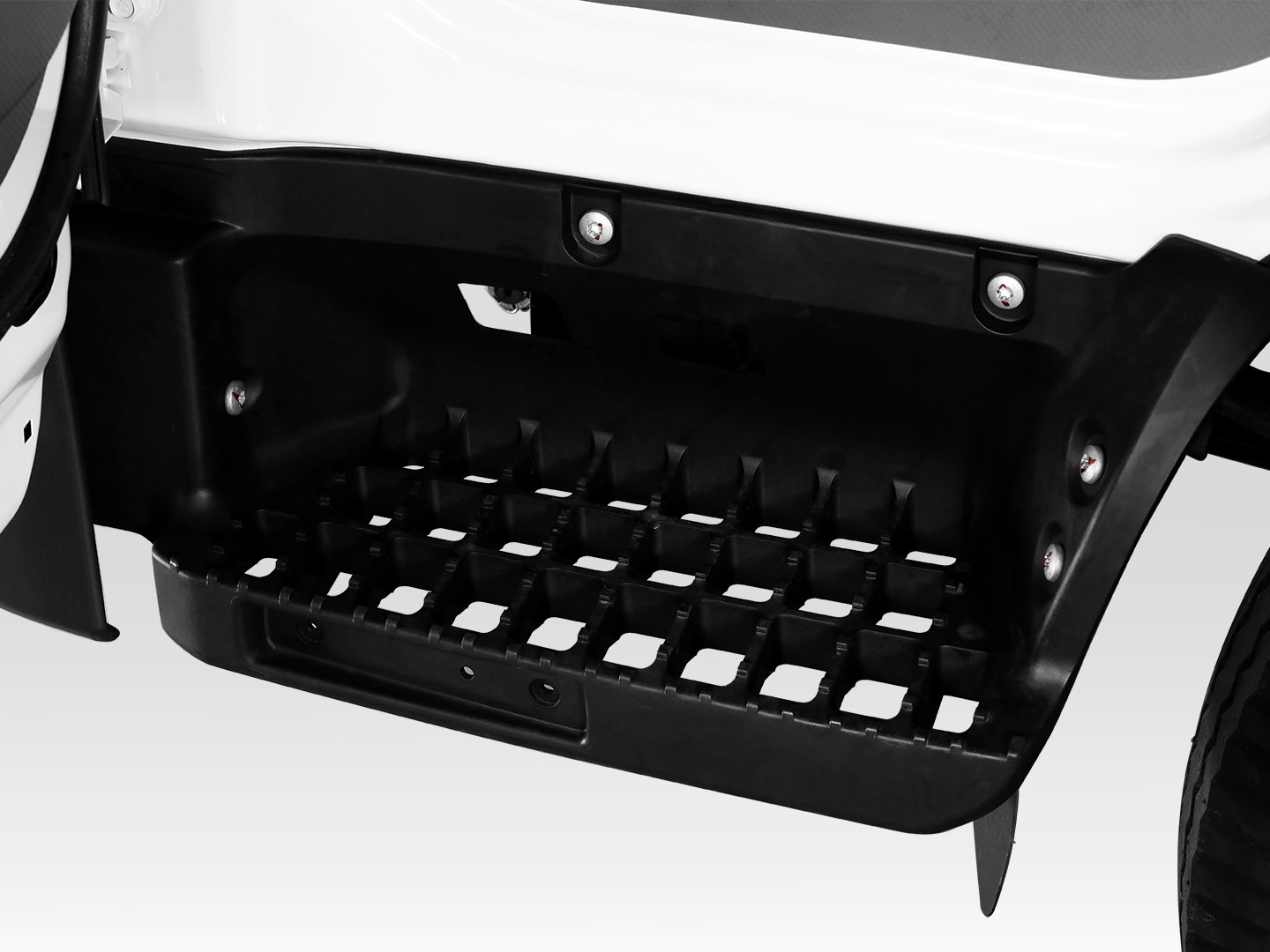

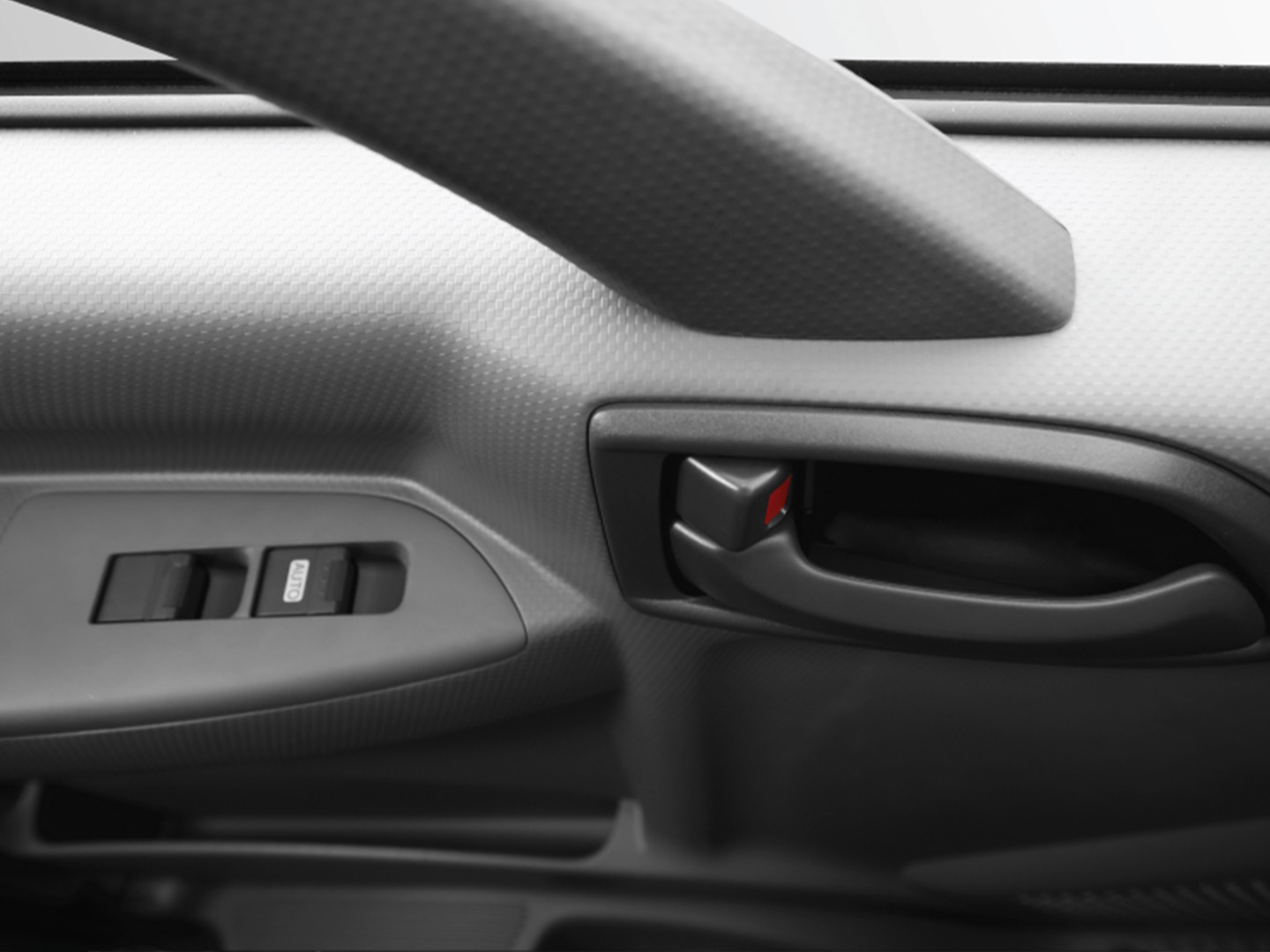

Door handles, side step are convenient for use

Interior

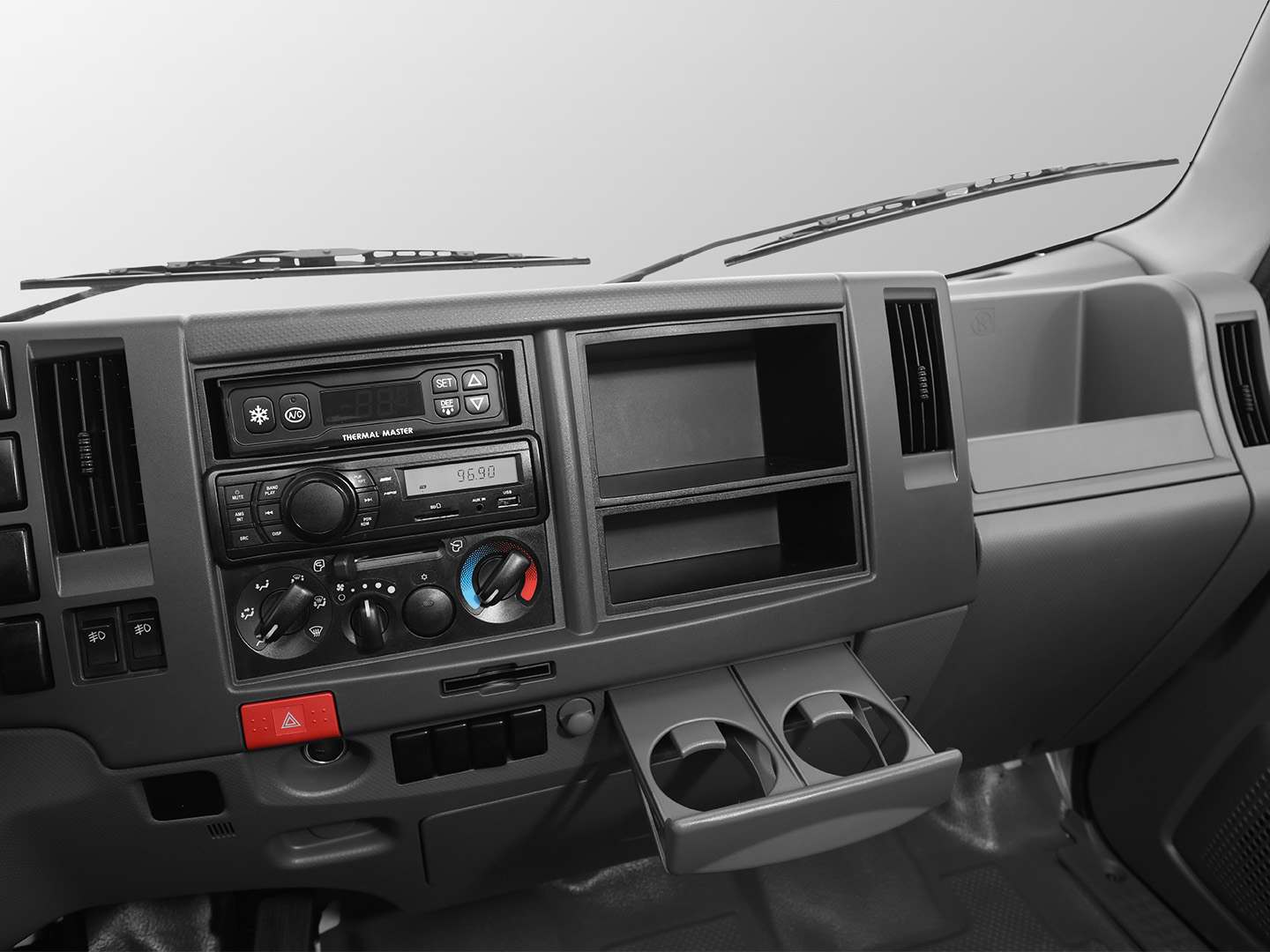

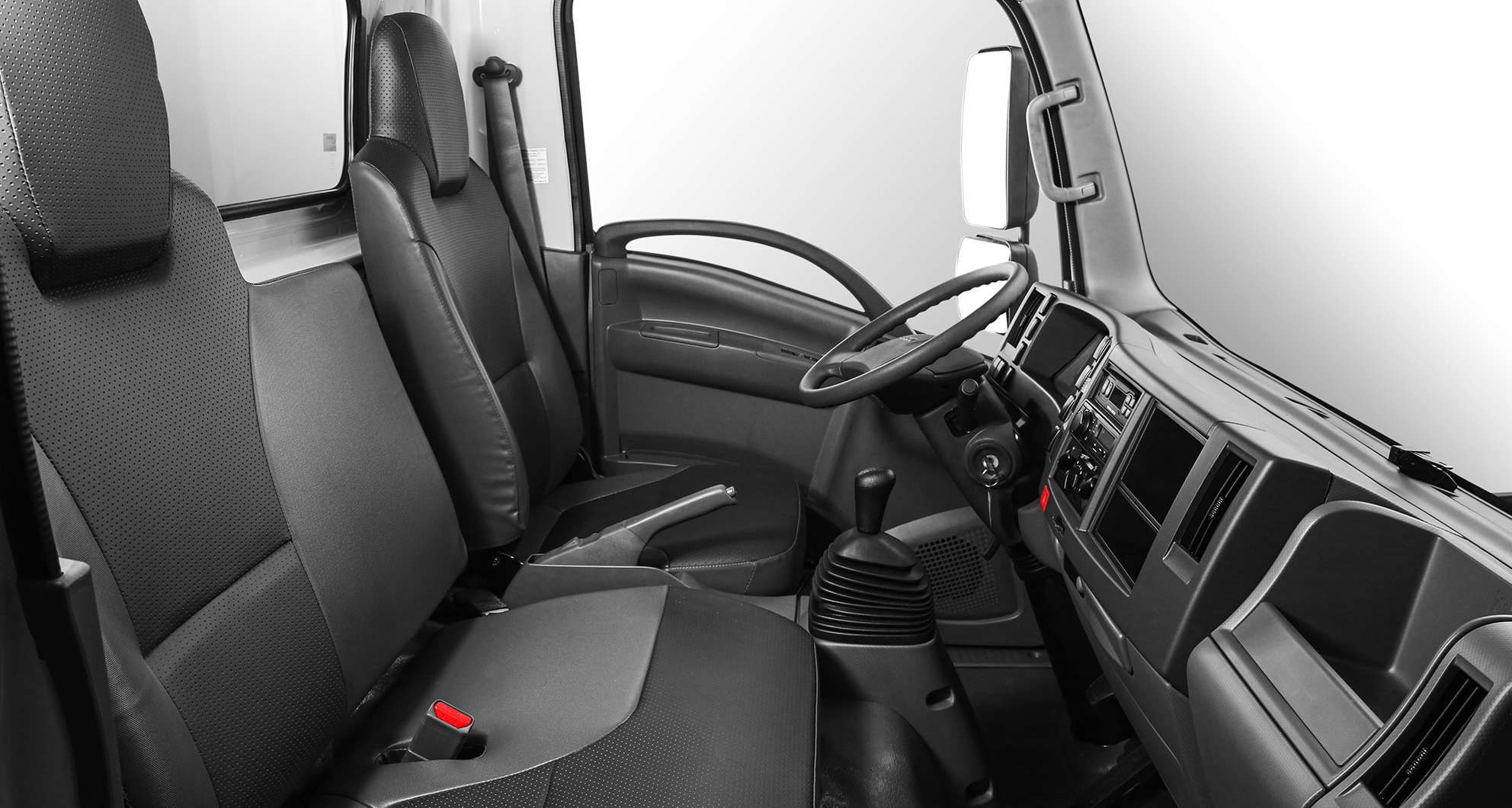

Large, Spacious & Safe interior compartment

The seats are upholstered in industrial leather. Luxurious and easy to clean

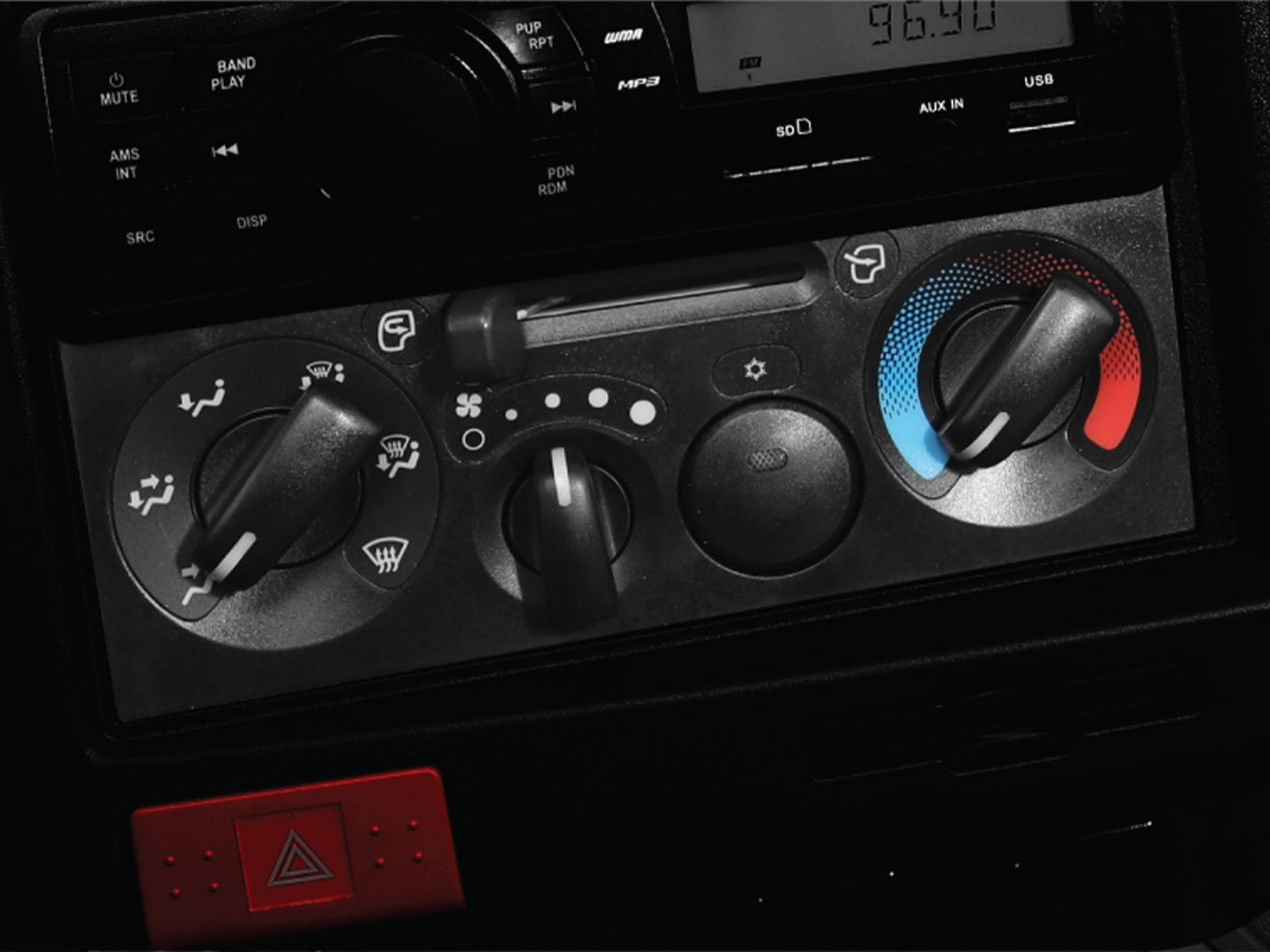

Genuine air conditioning system imported from Japan.

specification

MASS

DIMENSION

ENGINE & TRANSMISSION

BASIC SYSTEMS

BODY STRUCTURE

ACCESSORIES

Refrigeration systems

Gross vehicle mass	Kg	4,990
Kerb weight	Kg	2,805
Payload	Kg	1,990
Number of seats	Person	3

Overall Dimension (OAL x OW X OH)	mm	6,240 x 1,950 x 2,850
Body’s external (LxWxH)	mm	4,450 x 1,950 x 1,950
Body’s internal (LxWxH)	mm	4,270 x 1,810 x 1,770

Model		4JH1E4NC

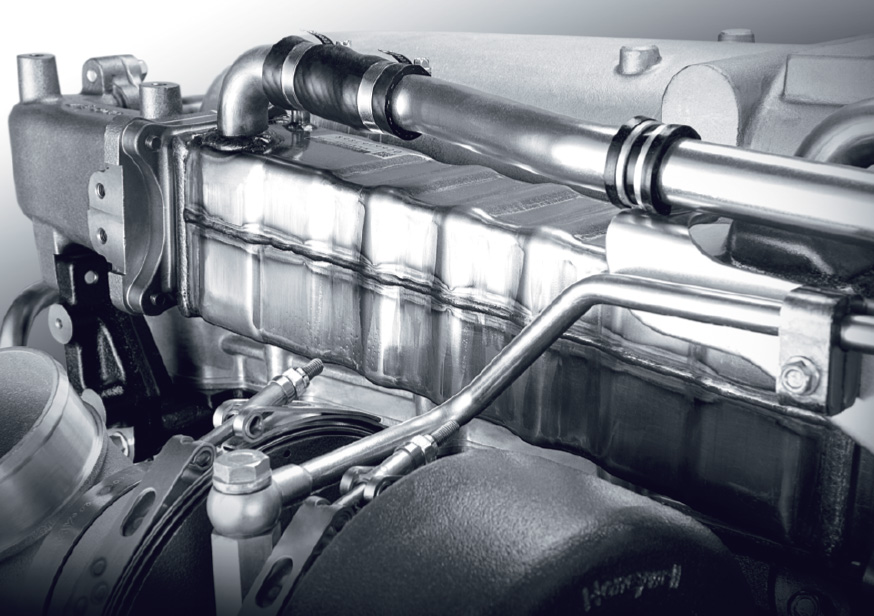

Systems		Common rail, turbo-intercooler, EGR & DOC
Emission		EURO 4
Max. power	Ps(kW) / rpm	105 (77) / 3,200
Max. torque	N.m(kgf.m) / rpm	230 (23) / 1,400 ~ 3,200
Transmission	N.m(kgf.m) / rpm	MSB5S 5 Forward & 1 Reverse

Steering system	Recirculating ball with hydraulic assisted
Suspension system front – rear	Dependent, leafspring, shock absorber
Brake system front – rear	Drum, hydraulic with vacuum servo assistance, dual circuit
Tire size front – rear	7.00 – 15 12PR
Generator	14V-60A/ 14V-90A

Interior and exterior panel skin	Imported FRP-GRP
Panel Insulation	XPS
Panel thickness	Side wall: 65 mm Front wall: 65 mm Rear door: 65 mm Roof wall: 80 mm Floor panel: 85 mm
Floor	Corrugated 304 stainless steel
Rear door frame	Alloy Aluminum
Side door	Standard

Rack Cab Guard & Ladder	Standard 304-Stainless steel
Door handle	304-Stainless steel
Hinges	Aluminium
Profiles (top, bottom, front)	Aluminium
Corner-lights	04 lights
Mudguard and side fender	Standard
Rear step	Standard
Side LED lights	Standard (06 pcs)
Ceiling light	Standard
Warning buzzer	Standard

Refrigeration unit	Thermal Master T-2500 (Korea)
Power	2,600 Walt
Gas type	R404a
Temperature	-18°C

*Specifications and equipment are subject to change without prior notice
