| Gross Vehicle Mass | 7,200 (KG) |
|---|---|
| Overall Dimension | 6,680 x 2,120 x 2,305 (mm) |
| Max. Power | 124(91) / 2600 (Ps(kW) / rpm) |
| Emission Standard | EURO 5 |
| Manufacturers Name | Isuzu Vietnam Co., Ltd |
| Manufacturers Address | 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City |
| Origin | Vietnam |
| Suggested retail price | 775,656,000 VNĐ |
* * Applied for cabin chassis. (Price is included VAT)
| Gross Vehicle Mass | Kg | 7,200 |
| Kerb Mass | Kg | 2,490 |
| Number of Seats | Persons | 03 |
| Fuel Tank | Liter | 100 |
| Overall Dimension (OL x OW x OH) | mm | 6,680 x 2,120 x 2,305 |
| Wheelbase (WB) | mm | 3,815 |
| Front – Rear Tread (AW / CW) | mm | 1,680 / 1,650 |
| Ground Clearance (HH) | mm | 200 |
| Front – Rear Overhang (FOH/ROH) | mm | 1,110 / 1,755 |

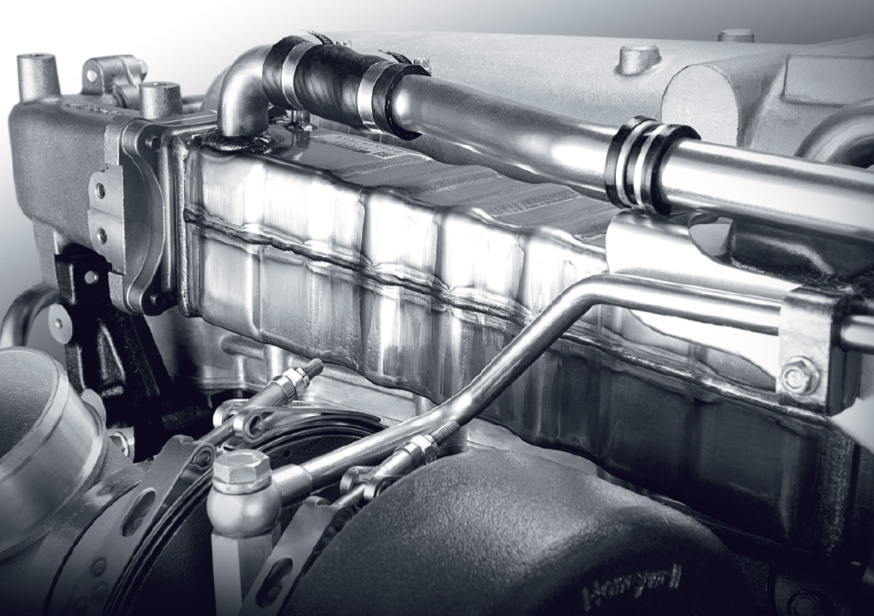

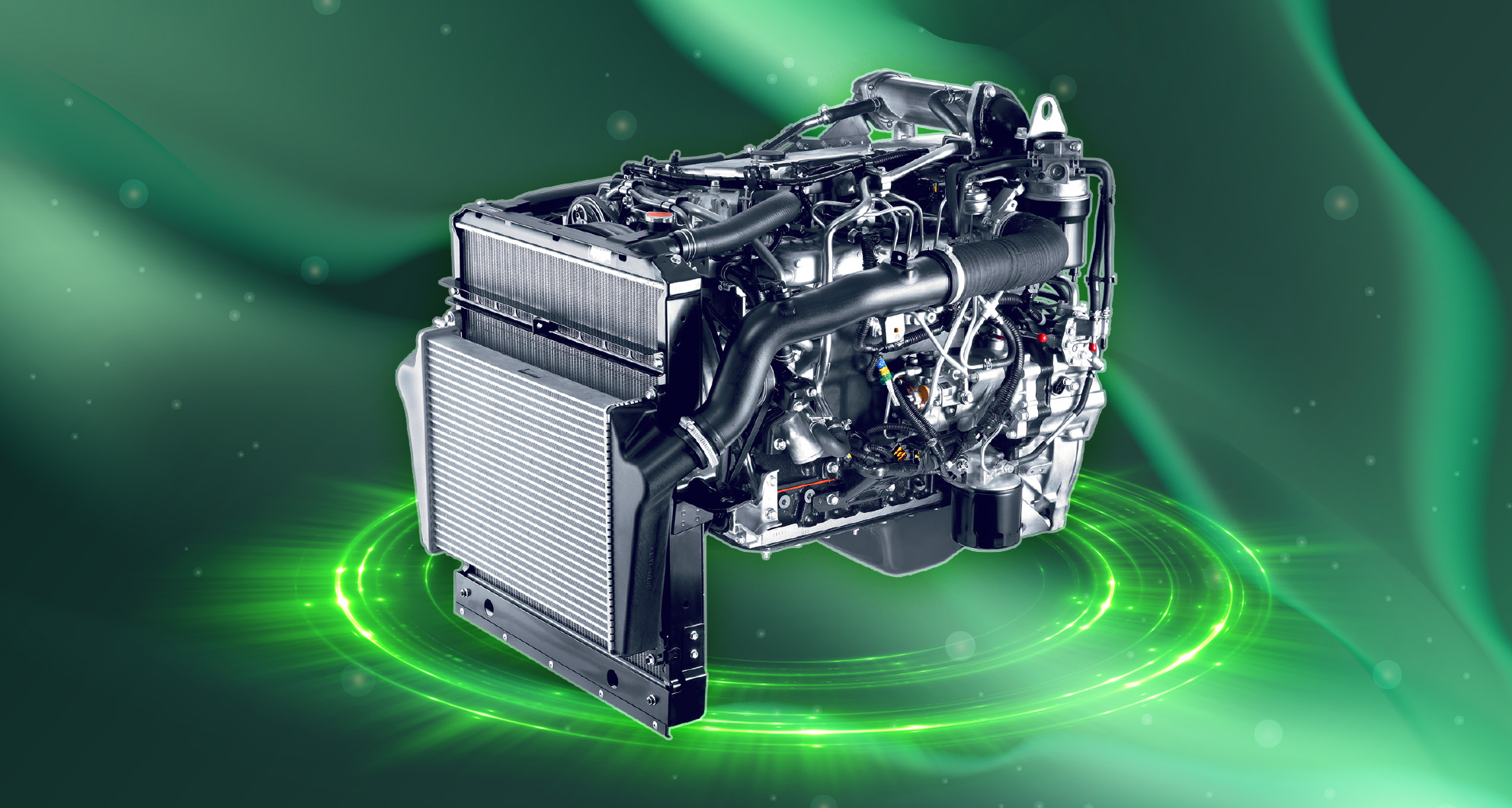

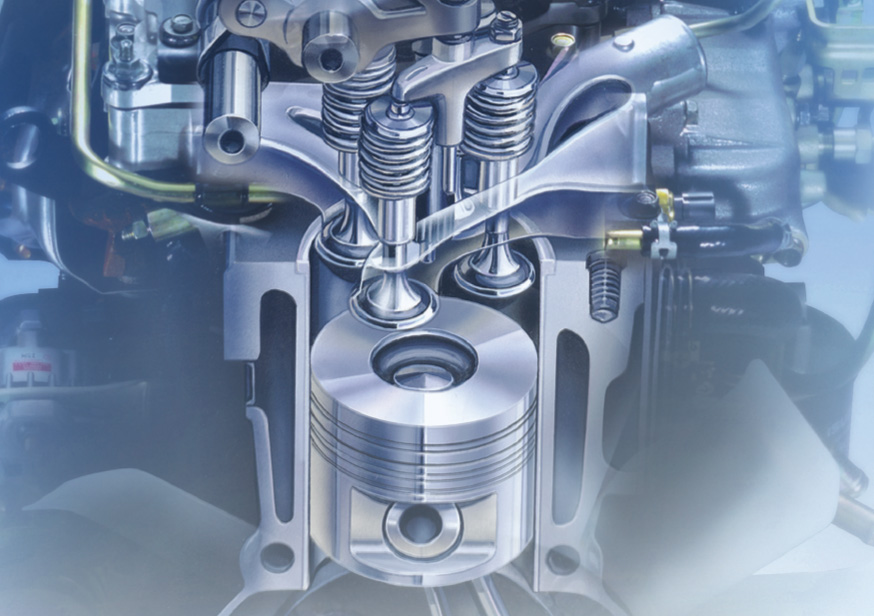

| Model | 4JJ1E5LE | |

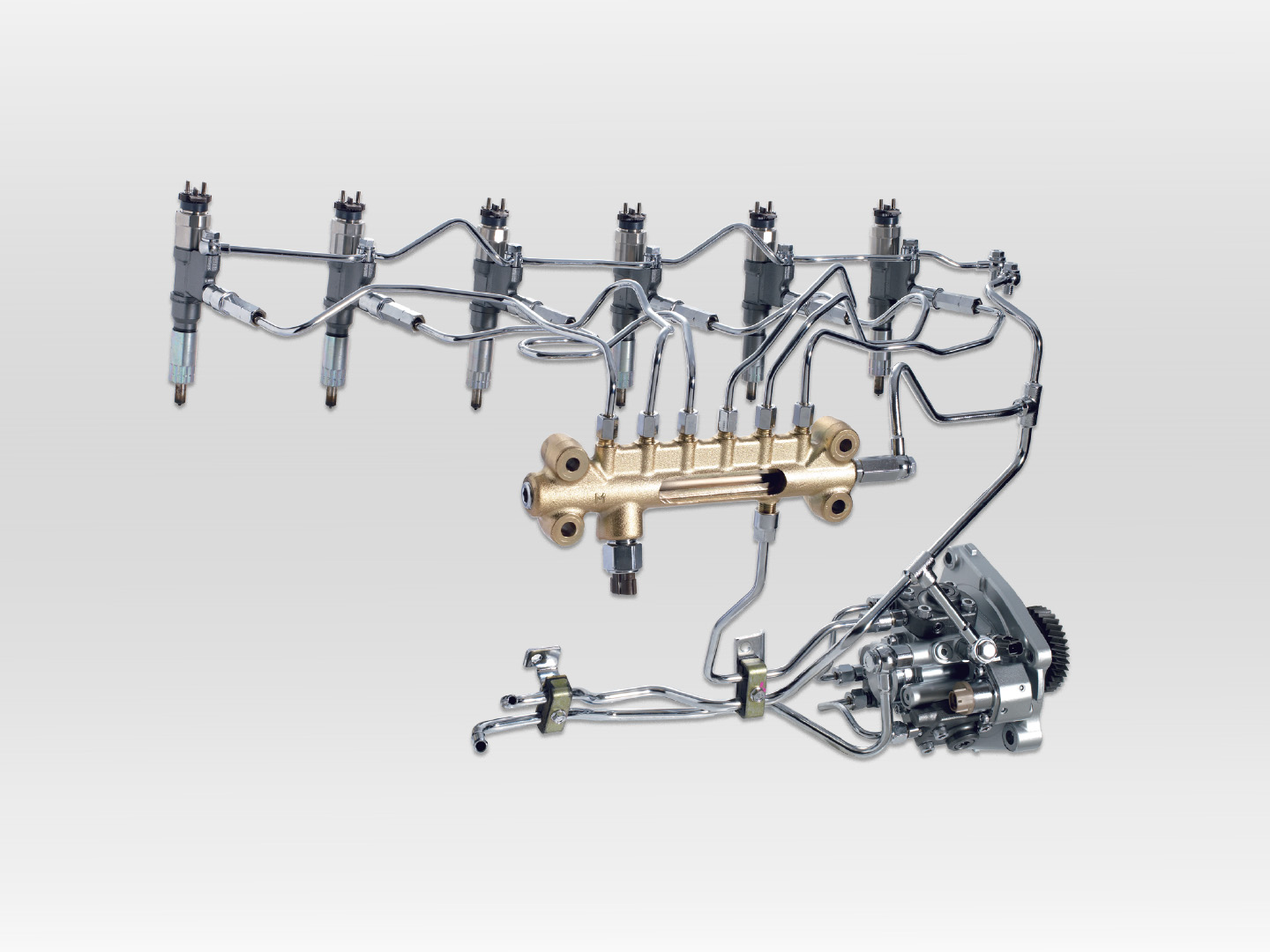

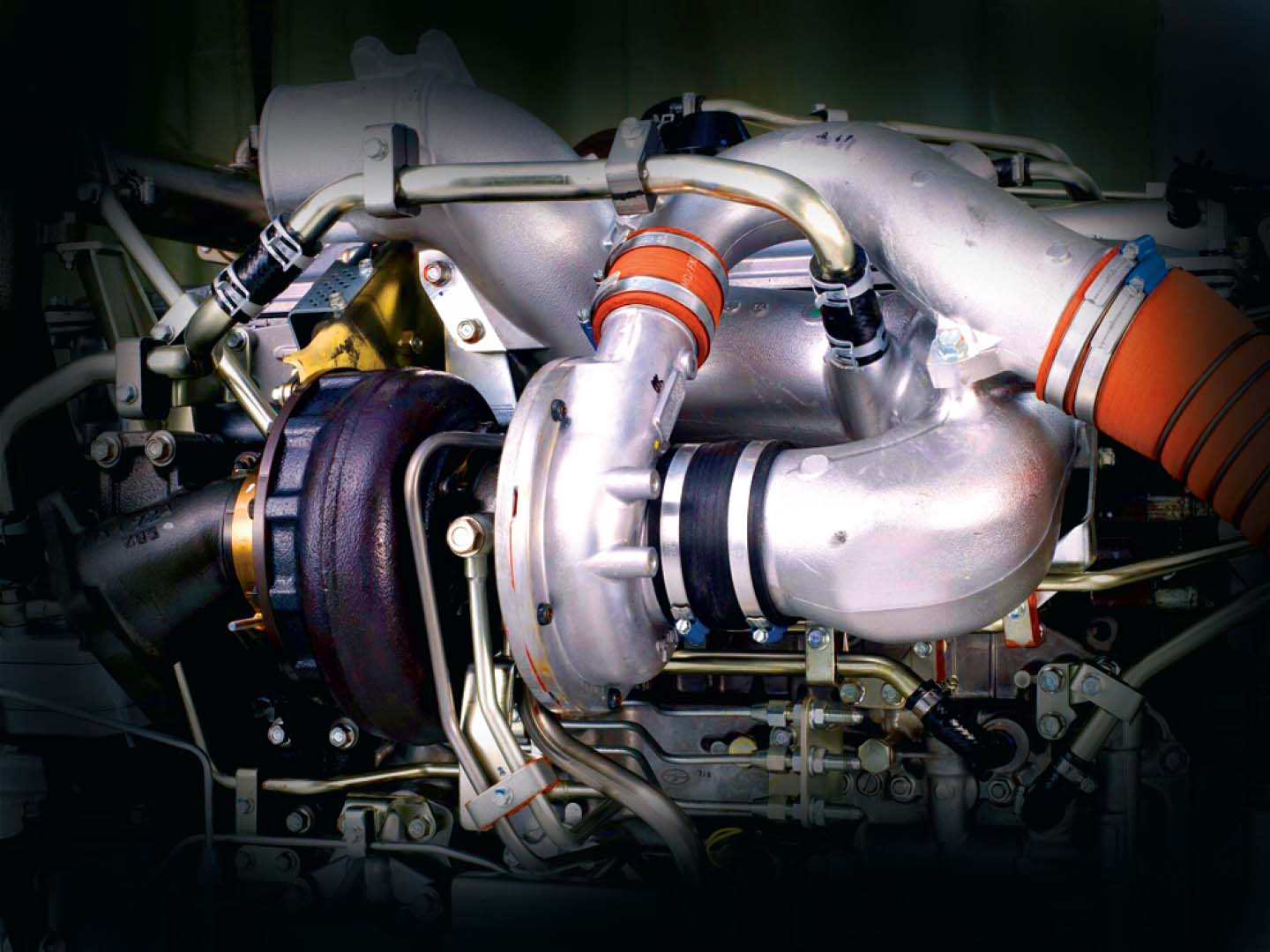

| Type | Common rail, turbo – intercooler | |
| Emission Standard | Euro 5 | |
| Displacement | cc | 2,999 |
| Max. Power | Ps(kW) / rpm | 124 (91) / 2,600 |
| Max. Torque | N.m(kgf.m) / rpm | 354 (36.1) / 1,500 |
| Transmission | MYY6S
6 Forward & 1 Reverse |
|
| PTO | – |
| Max Speed | Km/h | 88 |
| Gradeability | % | 35 |
| Min Turning Radius | m | 7.1 |
| Steering System | Recirculating ball with hydraulic assisted |
| Suspension System Front – Rear | Dependent, leaf springs, shock absorber |
| Brake System Front – Rear | Drum, hydraulic with vacuum servo assistance, dual circuit |
| Tire Size Front – Rear | Standard: 7.50R16 Option: 7.50-16 14PR |
| Generator | 24V-50A |
| Battery | 12V-70(AH) x 02 |
