Public Service
Aerial Platform
QKR77HE4-TNNIS 180 (4 x 2)
QKR77FE4-TNNIS 150 (4 x 2)
QKR77FE4-TNNIS 130 (4 x 2)
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 5800 x 1860 x 2600 |
| wheelbase | mm | 3360 |
| Gross vehicle weight | kg | |
| Payload | kg | |
| Engine | 4JH1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 2999 |
| Max Output | Ps(kW)/rpm | 105(77) / 3200 |
| Max Torque | N.m(kgf.m)/rpm | 230(23) / 2000~3200 |
| Tire size (Front / Rear) | 7.00-15 12PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | SAMCO | |
| Max | m | 18 |
| Chiều cao làm việc tính đến đáy rổ | m | 16 |
| Bán kính làm việc an toàn lớn nhất | m | 8.5 |
| Permitted payload | kg | 300 (2 persons & device) |
| Telescopic type | section | 5 |
| Lift angle | degree | -26~77 |
| Rotation angle | degree | 250 |
| Front holder | X shape/3.79m (max) | |
| Rear holder | H shape/3.44m (max) | |
| Under cabin holder | option | A shape/1.08m (max) |
| Booth dimension | 1250 x 600 x 1040 (Extended dimension: 2390 x 860 x 1040) |
|
| Booth Material | Anti-slippery steel & alloy | |
| Operation mode | Normal; fast; emergency mode | |
| Control | Controlled by lever, wireless remote control | |
| Safety features | Emergency stop; monitor and automatic warning device, auto balance system | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 5400 x 1875 x 2750 |
| wheelbase | mm | 2750 |
| Gross vehicle weight | kg | 4990 |
| Payload | kg | 1200 |
| Engine | 4JH1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 2999 |
| Max Output | Ps(kW)/rpm | 105(77) / 3200 |
| Max Torque | N.m(kgf.m)/rpm | 230(23) / 2000~3200 |
| Tire size (Front / Rear) | 7.00-15 12PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | SAMCO | |
| Max | m | 15 |
| Chiều cao làm việc tính đến đáy rổ | m | 13 |
| Bán kính làm việc an toàn lớn nhất | m | 8.0 |
| Permitted payload | kg | 200 (2 persons & 01 device) |
| Telescopic type | section | 4 |
| Lift angle | degree | -30~79 |
| Rotation angle | degree | 200 |
| Front holder | H shape/3.50m (max) | |
| Rear holder | H shape/3.54m (max) | |
| Under cabin holder | option | A shape/1.08m (max) |
| Booth dimension | 1060 x 820 x 1100 | |
| Booth Material | F.R.P. Composite | |
| Operation mode | Normal; fast; emergency mode | |
| Control | Controlled by lever, wireless remote control | |
| Safety features | Emergency stop; monitor and automatic warning device, auto balance system | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 5150 x 1875 x 2700 |
| wheelbase | mm | 2750 |
| Gross vehicle weight | kg | 3645 |
| Payload | kg | 1200 |
| Engine | 4JH1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 2999 |
| Max Output | Ps(kW)/rpm | 105(77) / 3200 |
| Max Torque | N.m(kgf.m)/rpm | 230(23) / 2000~3200 |
| Tire size (Front / Rear) | 7.00-15 12PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | SAMCO | |
| Max | m | 13 |
| Chiều cao làm việc tính đến đáy rổ | m | 11 |
| Bán kính làm việc an toàn lớn nhất | m | 7.8 |
| Permitted payload | kg | 200 (2 persons & 3 devices) |
| Telescopic type | section | 3 |
| Lift angle | degree | -30~79 |
| Rotation angle | degree | 190 |
| Front holder | H shape/3.50m (max) | |
| Rear holder | H shape/3.54m (max) | |
| Under cabin holder | option | A shape/1.08m (max) |
| Booth dimension | 1060 x 820 x 1100 | |
| Booth Material | F.R.P. Composite | |
| Operation mode | Normal; fast; emergency mode | |
| Control | Controlled by lever, wireless remote control | |
| Safety features | Emergency stop; monitor and automatic warning device, auto balance system | |

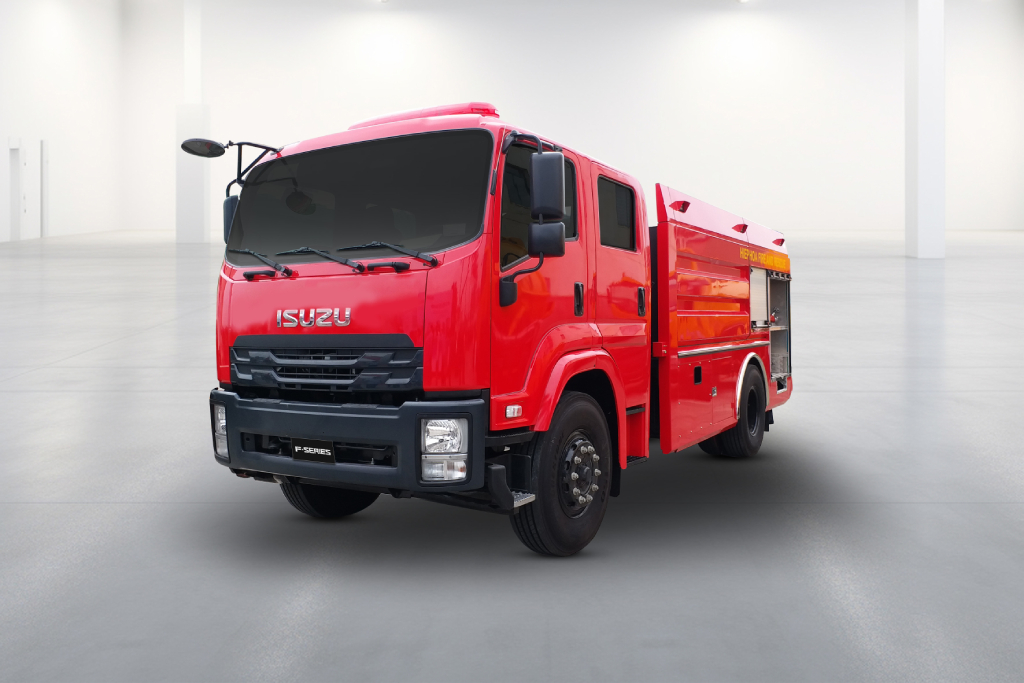

Firefighting Truck
FVR34LE4 (4 x 2)
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7870 x 2485 x 3050 |
| wheelbase | mm | 4300 |
| Gross vehicle weight | kg | 15600 |
| Payload | kg | 6660 |
| Engine | 6HK1E4NC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 214(177)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00 R20/11.00 R20 | |
| Seating Capacity | person | 3 |
Recovery Truck
NQR75LE4 (4 x 2)
NQR75ME4 (4 x 2)
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7710 x 2230 x 2330 |
| wheelbase | mm | 4175 |
| Gross vehicle weight | kg | 9000 |
| Payload | kg | 3500 |
| Engine | 4HK1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 155(114) / 2600 |
| Max Torque | N.m(kgf.m)/rpm | 419(43) / 1600~2600 |
| Tire size (Front / Rear) | 8.25-16 14PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | HIEP HOA | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 8270 x 2310 x 2800 |
| wheelbase | mm | 4475 |
| Gross vehicle weight | kg | 9500 |
| Payload | kg | 2800 |
| Engine | 4HK1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 155(114) / 2600 |
| Max Torque | N.m(kgf.m)/rpm | 419(43) / 1600~2600 |
| Tire size (Front / Rear) | 8.25-16 14PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Manufacturer | SAMCO | |
| Floor dimension (OLxOW) | mm | 6150 x 2250 |
| Floor material | Anti Anti corrosion alloy steel SPA-H (Japan) | |
| Pulley | Imported, driven by hydraulic motor, standard tow hook | |
| Max traction | tấn | 4 |
| Cable length | m | 29 |
| Hydraulic system | Imported | |
| Control system | Wireless remote control | |
