Construction
Crane

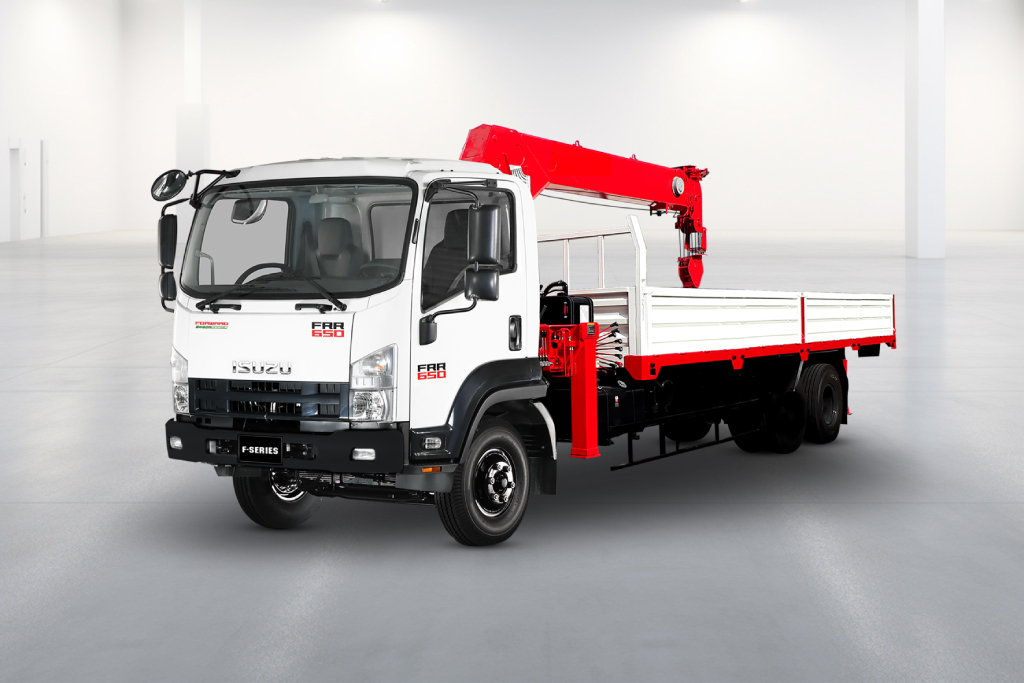

FRR90NE4 (4x2)
FVM34WE4 (6 x 2)
FVR34QE4 (4 x 2)
NQR75LE4 (4 x 2)
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 8650 x 2480 x 3000 |
| Body inside Dimension | 6000 x 2350 x 500 | |
| wheelbase | mm | 3410 |
| Gross vehicle weight | kg | 10850 |
| Payload | kg | 3400~5650 |
| Engine | 4HK1E4CC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 190 (140) / 2,600 |
| Max Torque | N.m(kgf.m)/rpm | 513 (52) / 1,600~2,600 |
| Tire size (Front / Rear) | 8.25-16 18PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | TADANO TM-ZE304MH | |
| Section | 4 | |
| Crane length | 3,3 – 10 | |
| Max lift capacity | 3030kg @ 2,5 m | |
| Max height | m | 11,4 |
| Max radius | m | 9,8 |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 11580 x 2500 x 3580 |
| Body inside Dimension | 8000 x 2350 x 640 | |
| wheelbase | mm | 5825 + 1370 |
| Gross vehicle weight | kg | 24000 |
| Payload | kg | 9200~13800 |
| Engine | 6HK1E4SC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 280(206)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 882(90) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | UNIC URV805YK-CNB | |
| Section | 5 | |
| Crane length | 4,4 – 15,9 | |
| Max lift capacity | 8070kg @ 2,5 m | |
| Max height | m | 17,5 |
| Max radius | m | 15,6 |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 9650 x 2485 x 3440 |
| Body inside Dimension | 6480 x 2340 x 450 | |
| wheelbase | mm | 5560 |
| Gross vehicle weight | kg | 15300 |
| Payload | kg | 4500~6800 |
| Engine | 6HK1E4NC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 241(177)/2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | UNIC URV554K-TH | |
| Section | 4 | |
| Crane length | 3,6 – 10,9 | |
| Max lift capacity | 5050kg @ 2,5 m | |
| Max height | m | 12,7 |
| Max radius | m | 10,6 |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7580 x 2250 x 2960 |
| Body inside Dimension | 4850 x 2110 x 400 | |
| wheelbase | mm | 4175 |
| Gross vehicle weight | kg | 9500 |
| Payload | kg | 3650~4600 |
| Engine | 4HK1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 5193 |
| Max Output | Ps(kW)/rpm | 155(114) / 2600 |
| Max Torque | N.m(kgf.m)/rpm | 419(43) / 1600~2600 |
| Tire size (Front / Rear) | 8.25-16 14PR | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Crane type | UNIC URV343K | |
| Section | 3 | |
| Crane length | 3,3 – 7,7 | |
| Max lift capacity | 3030kg @ 2,7 m | |
| Max height | m | 9,5 |
| Max radius | m | 7,5 |
Dump

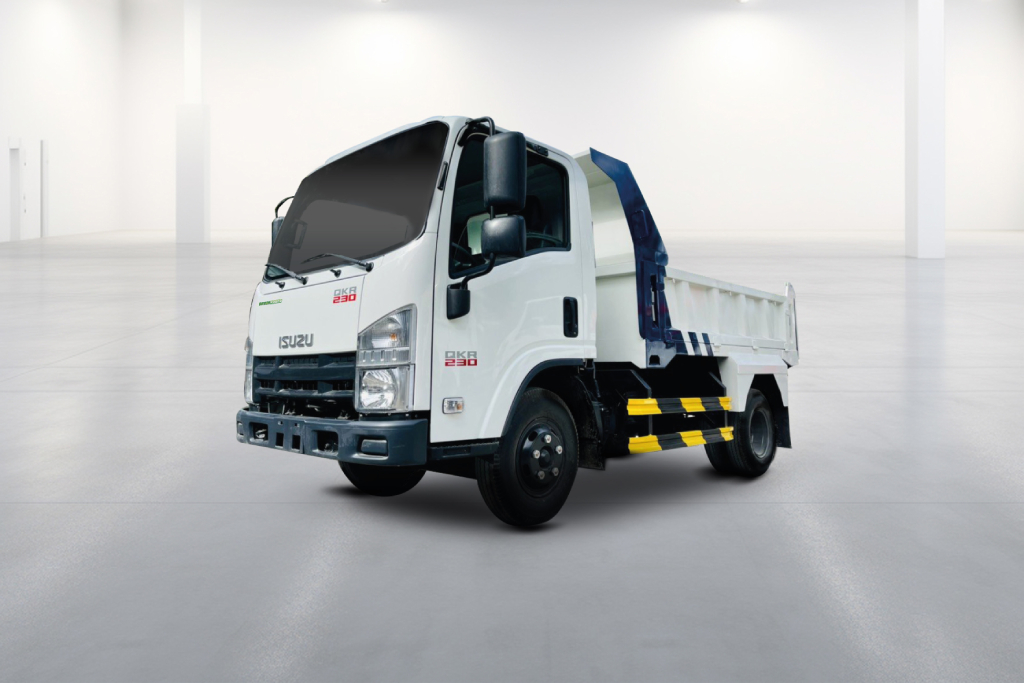

QKR - QLR77FE4 (4x2)
FVR34LE4 (4x2)
FVZ34QE4 (6 x 4)
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 5000 x 1960 x 2300 |
| wheelbase | mm | 2765 |
| Gross vehicle weight | kg | 4990 |
| Payload | kg | 1990 |
| Engine | 4JH1E4NC | |
| Engine type | 4 stroke, In-line 4 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 2999 |
| Max Output | Ps(kW)/rpm | 105(77) / 3200 |
| Max Torque | N.m(kgf.m)/rpm | 230(23) / 1400~3200 |
| Tire size (Front / Rear) | 7.00-15 12PR | |
| S Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | 2,5 m3 | |
| Rear body structure | Reinforce panel outside rear body wall | |
| Material | alloy steel | |
| Tailgate | 01 tailgate, open/close automatically when lifting rear body | |
| Rear body lift control | Manual, control lever inside cabin | |
| Hydraulic system | Imported | |
| MAIN SPECIFICATIONS | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 6790 x 2485 x 2970 |
| wheelbase | mm | 4300 |
| Gross vehicle weight | kg | 16000 |
| Payload | kg | 8150 |
| Engine | 6HK1E4NC | |
| Engine type | 4 stroke, In-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 241(177) / 2400 |
| Max Torque | N.m(kgf.m)/rpm | 706(72) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | 6,7 m3 | |
| Rear body structure | Reinforce panel outside rear body wall | |
| Material | alloy steel | |
| Tailgate | 01 tailgate, open/close automatically when lifting rear body | |
| Rear body lift control | Manual, control lever inside cabin | |
| Hydraulic system | Imported | |
| BASIC SPECIFICATION | ||
|---|---|---|
| Overall OAL x OW x OH | mm | 7750 x 2485 x 3060 |
| Wheelbase | mm | 4115 + 1370 |
| GVW | KG | 24000 |
| Payload | KG | 13150 |
| Engine | 6HK1E4SC | |
| Engine type | 4 stroke, in-line 6 cylinders Common rail, turbo-intercooler | |
| Displacement | cc | 7790 |
| Max Output | Ps(kW)/rpm | 280(206) / 2400 |
| Max Torque | N.m(kgf.m)/rpm | 882(90) / 1450 |
| Tire size (Front / Rear) | 11.00R20 / 11.00R20 | |
| Seating Capacity | person | 3 |
| SPECIALIZED SYSTEM | ||
| Rear body displacement | 10,67 m3 | |
| Rear body structure | Reinforce panel outside rear body wall | |
| Material | Alloy steel | |
| Tailgate | 1 tailgate, open/close automatically when lifting rear body | |
| Rear body lift control | Manual, control lever inside cabin | |
| Hydraulic system | Imported | |
